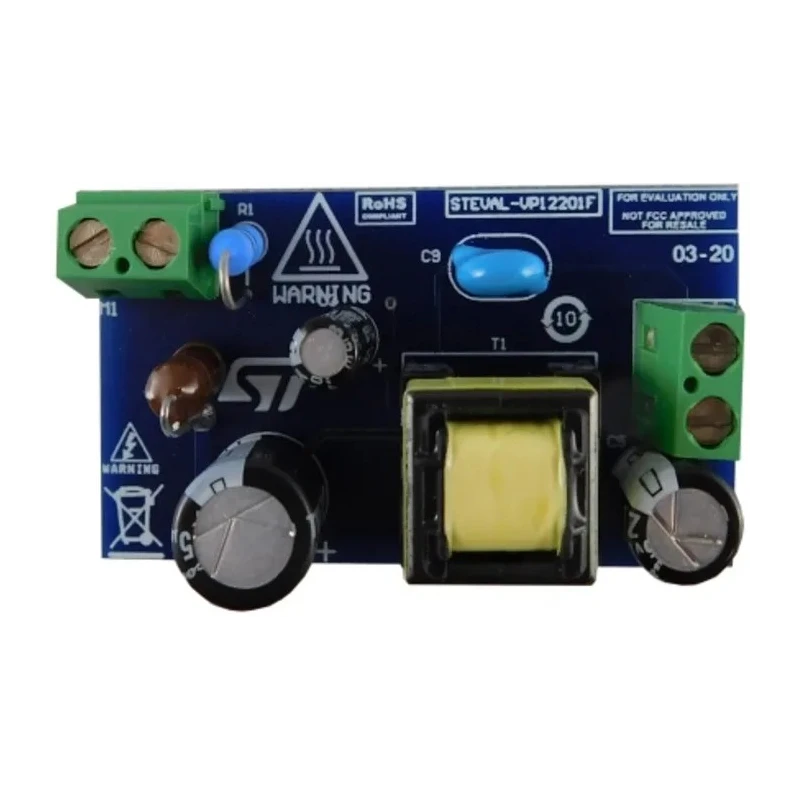

STMicroelectronics STEVAL-VP12201F 12 V 5 W Isolated Flyback Converter Evaluation Kit, VIPer122LS, 85 - 265 VAC, 416 mA Output
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 50-60Hz |
| Brand | STMicroelectronics |
| Model | STEVAL-VP12201F |
| Output Current | 416 mA |
| Output Voltage | 12 V |
| For Use With | General purpose applications supplied from 85 to 265 VAC |
| Standards/Approvals | RoHS Compliant, Meets IEC55022 Class B conducted EMI |
| Kit Classification | Evaluation Kit |
| Featured Device | STEVAL |
| Kit Name | 12 V-5 W isolated flyback converter based on VIPer122LS |
| Universal input mains range | 85 - 265 VAC |
Key Features
- Designed for 12 V output at 5 W power level.
- Operates on universal mains input from 85 to 265 VAC.
- Based on VIPer122LS high-voltage converter with integrated 730 V Power MOSFET.
- Outputs up to 416 mA current for reliable device supply.
- Provides tight line and load regulation across the input and output range.
- Features burst mode for ultra-low standby consumption below 30 mW at 230 VAC.
- Meets IEC55022 Class B conducted EMI requirements with reduced EMI filter.
- Compact form factor ensures minimal BOM and ease of integration.
Product Description
STMicroelectronics STEVAL-VP12201F is an advanced flyback converter evaluation kit designed for general purpose power conversion and electronics development. The board implements a 12 V, 5 W isolated flyback topology based on the VIPer122LS offline high-voltage converter, offering a universal input range from 85 to 265 VAC and supporting output currents up to 416 mA.
The VIPer122LS incorporates a 730 V Power MOSFET and current-mode PWM control for high efficiency and stable operation. With a fixed switching frequency of 60 kHz and frequency jittering, the board effectively minimizes electromagnetic disturbances and meets stringent EMI standards, including IEC55022 Class B.
Key features of the STEVAL-VP12201F include tight regulation across line and load variation, ultra-low standby mains consumption (.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation kit provides a 12 V output with a power level of 5 W.
It operates on a universal input range from 85 to 265 VAC.
The maximum output current is 416 mA.
The device operates at a fixed switching frequency of 60 kHz and supports a mains frequency of 50-60Hz.
It is designed for general purpose applications supplied from 85 to 265 VAC.
It is RoHS compliant and meets IEC55022 Class B conducted EMI requirements.
Yes, it features burst mode for ultra-low standby consumption below 30 mW at 230 VAC.
The country of origin is India.
The VIPer122LS is a high-voltage converter that incorporates a 730 V Power MOSFET, enabling efficient and stable operation.
The compact form factor ensures minimal bill of materials (BOM) and ease of integration into various applications.
It minimizes electromagnetic disturbances through current-mode PWM control and frequency jittering.
This kit is classified as an evaluation kit for isolated flyback converters.
