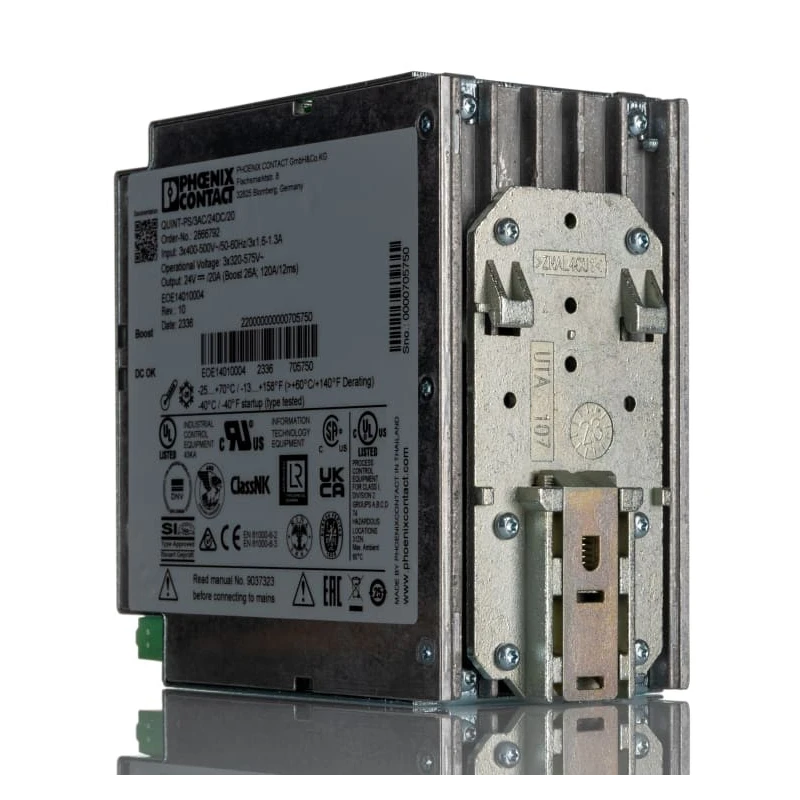

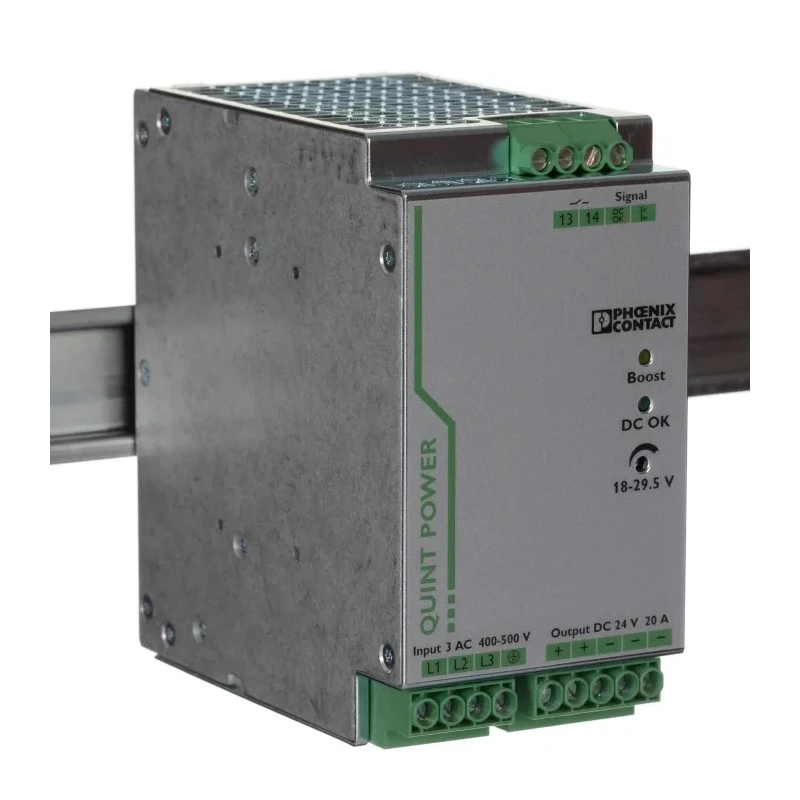

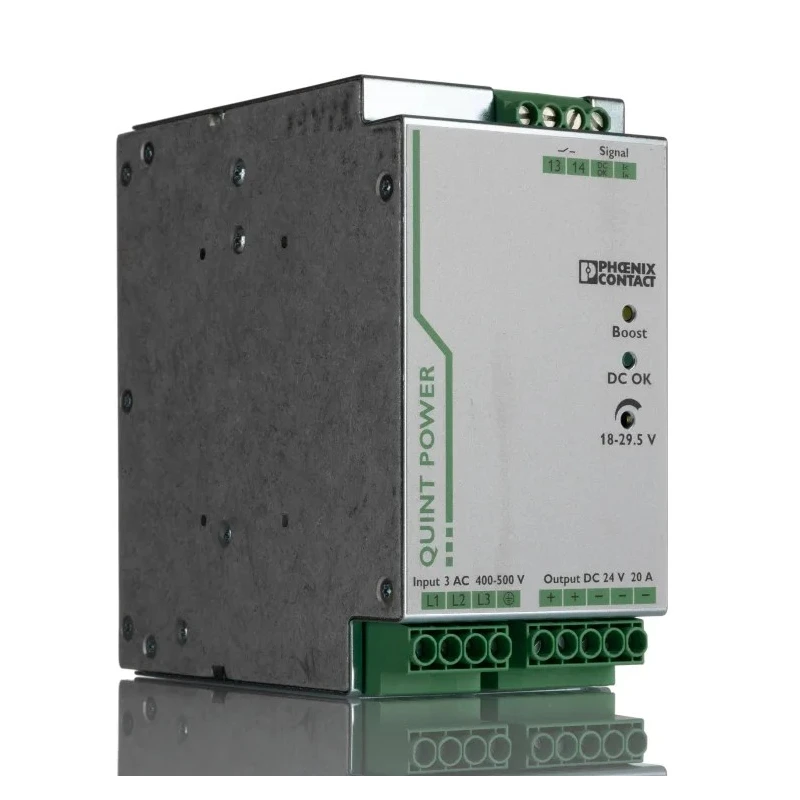

Phoenix Contact QUINT POWER DIN Rail Switched Mode Power Supply, 3-Phase, AC Input 320 - 575V, 29.5V DC Output, 20A 2866792
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 480W |
| Efficiency | 93% |
| Height | 130mm |
| Model | 2866792 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 69mm |
| Series | QUINT POWER |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 575V ac |
| Electrical Phase | 3 |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 320V ac |
Key Features
- Provides a regulated DC output voltage up to 29.5V at a maximum current of 20A.
- Operates with a wide AC input range from 320V to 575V and supports 3-phase power.
- Delivers high efficiency up to 93%, minimizing energy loss and heat generation.
- Features output voltage adjustment from 18V to 29.5V to suit various equipment needs.
- Incorporates preventative function monitoring with POWERBOOST static reserve for difficult load ramp-up.
- Allows parallel or series connection for expanded or redundant operation.
- IP20 enclosure and compact footprint (130×69×130 mm) suitable for electrical panels.
- Certified to EN standards for electromagnetic compatibility and safety.
Product Description
Phoenix Contact presents the QUINT POWER switched mode DIN Rail Power Supply, model 2866792. This advanced power supply is ideal for industrial automation, control systems, and factory equipment where reliable DC power is essential. Designed for mounting on DIN rails, the unit supports 3-phase AC inputs from 320V to 575V and provides a regulated DC output of up to 29.5V with a maximum continuous current of 20A and total 480W power capacity.
The QUINT POWER's innovative switched mode technology ensures efficient energy conversion, with typical efficiencies rated up to 93%. This minimizes heat buildup and reduces cooling requirements, making installation and maintenance simpler. The adjustable output enables tailored voltage settings from 18V to 29.5V DC to match diverse device requirements.
Safety is enhanced through 4kV isolation and robust IP20 construction. Preventative function monitoring detects critical states early, alerting operators to potential system issues. POWERBOOST static reserve increases starting power for loads like industrial motors, improving operational stability during peak demand. Clear-color LED indicators provide at-a-glance system status for maintenance teams.
Engineering flexibility is supported by the ability to connect units in parallel or series, enabling scalable solutions for larger installations or redundancy. Screw connections ensure secure electrical links. The device's compact dimensions (height 130mm, width 69mm, depth 130mm) allow for straightforward integration into electrical cabinets.
The QUINT POWER 2866792 is certified to EN 61000-4-6, EN 61000-4-4, EN 61000-4-2, and EN 61000-6-3 standards, verifying electromagnetic compatibility and safety for professional use. Operating temperatures span from -25°C to +70°C to accommodate harsh industrial environments. With a country of origin listed as Thailand, the product is trusted globally in demanding automation applications.
Use cases include powering PLCs, control relays, sensors, industrial machinery, data acquisition devices, and supporting critical process control infrastructure. Its high reliability and wide input/output range make it ideal for manufacturing, utilities, building automation, and process industries.
Browse more DIN rail power supplies and Phoenix Contact solutions on EnvMart to discover advanced industrial power conversion technology for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated DC output voltage adjustable from 18V to 29.5V.
The maximum continuous current output is 20A.
It operates with a wide AC input range from 320V to 575V.
The dimensions are 130mm in height, 69mm in width, and 130mm in depth.
It has a high efficiency rating of up to 93%.
The power supply has an IP20 enclosure rating.
It can operate in temperatures ranging from -25°C to +70°C.
It supports a 3-phase electrical input.
Yes, it allows for parallel or series connections for expanded or redundant operation.
It is certified to EN standards for electromagnetic compatibility and safety, including EN 61000-4-6, EN 61000-4-4, EN 61000-4-2, and EN 61000-6-3.
The country of origin for this model is Thailand.
