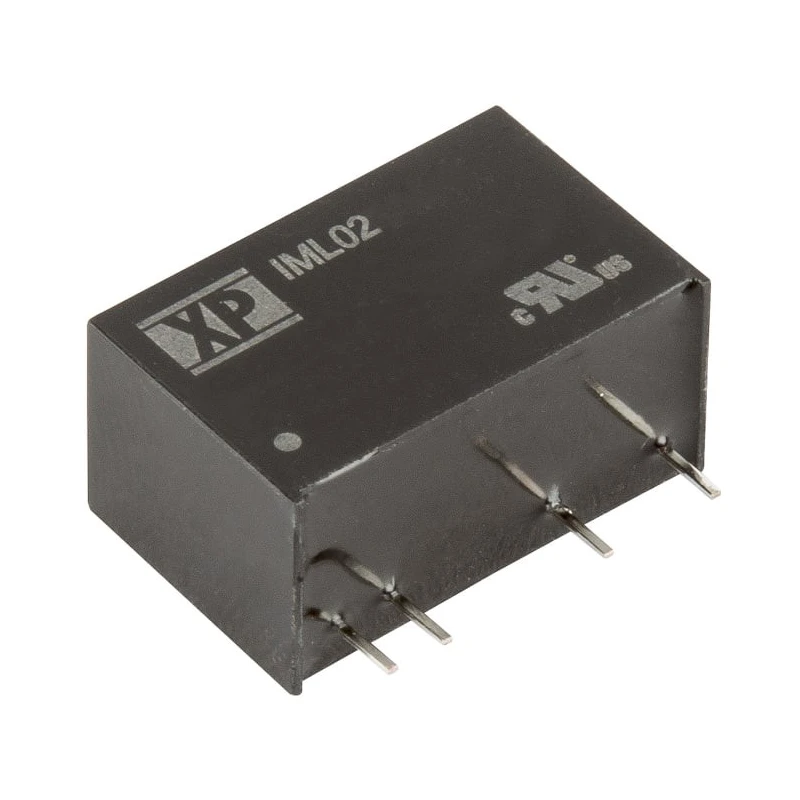

XP Power Isolated DC-DC Converter 3.3V DC 300mA 2W, 26.4V Max Input, 21.6V Min Input, 7-Pin SIP Package, Through Hole IML02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IML02 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IML02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Standards/Approvals | Compliant with industrial and medical standards |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 300mA |
| Output Voltage Adjustment Range | ±5 V |
| Isolation Voltage | 4kV ac |
Key Features
- Isolated DC-DC converter with 4000V AC isolation and 1 x MOPP safety classification.
- Provides 3.3V DC regulated output up to 300mA and a total output power of 2W.
- Accepts 21.6V to 26.4V DC input voltage for flexibility in supply conditions.
- Supplied in a 7-pin SIP through-hole package for simple PCB mounting.
- High energy efficiency at 77% for demanding continuous use.
- Wide operating temperature range from -40°C to +85°C ensures robust performance.
- MTBF of 2,500,000 hours for long-term reliability in critical applications.
- Suitable for industrial, instrumentation, medical, and laboratory systems.
Product Description
The XP Power IML0224D03 is an isolated DC-DC converter engineered for demanding power conversion applications in industrial, automation, instrumentation, and medical electronics. This model provides a regulated 3.3V DC output with a maximum current capacity of 300mA, delivering up to 2W output power.
Featuring a wide input voltage range of 21.6V to 26.4V DC, the converter is versatile enough to accommodate typical supply fluctuations in process control, test, and measurement systems. The output is strictly regulated for reliable operation of sensitive electronics.
The device comes in a compact SIP7 (Single Inline Package) with 7 pins and is intended for through-hole mounting, enabling straightforward installation on standard PCBs. Its compact package helps save board space in densely populated designs.
A key highlight of this model is its reinforced isolation: it offers 4000V AC isolation voltage, providing outstanding safety and signal separation, and meeting 1 x MOPP (Means of Patient Protection) at 250V AC. This makes it suitable for medical, industrial, and laboratory use cases requiring rigorous compliance with international standards and enhanced personnel and equipment safety.
Efficiency is rated at a robust 77%, minimizing power losses and thermal buildup in environments with prolonged operation. The IML0224D03 model guarantees reliable performance in extreme conditions, thanks to its wide operating temperature range from -40°C to +85°C. Its extremely high calculated Mean Time Between Failures (MTBF) of 2,500,000 hours reflects the robust, reliable component selection and manufacturing.
The XP Power IML0224D03 DC-DC converter is ideal for use in industrial control systems, building automation, test and measurement equipment, data communication, medical instrumentation, and wherever high isolation and reliability are required. It is designed to support easy integration in both new designs and system upgrades.
For more isolated DC-DC converter models, explore further solutions in the DC-DC Converter category from XP Power and other leading brands available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 3.3V DC with a maximum current capacity of 300mA, delivering a total output power of 2W.
It accepts a wide input voltage range from 21.6V to 26.4V DC, allowing flexibility in supply conditions.
The device features an isolation voltage of 4000V AC, providing enhanced safety and signal separation.
The dimensions of this model are 19.5mm in length, 12.5mm in depth, and 9.8mm in width.
It has an efficiency rating of 77%, which helps minimize power losses during operation.
The operating temperature range for this model is from -40°C to +85°C, ensuring reliable performance in extreme conditions.
This converter is designed for through-hole mounting in a 7-pin SIP package, facilitating easy installation on standard PCBs.
It is suitable for use in industrial control systems, building automation, test and measurement equipment, and medical instrumentation.
The Mean Time Between Failures (MTBF) for the IML02 is 2,500,000 hours, indicating long-term reliability in critical applications.
This model is compliant with industrial and medical standards, ensuring it meets rigorous safety and performance criteria.
The IML02 features 2 outputs, providing versatility for various applications.
The output voltage adjustment range for this converter is ±5 V, allowing for some flexibility in output voltage settings.
