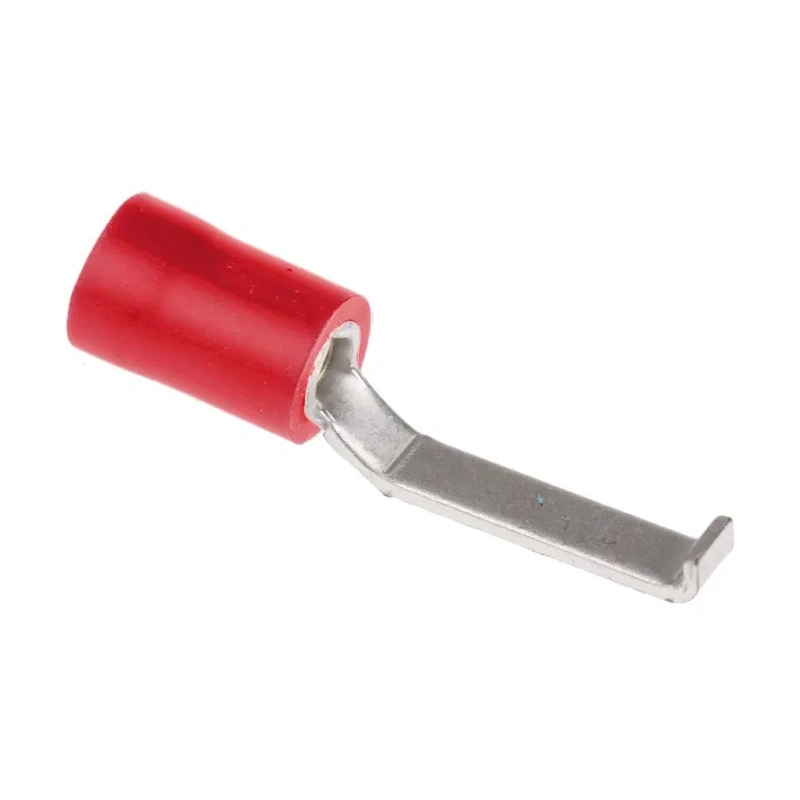

RS PRO Hooked Insulated Crimp Blade Terminal, Vinyl, 17.1 mm Blade Length, 22–16 AWG, Red 534-373

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Hooked Insulated Crimp Blade Terminal, Vinyl, 17.1 mm Blade Length, 22 - 16 AWG, Red 534-373

Name: RS PRO Hooked Insulated Crimp Blade Terminal, Vinyl, 17.1 mm Blade Length, 22 - 16 AWG, Red 534-373
Brand: RS PRO
SKU: 88568
Price: 0.11 USD
Availability: InStock



Category Blade Terminal Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Colour	Red
Model	534-373
Gender	Male
Insulation	Insulated
Overall Length	27.2mm
Contact Material	Copper
Blade Length	17.1mm
Insulation Material	Vinyl
Inside Diameter	4.1mm
Blade Width	3.1mm
Blade Thickness	0.8mm
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Shrouded	Unshrouded
CRIMP CONN HOOK BLADEBrand	NEUTRAL

Key Features

Provides secure crimp connection with hooked blade design.
Vinyl insulation for enhanced vibration and abrasion protection.
Compatible with wire sizes from 22 AWG to 16 AWG, supporting a range of installations.
Made with copper contacts and tin plating for reliable conductivity.
Male terminal type suitable for quick assembly without soldering.
Unshrouded for easy wire entry and termination.
Red colour coding for wire range identification.
Designed for industrial, commercial, and panel wiring use.

Product Description

RS PRO 534-373 Hooked Insulated Crimp Blade Terminal is engineered for versatile and secure wire termination applications. Featuring a 17.1 mm blade length and accommodating wire sizes from 22 AWG to 16 AWG, this terminal ensures reliable connectivity for a range of low-voltage and control circuits.

The hooked blade provides a firm mechanical grip, facilitating robust crimping and preventing accidental disconnection. The insulation is constructed from durable vinyl, offering resistance to vibration and abrasion while protecting the conductor during operation. Its red colour coding simplifies identification during wiring and maintenance tasks.

This crimp blade terminal is made with copper contact material and finished with tin plating, guaranteeing optimal electrical conductivity and corrosion resistance, suitable for long-term installations. The male terminal configuration allows for straightforward insertion and assembly in connector blocks or wiring panels.

Installation is quick and convenient, as the terminal is designed for crimping without soldering. It is unshrouded to allow easy wire access and termination. The inside diameter of 4.1 mm and blade width of 3.1 mm, together with blade thickness of 0.8 mm and overall length of 27.2 mm, ensure compatibility with standard connection interfaces.

Typical applications include industrial control panels, electrical junction boxes, machinery wiring, HVAC systems, automotive harnesses, and commercial electrical installations where secure and insulated connections are essential.
