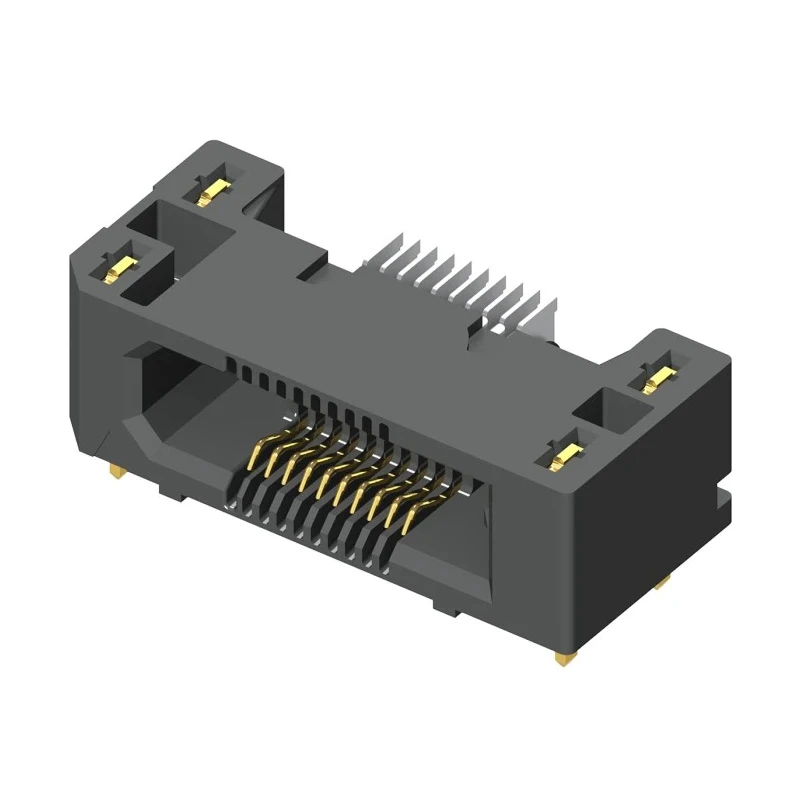

Samtec ERF5 Series Right Angle Surface PCB Socket, 40-Contact, 2 Row, 0.5 mm Pitch, Solder, Liquid Crystal Polymer Body
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 1.6A |
| Model | ERF5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | ERF5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Stacking Height | 12mm |
Key Features
- Features 40 contacts organized in 2 rows for robust connections.
- 0.5 mm pitch supports high-density mounting on PCB.
- Right angle surface mount for efficient space utilization.
- Liquid crystal polymer housing offers superior durability.
- Solder termination ensures secure mechanical and electrical contact.
- Rated for 194V and 1.6A, suitable for advanced electronic systems.
- Gold-plated beryllium copper contacts for optimal conductivity.
- Wide operating temperature range from -55°C to 125°C.
Product Description
The Samtec ERF5-020-01-L-D-RA-TR is a high-performance right angle surface PCB socket engineered for advanced board-to-board interconnections in electronic designs. With 40 contacts distributed across two rows and a fine 0.5 mm pitch, this connector is optimized for high-speed signal transmission and dense PCB layouts.
This socket features rugged Edge Rate contacts with a smooth milled surface, minimizing contact wear and extending lifespan. The right angle surface mount configuration maximizes PCB real estate, making it a preferred choice in compact devices and modular electronics. The housing, constructed from liquid crystal polymer, delivers exceptional mechanical strength and thermal stability.
Gold-plated beryllium copper contacts promote high signal integrity and electrical performance, supporting data rates up to 28 Gbit/s. The solder termination simplifies installation and ensures dependable electrical connectivity. With a stacking height of 12 mm, the ERF5 series sockets mate seamlessly with ERM5 series headers, enabling versatile mating heights from 7 mm to 12 mm.
Capable of handling voltage ratings up to 194V and currents of 1.6A, this connector is suitable for demanding industrial, telecommunications, and embedded systems applications. It operates reliably in extreme environments thanks to its wide temperature range from -55°C to 125°C.
This product is widely used in electronics manufacturing, laboratory equipment, test and measurement systems, and signal-intensive board-to-board applications. 40 contacts (2 rows) with 0.5 mm pitch for dense, high-speed signal routing.
Rugged gold-plated Edge Rate contacts for improved wear, electrical performance, and signal integrity. Liquid crystal polymer housing for high durability and thermal resistance. Suitable for surface mount installation and right angle orientation on PCBs.
Stacking height of 12 mm accommodates a range of mating configurations. Wide temperature range (-55°C to 125°C) for robust environmental adaptability. 1.6A current rating and 194V voltage handling for advanced electronic systems.
Compatible with ERM5 series headers for flexible mating heights. Explore more PCB Sockets and high-speed connectors from Samtec and discover advanced solutions for electronic integration at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB socket are organized with a pitch of 0.5 mm, allowing for high-density mounting on the PCB.
This model can operate at a maximum temperature of 125°C, making it suitable for use in high-temperature environments.
The Samtec ERF5 series socket features 40 contacts arranged in 2 rows.
This PCB socket has a current rating of 1.6A, which is suitable for various electronic applications.
The connector uses a solder termination type, ensuring secure mechanical and electrical contact.
The housing is constructed from liquid crystal polymer, which provides high durability and thermal stability.
The stacking height of this model is 12 mm, accommodating a range of mating configurations.
This connector is rated for a voltage of up to 194V, making it suitable for advanced electronic systems.
This PCB socket is suitable for demanding industrial, telecommunications, and embedded systems applications.
The contacts are made from gold-plated beryllium copper alloy, which promotes high signal integrity and electrical performance.
This PCB socket features a right angle orientation, optimizing space utilization on the PCB.
Yes, this model is compatible with ERM5 series headers, allowing for flexible mating heights.
