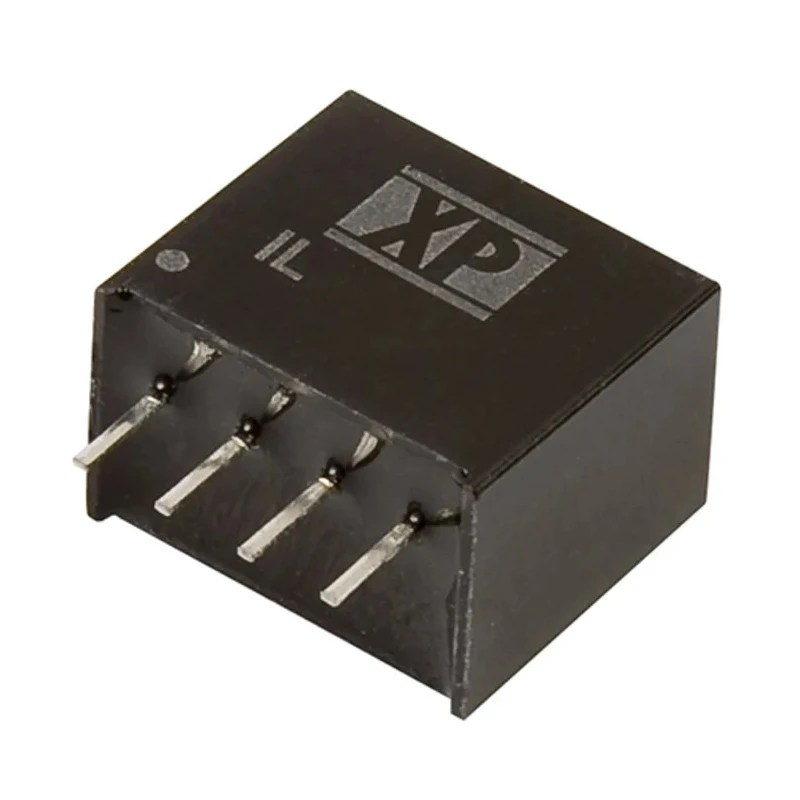

XP Power IL DC/DC Converter Through Hole, 9V DC Output, 220mA, 5.5V/4.5V Input, 2W, SIP Package, IL0509S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IL DC/DC Converter, 9V dc/ 220 mA, 5 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 11.68mm |
| Model | IL0509S |
| Depth | 10.16mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -20°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 220mA |
| Isolation Voltage | 1kV dc |
Key Features
- Single output DC-DC converter with 9V DC output and 220mA current.
- Supports input voltages of 5.5V DC maximum and 4.5V DC minimum.
- Through hole mounting for easy PCB integration.
- Compact SIP package with 4 pins for streamlined installation.
- Delivers up to 2W power output and offers 1kV isolation voltage.
- High reliability with MTBF of 1,210,000 hours.
- Operates in a wide temperature range from -20°C to 100°C.
- 80% efficiency for energy-saving performance.
Product Description
XP Power IL0509S is a robust DC/DC converter designed for applications requiring a stable 9V DC output at up to 220mA from an input voltage range of 4.5V to 5.5V DC. Housed in a compact industry-standard SIP package with four pins, it is suitable for through hole mounting on PCBs. This module provides reliable isolated power conversion with up to 2W output power and 1kV isolation voltage, ensuring safe operation and protecting sensitive circuits.
Featuring high efficiency at 80%, this converter minimizes energy losses and operates reliably in demanding environments with an operating temperature range from -20°C to 100°C. Its long mean time between failures (MTBF) of over 1.21 million hours underscores exceptional durability, making it ideal for mission-critical applications in industrial automation, instrumentation, Power Supplies, and embedded electronics.
The IL0509S DC/DC converter is suitable for single output devices, supporting a wide variety of uses such as powering microcontrollers, sensors, and other low-voltage components that require isolated power. The SIP package format allows for streamlined integration into space-constrained designs, and through hole mounting facilitates quick assembly in production and prototyping.
The device's isolation voltage of 1kV enhances system reliability and safety, especially when separating power domains. Designed with compact dimensions (11.68mm length, 7.5mm width, 10.16mm depth), the product fits well into densely populated circuit boards and embedded systems.
Its 80% efficiency, single output, and broad temperature range make it a versatile choice for applications encountered in industrial, laboratory, automation, manufacturing, embedded systems, and power supply subsystems.
The converter also meets general robust requirements for safety and compatibility, featuring a SIP package and proven XP Power reliability. It is suitable for devices where space, efficiency, and high reliability are critical, including power distribution units, signal isolators, and compact control circuits.
Explore related DC-DC Converters in the XP Power range for matching technical requirements and extended functionality in industrial, manufacturing, and automation environments via EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IL0509S provides a stable output voltage of 9V DC with a maximum output current of 220mA.
This model supports an input voltage range from 4.5V DC minimum to 5.5V DC maximum.
The maximum output power of this converter is 2W.
The efficiency of this model is rated at 80%.
The IL0509S offers an isolation voltage of 1kV DC, enhancing safety and reliability.
This converter has dimensions of 11.68mm in length, 7.5mm in width, and 10.16mm in depth.
The operating temperature range for the IL0509S is from -20°C to 100°C.
This converter is designed for through hole mounting, making it suitable for PCB integration.
The IL0509S has a mean time between failures (MTBF) of 1,210,000 hours.
This model features a single output channel.
The IL0509S is housed in a compact SIP package with four pins.
This DC/DC converter is suitable for applications such as powering microcontrollers, sensors, and other low-voltage components requiring isolated power.
