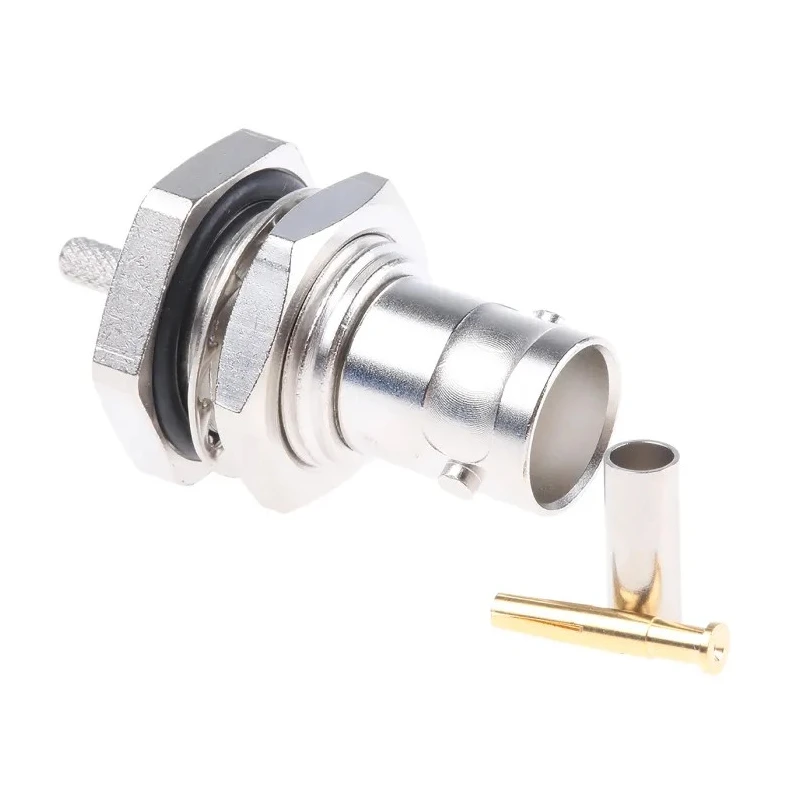

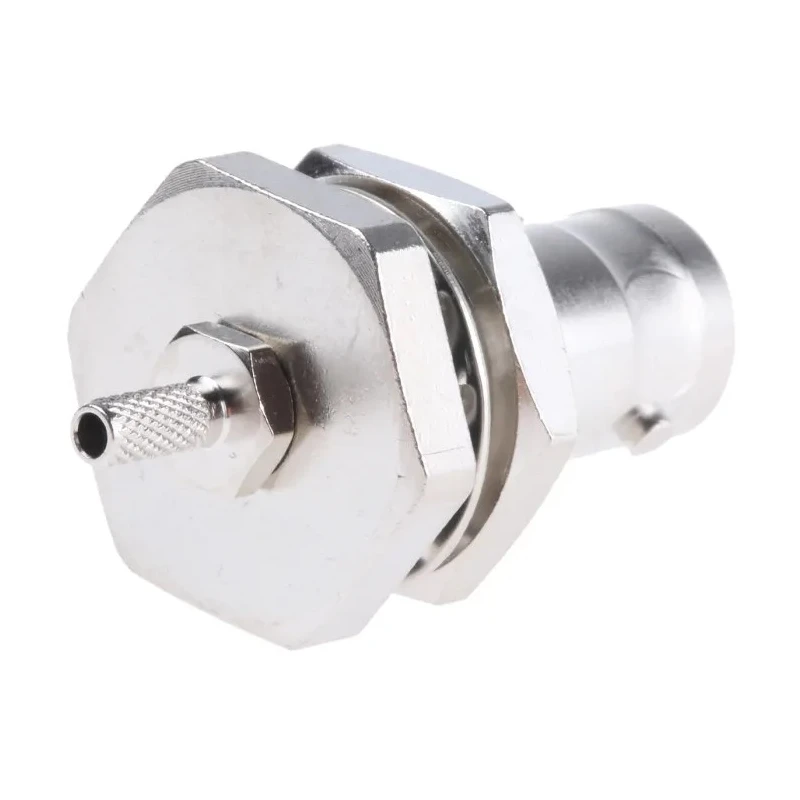

Telegartner BNC Series Coaxial Connector Panel Mount Female, 50 Ω, Straight Body Crimp J01001C0028

Telegartner J01001C0028 BNC Series Coaxial Connector is a high-performance panel mount female connector engineered for reliable signal, data, and video transmission tasks. Designed with a straight body and crimp termination, this connector ensures a secure and robust connection for RG316/U coaxial cables. Its 50 Ω impedance makes it suitable for a wide range of RF applications requiring precise electrical performance.

The connector features gold-plated beryllium copper contacts for superior conductivity and low signal loss, paired with a durable nickel-plated body for excellent corrosion resistance. Operating reliably across a broad temperature range from -65°C to 165°C, this BNC connector is versatile for laboratory, broadcasting, networking, and industrial communication environments. Its bulkhead design supports panel integration for equipment housings and chassis.

The bayonet coupling mechanism allows for quick and easy connection and disconnection while maintaining IP54 rated protection between mated plug and jack, ensuring protection against dust and splashes in industrial settings. The crimp termination delivers a stable mechanical and electrical bond to the cable, minimizing downtime and failure rates in critical installations.

Telegartner J01001C0028 is suited for applications such as signal, data, and video transmission, including instrumentation, measurement systems, broadcast equipment, and data acquisition devices. Its compatibility up to 4 GHz frequency enables use in high-speed communication and measurement systems. The connector supports normal polarity and female contact gender, aligning with standard BNC interface devices.

Industries using this connector include industrial automation, laboratory instrumentation, telecommunications, electronic manufacturing, commercial signal distribution, and broadcast equipment setups. Its durable materials and precise engineering ensure long-lasting performance in demanding technical environments.

Panel mount design enables secure installation in electronic and industrial equipment. Crimp termination ensures robust cable connection and efficient assembly. Gold-plated beryllium copper contacts for excellent signal transmission.

Nickel-plated body provides strong corrosion resistance and longevity. Operates up to 4 GHz, suitable for RF and high-frequency applications. Wide operating temperature range supports industrial and laboratory use. IP54 rated coupling between plug and jack enhances environmental protection.

Ideal for signal, data, and video transmission in commercial and industrial sectors. Explore more industrial Coaxial Connectors and Telegartner BNC solutions in the Electronics & Electricals section on EnvMart.
