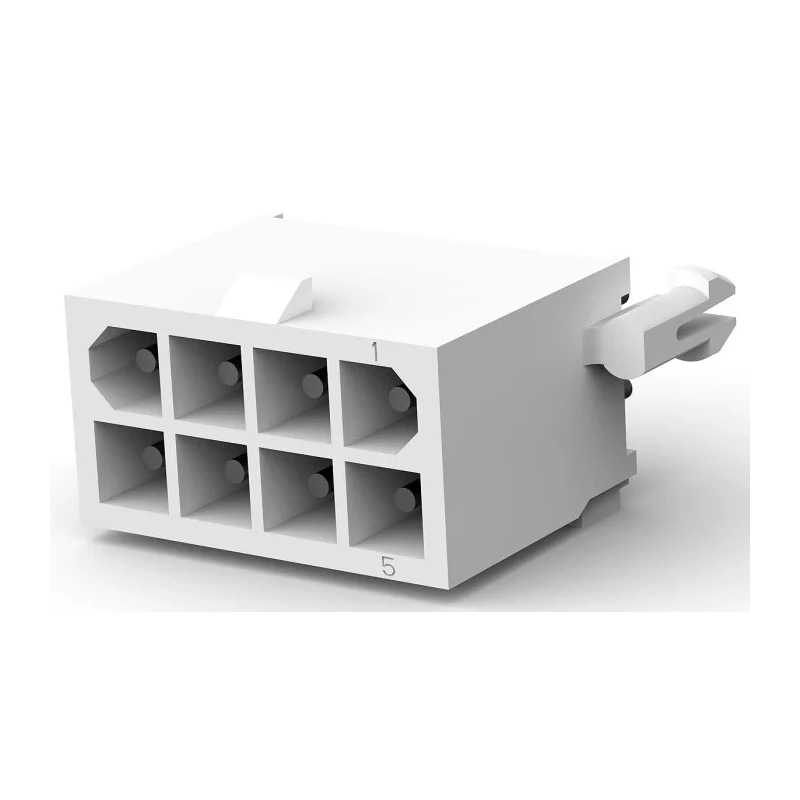

TE Connectivity Mini-Universal MATE-N-LOK PCB Header 8 Contacts 4.14 mm Pitch 2 Row Straight Through Hole 600V 1-794065-0

TE Connectivity's Mini-Universal MATE-N-LOK PCB Header, model 1-794065-0, is a high-reliability component designed for secure wire-to-board connections within electronic and industrial control solutions. This vertical mount pin header offers 8 contacts organized in 2 rows, with a 4.14 mm pitch, making it ideal for compact PCB layouts demanding robust power and signal interfacing.

The connector features a shrouded nylon housing that provides mechanical stability and board retention. Its positive locking latch mechanism ensures secure mating, minimizing accidental disconnections in operational environments. The white UL94V-0 nylon material contributes to flame resistance and durability, making it suitable for demanding industrial and commercial applications. Board locks further facilitate easy PCB retention during installation.

Engineered for straight through hole mounting, the header supports solder termination, offering a reliable electrical interconnection for both automated and manual assembly processes. Each of the 8 male contacts is manufactured from brass and finished with tin plating, optimizing conductivity while maintaining resistance to corrosion. The connector is rated for a maximum current of 9.5A and voltage up to 600V, providing flexibility for diverse power requirements.

The tail pin length is 3.69 mm, allowing compatible mating with various plug housings and socket contacts in the Mini-Universal MATE-N-LOK series. The product meets performance expectations in environments ranging from -55°C to 105°C, ensuring stability under fluctuating industrial conditions.

Typical applications include power and signal interfacing in electronic devices, automation panels, instrumentation, PCB assembly, and wire harness manufacturing. The connector's orientation, mounting, and locking mechanisms aid in precise assembly and maintenance within complex systems.

Reliable wire-to-board connectivity with straight through hole PCB header. Shrouded nylon housing ensures mechanical and flame-resistant robustness. Rated 9.5A current and 600V voltage for efficient power distribution. Contains tin-plated brass male contacts for optimal electrical performance.

Operating temperature range from -55°C to 105°C for versatile deployment. Positive latch and board locks provide secure retention and ease of use. Solder termination for stable connection in automated or manual processes.

Suited for industrial controls, electronics, automation, and PCB assembly. For browsing more PCB headers and TE Connectivity connector solutions, explore the Electronics Components and PCB Headers categories on EnvMart.
