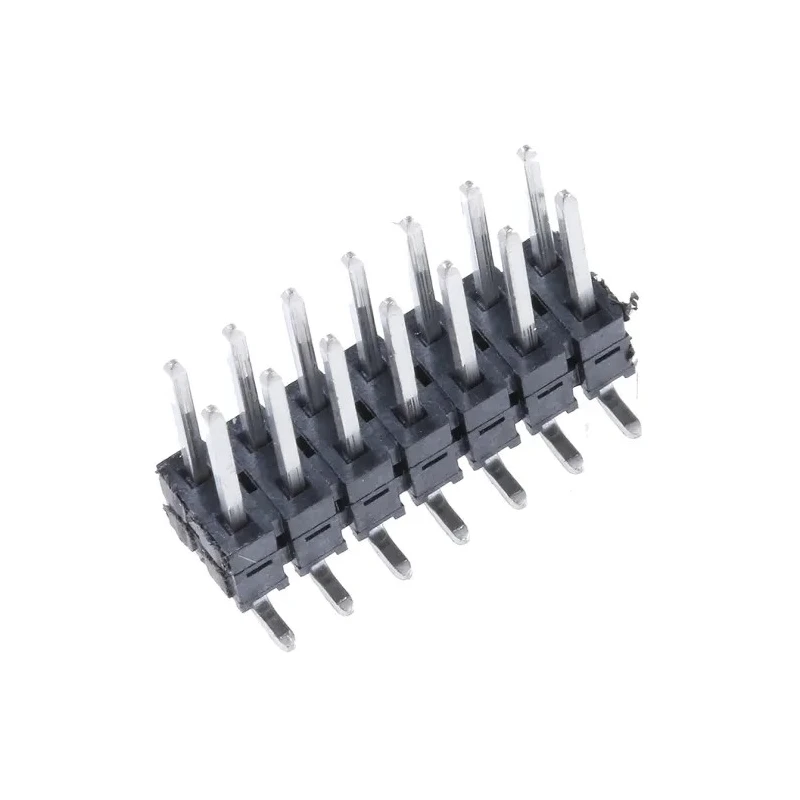

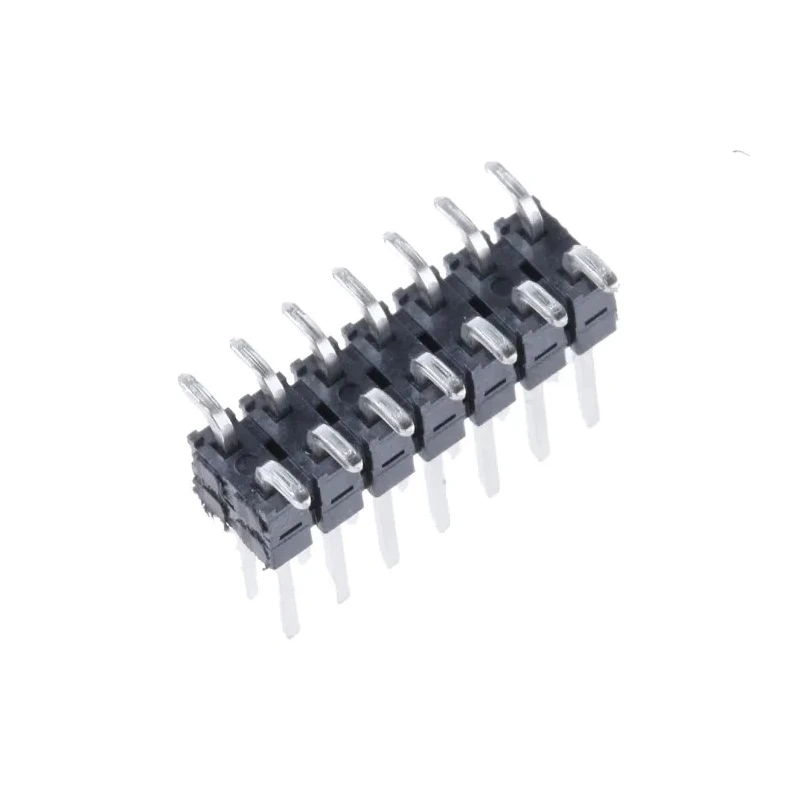

Samtec TW Series Straight Surface Mount Pin Header, 14 Contacts, 2 mm Pitch, 2 Row, Unshrouded TW-07-09-T-D-170-SM

Samtec TW-07-09-T-D-170-SM is a high-performance straight surface mount pin header designed for demanding electronic and industrial applications. This component is part of the TW Series and is engineered to provide efficient board-to-board or wire-to-board connections where space constraints and signal integrity are critical.

The header features a 2 mm pitch with 14 male contacts, distributed across two rows. Its unshrouded configuration offers flexibility for mating with a variety of connectors, and is particularly suited to elevated board stacking or compact circuit designs.

Manufactured with a robust polymer housing and phosphor bronze, tin-plated contacts, the connector ensures both mechanical durability and electrical reliability, even under challenging operating conditions. The straight orientation and surface mount technology streamline automated PCB assembly processes and contribute to reliable long-term performance.

Rated for currents up to 3 A per contact, the header fits signal and low power applications across sectors such as Industrial Automation, Laboratory Electronics, Embedded Systems, and Commercial Device Manufacturing. Its wide operating temperature range from -55°C to 125°C enables use in environments with thermal fluctuations.

The TW-07-09-T-D-170-SM is suitable for elevated board stacking, offering up to 8 Gbps performance in high-density electronic layouts. Termination is by solder, ensuring a secure and lasting connection.

Typical use cases include: Industrial control units, PLCs, sensor interface boards, laboratory instrumentation, manufacturing and prototyping kits, and any PCB assembly requiring reliable, high-density terminal points.
