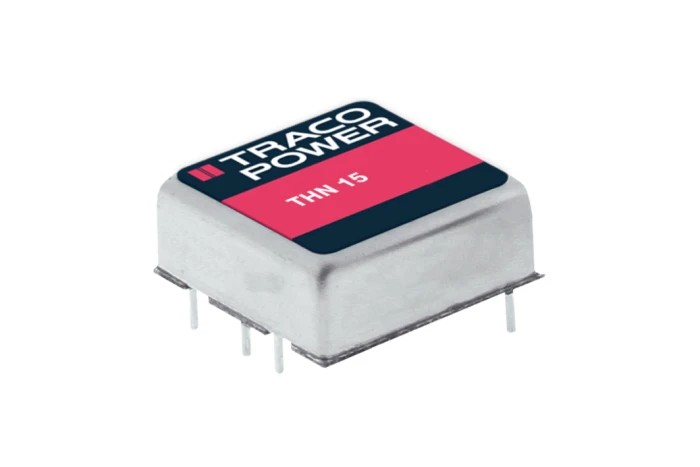

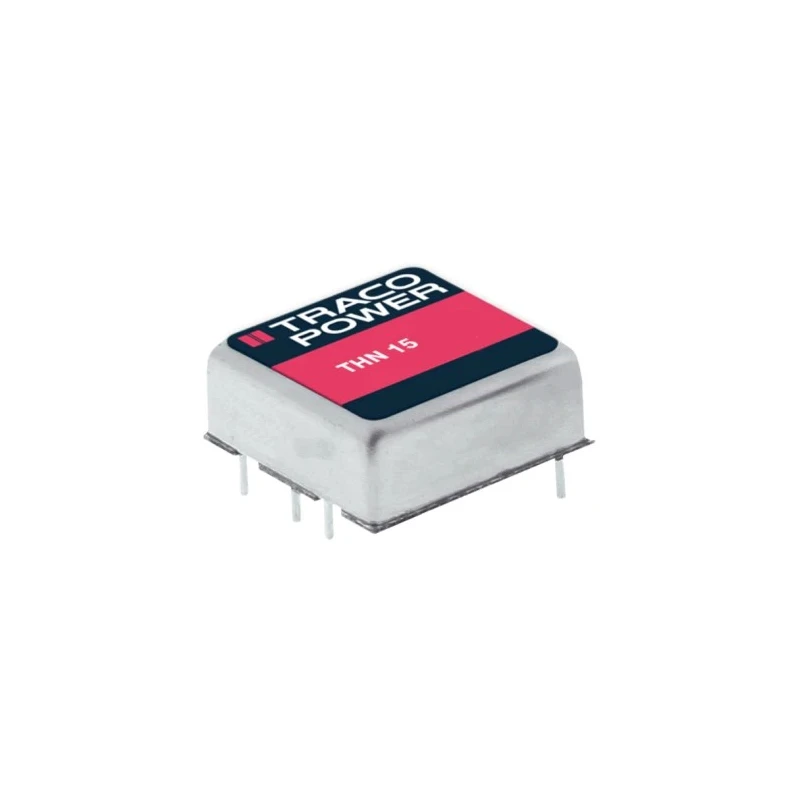

TRACOPOWER DC/DC Converter 15V DC 1A Through Hole, 18-36V DC Input, 15W Output, 85°C Max, THN 15-2413
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 15 DC/DC Converter, 15V dc/ 1 A, 36 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 25.4mm |
| Model | THN 15-2413 |
| Depth | 9.9mm |
| Mount Type | Through Hole |
| Series | THN 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case with Insulated Baseplate |
| Minimum Operating Temperature | -40°C |
| Baseplate | Insulated |
| MTBF | 1600000h |
| Number of outputs | 1 |
| Ripple and Noise | Low |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
| THN 15-12xx | see stock number 745-1196 |
Key Features
- Provides regulated 15V DC output with a maximum current of 1A.
- Wide 18V to 36V DC input range supports varied power supplies.

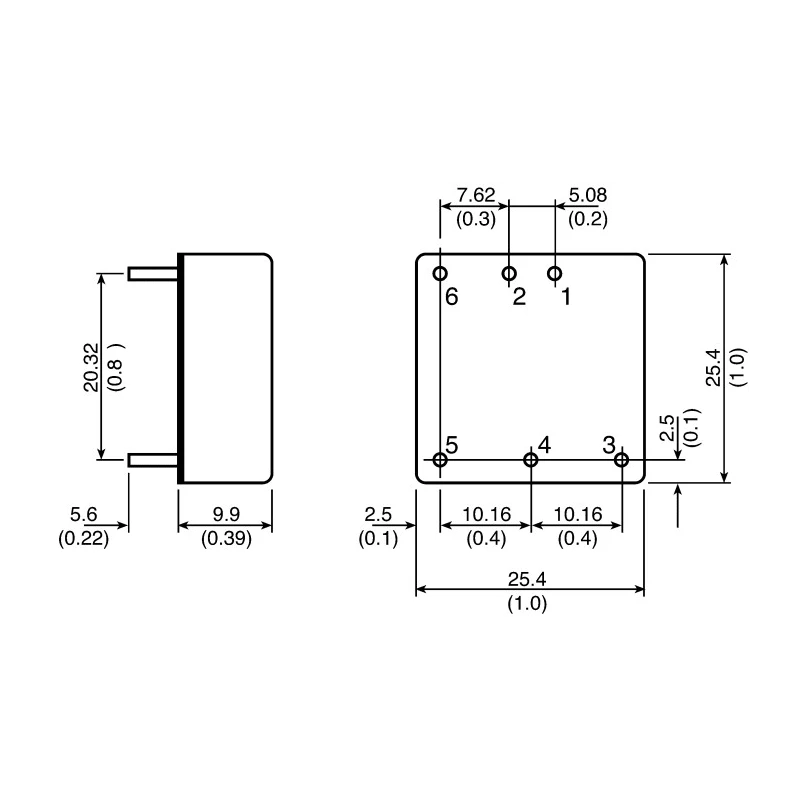

- Designed for through-hole mounting with a compact 25.4 x 25.4 x 9.9 mm metal shielded case.
- Delivers up to 15W output power for industrial and mobile equipment applications.
- High efficiency up to 88% enables operation from -40°C to 85°C.
- Offers 1.5kV DC input-to-output isolation for safety and signal integrity.
- Low output ripple and noise, suitable for sensitive electronics.
- Integrated protection against over-voltage, overload, and short circuit.
Product Description
The TRACOPOWER THN 15-2413 DC/DC Converter is a single-output, regulated and isolated converter module engineered to deliver high performance in a remarkably compact form factor. With a regulated 15V DC output up to 1A, and a wide 2:1 input voltage range spanning 18V to 36V DC, this model is ideal for powering sensitive electronic devices in industrial, instrumentation, mobile, and distributed power architecture applications.
Encased in a robust shielded metal case with an insulated baseplate, the converter measures only 25.4 x 25.4 x 9.9 mm, allowing easy integration into compact systems. The through-hole mounting design ensures reliable PCB attachment and heat dissipation. Operation is highly efficient, reaching up to 88%, which supports the permissible maximum output power of 15W across a broad ambient temperature range from -40°C to 85°C (with appropriate derating above 70°C).
This DC/DC converter provides galvanic input-to-output isolation up to 1.5kV DC, which helps safeguard downstream devices and maintain signal integrity. The regulated output voltage is adjustable (typically ±10%) using external resistors, accommodating fine voltage tuning for various end-uses. MTBF is rated at 1,600,000 hours (MIL-HDBK-217F, 25°C), ensuring excellent reliability in field service.
In addition to robust electrical characteristics, this module features low ripple and noise performance, making it suitable for instrumentation or communication electronics. It includes protections against over-voltage, over-load, and short circuit conditions, ensuring safe operation in demanding environments. The remote On/Off function, built-in filter compliant with EN 55022 Class A / FCC Level A (with external capacitor), and standard 6-pin industry pinout further enhance integration flexibility.
Common use cases include powering mobile instrumentation, distributed power systems, industrial control panels, communication systems, and other applications demanding regulated DC power conversion with tight space constraints and high reliability requirements.
The product is assembled in Taiwan, Province of China. Explore more DC-DC Converters in the Converters category or browse TRACOPOWER's advanced power conversion solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 15V DC with a maximum current of 1A.
The input voltage range is wide, spanning from 18V to 36V DC.
The maximum output power is 15W.
It measures 25.4 mm x 25.4 mm x 9.9 mm.
This model is designed for through-hole mounting.
It has an efficiency rating of up to 88%.
The isolation voltage is rated at 1.5kV DC.
It operates within a temperature range of -40°C to 85°C.
It includes protections against over-voltage, overload, and short circuit conditions.
This model features a single output.
It is suitable for powering sensitive electronic devices in industrial, instrumentation, and mobile applications.
