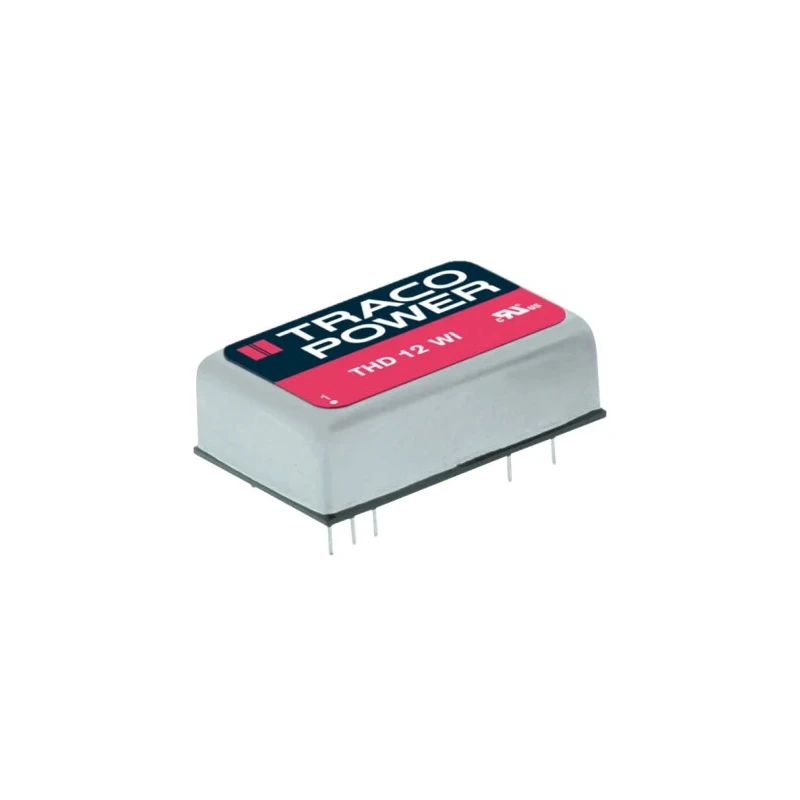

TRACOPOWER DC/DC Converter 3.3V Output, 3.5A, 36V Input, 12W, Through Hole, -40°C to 85°C THD 12-2410WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 31.8mm |
| Model | THD 12-2410WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | THD 12WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Baseplate | Insulated |
| MTBF | 2090000h |
| Number of outputs | 1 |
| Maximum Output Power | 12W |
| Maximum Input Voltage | 36V dc |
| Output Voltage | 3.3 V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 9 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 3.5A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input range |
| High power density | 12W in DIP 24 package |
| Lead Free Design | RoHS compliant |
Key Features
- Isolated DC-DC converter delivering 12W output power in a DIP-24 package.
- Wide input voltage range from 9V to 36V supports diverse applications.
- Provides a single 3.3V output with a steady 3.5A current.
- Through-hole mounting and shielded metal case for robust PCB integration.
- Operating temperature range from -40°C to 85°C ensures reliability in industrial environments.
- High efficiency of up to 84% minimizes energy loss and heat.
- Integrated input and output filters reducing external component requirements.
- Continuous short-circuit protection enhances device safety.
Product Description
The TRACOPOWER THD 12-2410WI is a high-efficiency isolated DC-DC converter designed for demanding industrial, instrumentation, and data communication systems. This converter delivers a regulated 3.3V DC output at up to 3.5A, making it ideal for applications requiring stable power with minimal noise and ripple.
Featuring a wide 4:1 input voltage range from 9V to 36V, the THD 12-2410WI adapts seamlessly to varied supply conditions, which is especially useful in battery-operated devices and installations with fluctuating input voltage. The DIP-24 industry-standard package requires through-hole mounting and integrates a shielded metal case with an insulated baseplate for electromagnetic compatibility and robust PCB integration.
With a maximum output power of 12W, this converter supports single output channel and offers continuous short-circuit protection, overload and overvoltage protection, and remote On/Off capability. Built-in input and output filters minimize external filtering needs, reducing assembly complexity and part counts.
The device operates reliably in a broad temperature range from -40°C to 85°C, making it suitable for harsh environments and ensuring high performance under both extreme cold and heat. Its full SMD design, exclusive use of ceramic capacitors, and high MTBF of 2,090,000 hours contribute to exceptional reliability and extended product lifetime. Electrical isolation rated at 1.5kV DC improves safety and guards sensitive circuits against transient voltages.
The THD 12-2410WI achieves up to 84% efficiency, reducing energy loss and thermal loading. Its ultra-wide input range and lead-free RoHS compliant design meet European and international standards - compliant with UL 60950-1 and IEC/EN 60950-1.
This converter is well-suited to applications in industrial electronics, instrumentation, telecommunication, battery-powered equipment, and other systems with limited space. It meets EN 55022A input filter requirements without external components and features robust protections for reliable operation in mission-critical scenarios.
Browse more DC-DC Converters, industrial power solutions, and TRACOPOWER products in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER THD 12-2410WI provides a regulated output voltage of 3.3V and can deliver a maximum output current of 3.5A.
This converter has a wide input voltage range from 9V to 36V, allowing it to adapt to various supply conditions.
The maximum output power of this model is 12W, making it suitable for applications requiring stable power supply.
The dimensions of the THD 12-2410WI are 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
This model operates reliably within a temperature range of -40°C to 85°C, suitable for harsh industrial environments.
The THD 12-2410WI is designed for through-hole mounting, which is standard for its DIP-24 package type.
Yes, it includes continuous short-circuit protection, overload, and overvoltage protection for enhanced safety during operation.
The THD 12-2410WI achieves an efficiency of up to 84%, minimizing energy loss and thermal loading.
This converter has an electrical isolation rating of 1.5kV DC, which helps protect sensitive circuits from transient voltages.
The unit is RoHS compliant and meets the standards of UL 60950-1 and IEC/EN 60950-1.
It is well-suited for applications in industrial electronics, instrumentation, telecommunication, and battery-powered equipment.
The MTBF for the THD 12-2410WI is rated at 2,090,000 hours, indicating its expected reliability over time.
