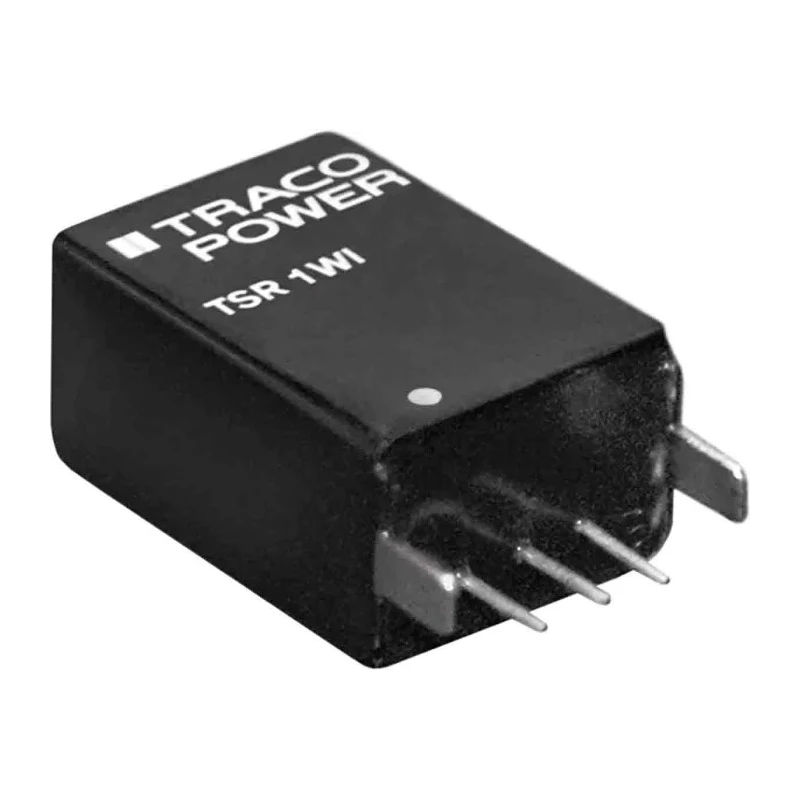

TRACOPOWER Non-Isolated DC-DC Converter, 15V DC Output, 1A Output Current, Through Hole SIP Package TSR 1-48150WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 93% |
| Length | 12.1mm |
| Model | TSR 1-48150WI |
| Depth | 17.5mm |
| Gross Weight | 5.5g |
| Width | 8.6mm |
| Mount Type | Through Hole |
| Series | TSR 1-48150WI |
| Output Current | 1A |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 8215000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Line Regulation | 0.6 % |
| Standards/Approvals | EN 55032 |
| Minimum Input Voltage | 21V |
| Output Voltage 1 | 15V dc |
Key Features
- Supports wide input voltage range from 21V to 72V DC for versatile applications.
- High efficiency of 93% reduces power loss and heat generation.
- Compact dimensions (12.1mm length x 8.6mm width x 17.5mm depth) for circuit board integration.
- Wide operating temperature range from -40°C to +80°C ensures reliability in harsh environments.
- Integrated protections including over voltage, short circuit, and automatic recovery enhance device longevity.
- Low ripple and noise of 50mV peak-to-peak suitable for sensitive electronic circuits.
- SIP package type with through-hole mounting for secure PCB installation.
- Designed for industrial, telecommunications, automotive, and railway power regulation needs.
Product Description
The TRACOPOWER TSR 1-48150WI is a non-isolated DC-DC Converter designed to provide a stable 15V DC output voltage at a maximum current of 1A. Packaged in a compact SIP through-hole format, it offers a high efficiency of 93%, making it suitable for energy-sensitive applications and reducing thermal management requirements.
Its ultra-wide input voltage range from 21V up to 72V DC allows compatibility with various power sources, from battery systems to distributed power infrastructures. The converter operates reliably within a temperature range of -40°C to +80°C, making it ideal for challenging environments.
Designed with integrated over voltage protection, short circuit protection, and automatic recovery features, the TSR 1-48150WI ensures safe and continuous operation even under fault conditions. Ripple and noise levels are kept low at 50mV peak-to-peak, supporting sensitive electronics and communication devices.
The SIP package measures 12.1mm in length, 8.6mm in width, and 17.5mm in depth, optimized for easy integration on PCBs via through-hole mounting, ensuring solid mechanical and electrical connections.
This converter finds extensive use in industrial automation, telecommunications, automotive and railway applications, and other distributed power systems requiring stable and efficient DC voltage conversion.
Wide input voltage range of 21 to 72V DC supports diverse applications. High 93% efficiency minimizes heat output and power losses. Robust operating temperature range from -40°C to +80°C ensures dependable performance. Automatic recovery from short circuits enhances reliability during faults.
Low ripple and noise suitable for sensitive electronics environments. Through-hole SIP package ensures easy PCB integration. Compliance with EN 55032 standards for electromagnetic compatibility. Long MTBF of approximately 8.2 million hours signifies durability and quality.
Explore the Electronics category at EnvMart for more power supply and converter products from trusted brands like TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V DC with a maximum output current of 1A.
It supports a wide input voltage range from 21V to 72V DC, making it versatile for various applications.
The converter has a high efficiency rating of 93%, which helps minimize power loss and heat generation.
The SIP package measures 12.1mm in length, 8.6mm in width, and 17.5mm in depth, allowing for compact integration on PCBs.
It operates reliably within a temperature range of -40°C to +80°C, suitable for harsh environments.
This unit includes integrated over voltage protection, short circuit protection, and features automatic recovery to enhance reliability.
The ripple and noise levels are kept low at 50mV peak-to-peak, which is suitable for sensitive electronic circuits.
It features a through-hole mounting design, which ensures secure installation on printed circuit boards.
The load regulation is specified at 0.5%, ensuring stable output under varying load conditions.
It complies with EN 55032 standards for electromagnetic compatibility, ensuring it meets industry requirements.
The mean time between failures (MTBF) is approximately 8.2 million hours, indicating a high reliability over time.
This converter is designed for use in industrial automation, telecommunications, automotive, and railway power regulation applications.
