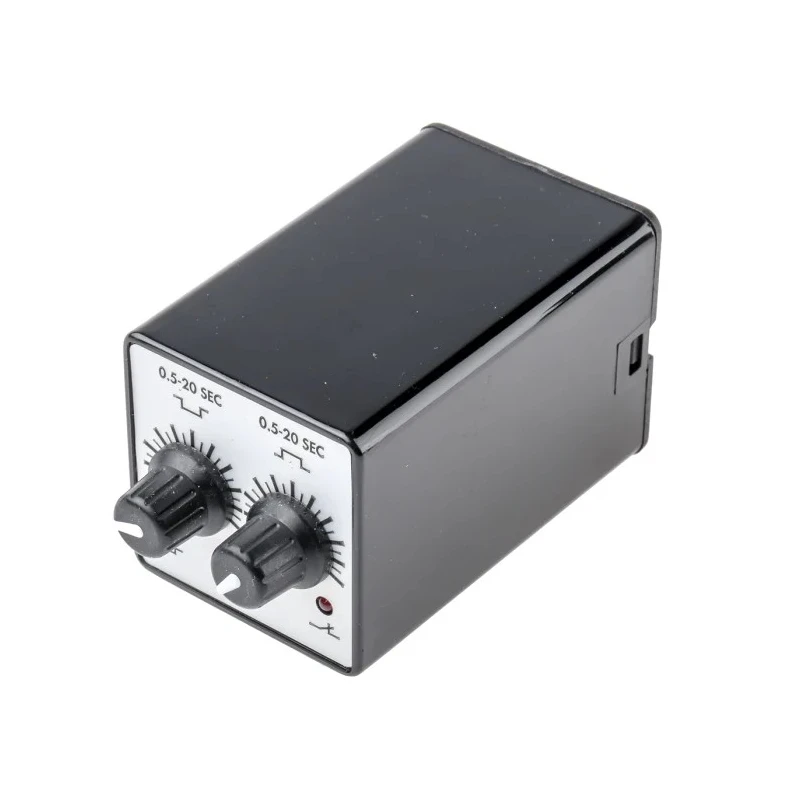

Tempatron Timer Relay DPDT 2BDC20SLP20SLP240VAC, 2-Contact, 240V AC, 0.5 - 20 s, 1-Function, 8-Pin, IP40
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 108mm |
| Length | 48mm |
| Model | 2BDC20SLP20SLP240VAC |
| IP Rating | IP40 |
| Mode | Other |
| Width | 48mm |
| Contact Material | AgCdO |
| Series | 2B |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.5 to 20 s |
| Terminal type | 8-Pin |
| Standards/Approvals | EN/IEC |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Contact Current | 10A |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 240V ac |
| Supply Frequency Range | 50-60 Hz |
Key Features
- Timer relay with DPDT contact configuration for versatile control logic.
- Supports up to 2 contacts and a 1-function timing circuit.
- Operates on 240V AC supply voltage, ideal for industrial panels.

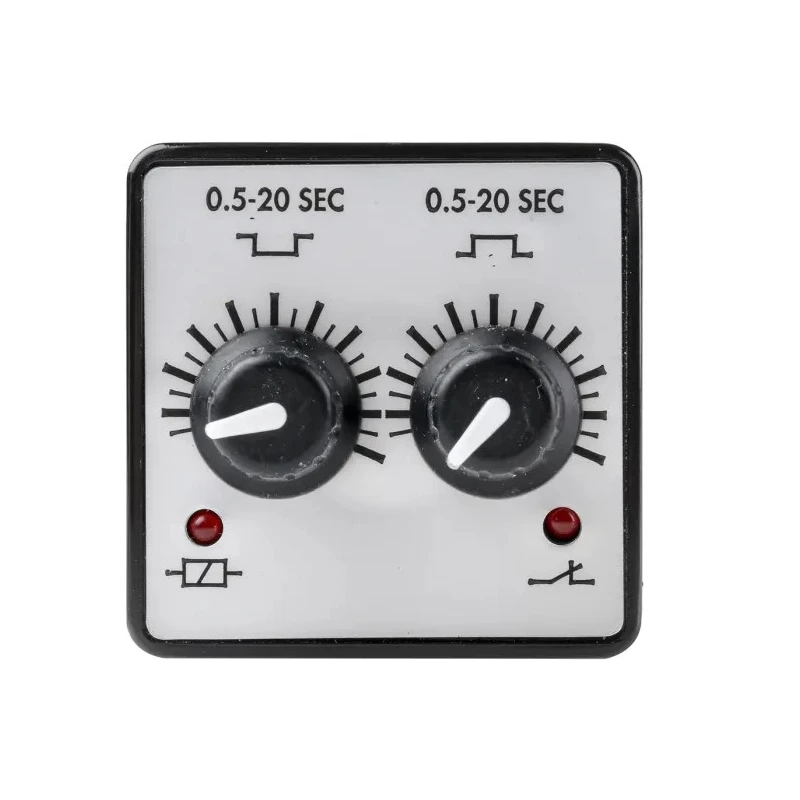

- Adjustable timing range from 0.5 to 20 seconds using screwdriver slot.

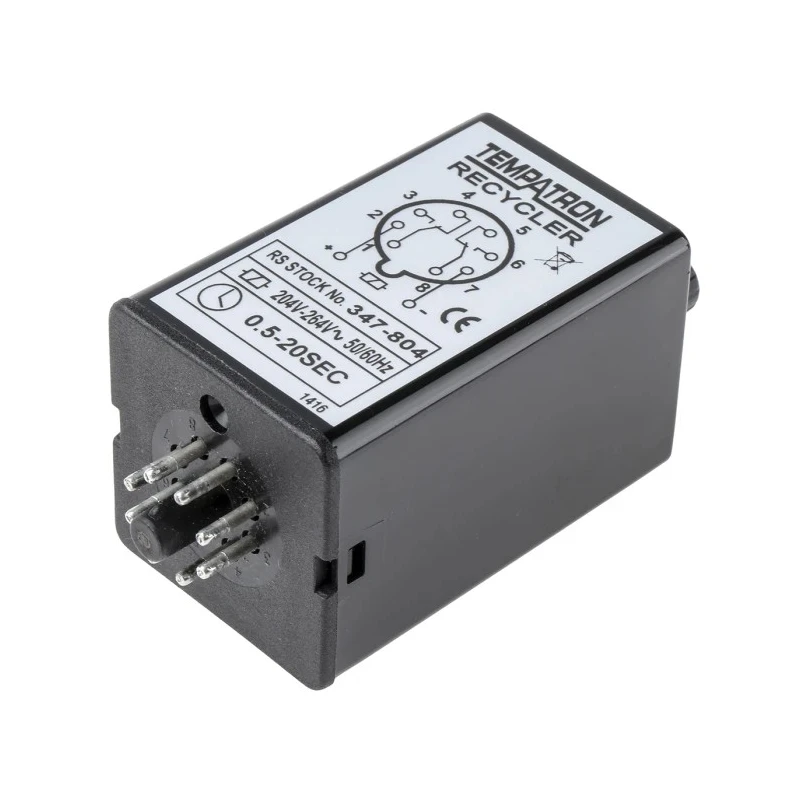

- 8-pin octal base for secure panel or DIN rail installation.
- IP40 ingress protection suitable for enclosed electrical installations.
- Contact current rating of 10A for reliable switching performance.
- Operating temperature range from -10°C to 60°C.
Product Description
The Tempatron 2BDC20SLP20SLP240VAC timer relay is engineered for precise time-based switching applications in industrial automation, control panels, and process environments. Featuring a DPDT (double pole double throw) contact configuration, it enables dual-circuit control with reliable switching performance.
This timer relay offers an adjustable timing range of 0.5 to 20 seconds, configured easily via a screwdriver slot mechanism for flexibility in setup and operation. Operating at a supply voltage of 240V AC and designed for 8-pin octal base sockets, it seamlessly integrates into a wide array of panel assemblies and automation controls.
The device supports a contact current rating of up to 10A, accommodating medium-power switching tasks common in conveyor systems, pump timing, motor control, laboratory automation, and HVAC timing circuits. The single timing function ensures consistent and repeatable delayed switching for process optimization or safety interlocking.
An IP40 ingress protection rating makes the relay suitable for use within electrical enclosures, providing dust protection and reliable performance in controlled industrial environments. Its compact form factor (48mm width x 48mm depth x 108mm height) allows for efficient use of panel space and straightforward retrofitting.
Additional features include LED indication of power on and relay operation, supporting real-time status monitoring and troubleshooting. The timer relay utilizes AgCdO contact materials for improved electrical endurance and is compliant with relevant EN/IEC safety and quality standards.
The Tempatron 2BDC20SLP20SLP240VAC is broadly employed in industrial manufacturing lines, laboratory control systems, process automation, water treatment plants, and any application that requires reliable and adjustable time-delay relay functions. Its robust construction and proven technology provide dependable performance in demanding conditions.
Explore more range-leading Timer Relays and industrial control solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this model is adjustable from 0.5 to 20 seconds, allowing for flexible configuration based on application needs.
It features a DPDT (double pole double throw) contact configuration, enabling versatile control logic for various applications.
The contact current rating is 10A, suitable for medium-power switching tasks common in industrial applications.
This unit operates on a supply voltage of 240V AC, making it ideal for use in industrial panels.
It has an IP40 ingress protection rating, providing dust protection suitable for enclosed electrical installations.
The dimensions are 48mm in width, 48mm in depth, and 108mm in height, allowing for efficient use of panel space.
The timing adjustment is made using a screwdriver slot mechanism, facilitating easy configuration.
The operating temperature range is from -10°C to 60°C, accommodating various environmental conditions.
It utilizes an 8-pin terminal type, ensuring secure connections for installation.
This model is compliant with relevant EN/IEC safety and quality standards, ensuring reliability in industrial applications.
It supports one timer function, providing consistent and repeatable delayed switching for various applications.
The contacts are made from AgCdO material, which enhances electrical endurance for reliable performance.
