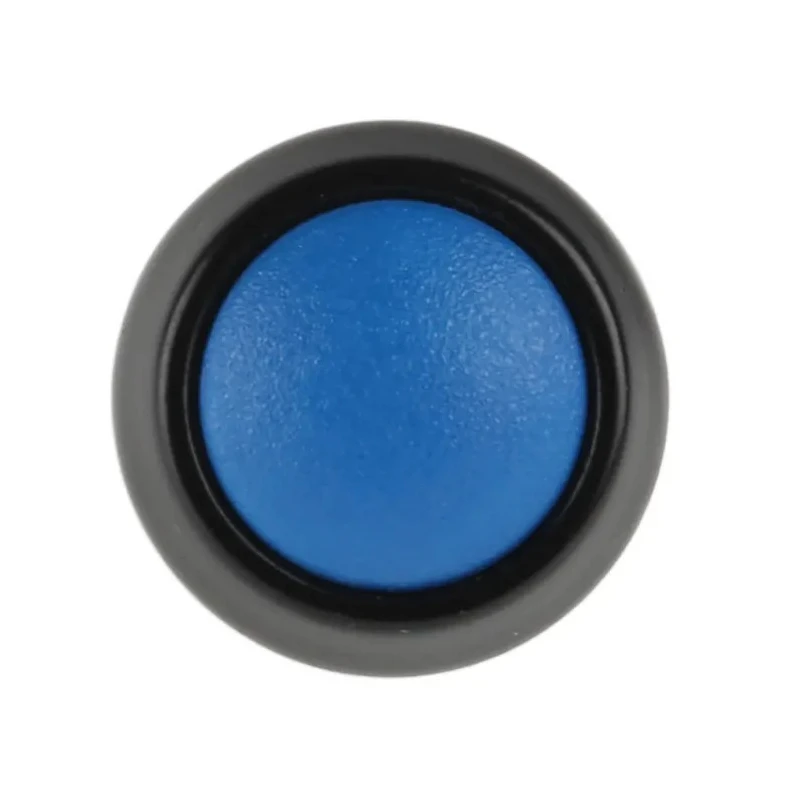

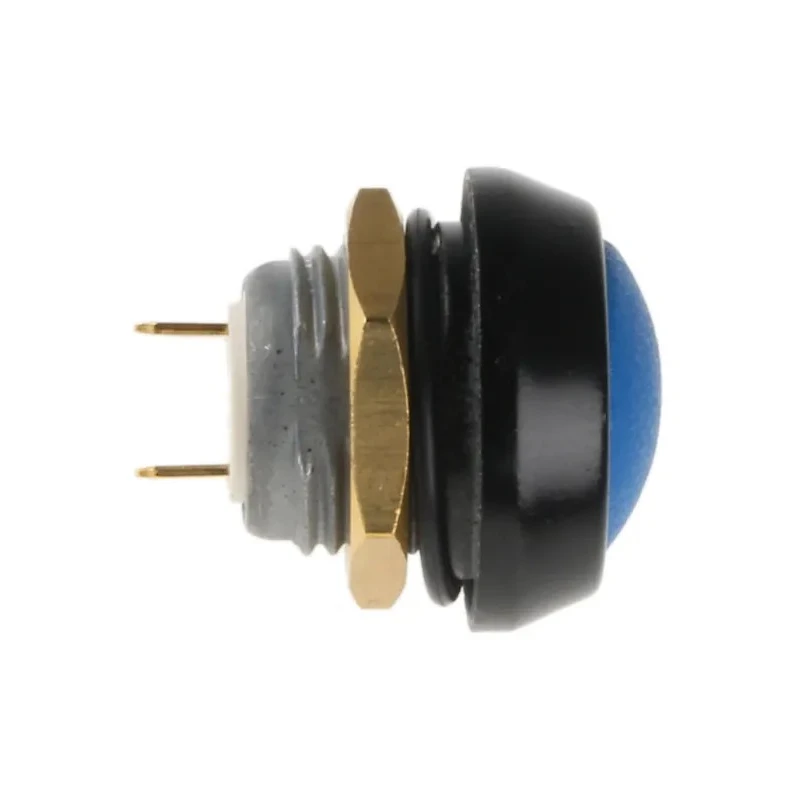

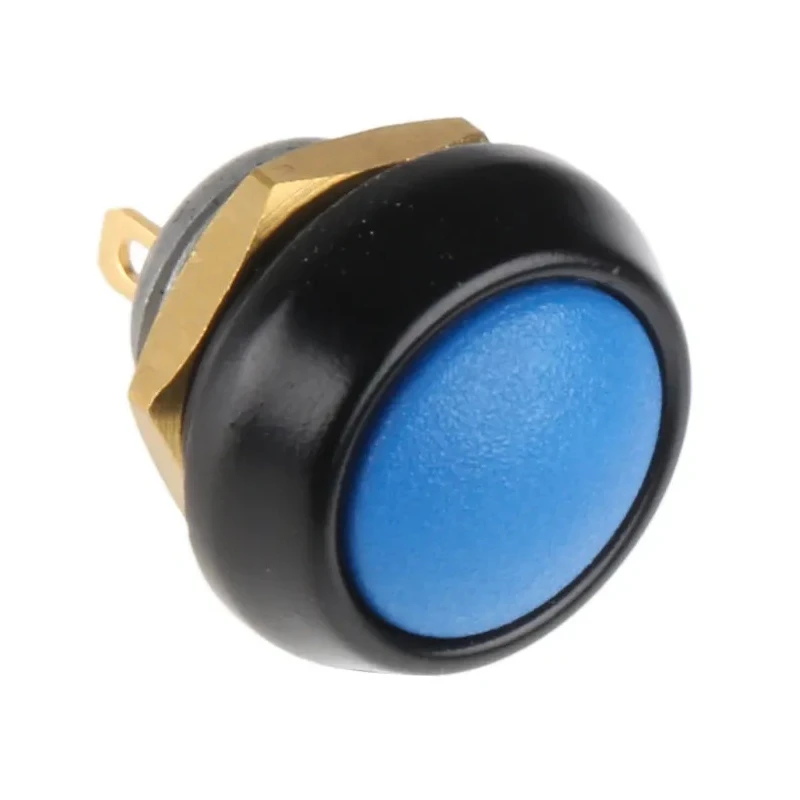

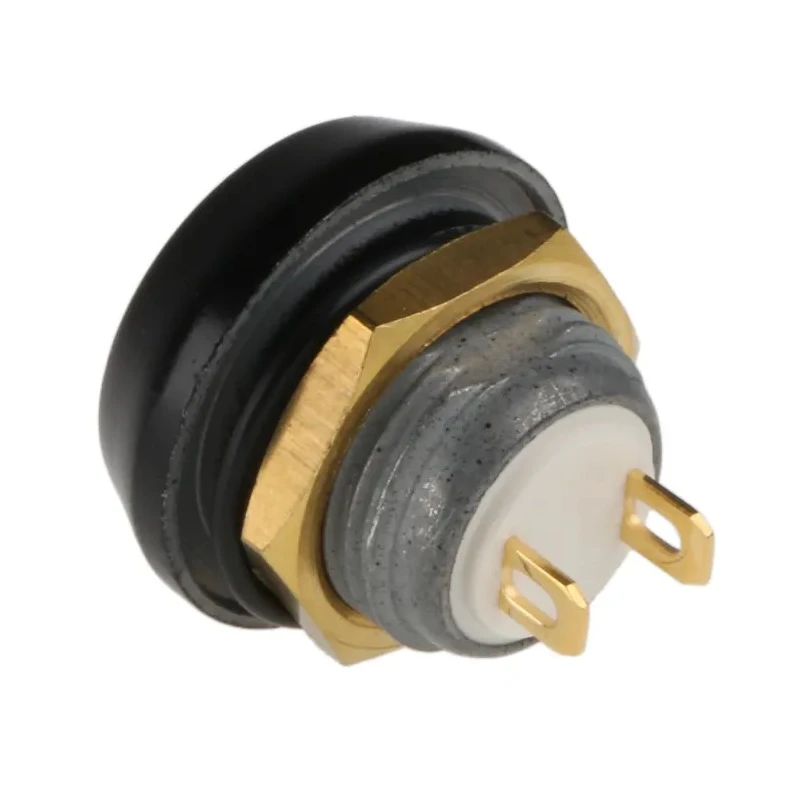

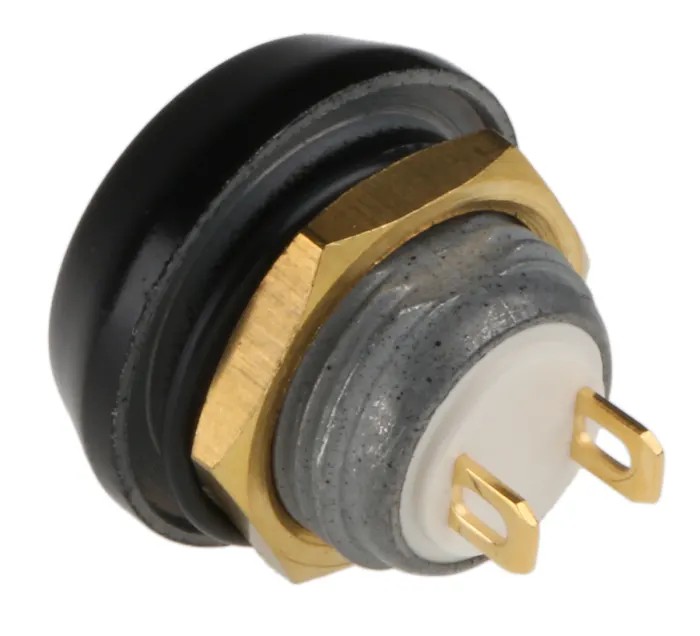

ITW Switches Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67, 50 V DC 59-116

The ITW Switches 59-116 Miniature Push Button Switch is a compact, panel mount switch designed for industrial, instrumentation, and harsh environment applications. With a momentary SPST contact operation, this switch only makes an electrical connection while being pressed, ensuring precise actuation and safety.

Featuring a blue round actuator, the switch includes a clear LED for visual indication. Its robust construction utilizes gold contacts and offers environmental protection up to IP67, making it resistant to dust ingress and capable of withstanding temporary immersion between 15 and 100 cm for up to 30 minutes.

This push button switch supports a panel cutout of 13.6 mm, and is equipped with solder terminals for secure installation. The non-illuminated version provides reliable tactile feedback and is designed to withstand demanding industrial conditions. The body can be constructed from a non-spark zinc alloy or hard-wearing polybutylene terephthalate (PBT), facilitating its suitability for a wide range of applications.

The 59 series from ITW offers miniature, rugged, panel-sealed pushbutton switches commonly utilized in environments such as communications equipment, data entry systems, military control interfaces, instrumentation panels, and mass transit controls. Its high environmental specifications, including wide temperature tolerance from -55°C to 125°C, make it ideal for data-intensive or field devices requiring reliability under adverse conditions.

Key features include an SPST contact configuration, a maximum contact current of 400mA, and compatibility with both 50 V DC and 125 V AC signals. The gold contacts ensure low resistance and high longevity. The switch configuration is On-Off, with immediate response feedback while pressed.

Designed for panel mount installation, the switch delivers consistent performance with its impact-resistant housing and versatile mounting capability. The choice of non-spark material ensures additional safety in hazardous areas. Its status illumination options and multiple actuator colors expand its integration potential in control systems.

Industrial and laboratory use cases include equipment front panels, instrumentation interfaces, cleanroom controls, outdoor and mass transit panels, and environments requiring certified switches with lasting durability and resistance to contaminants.
