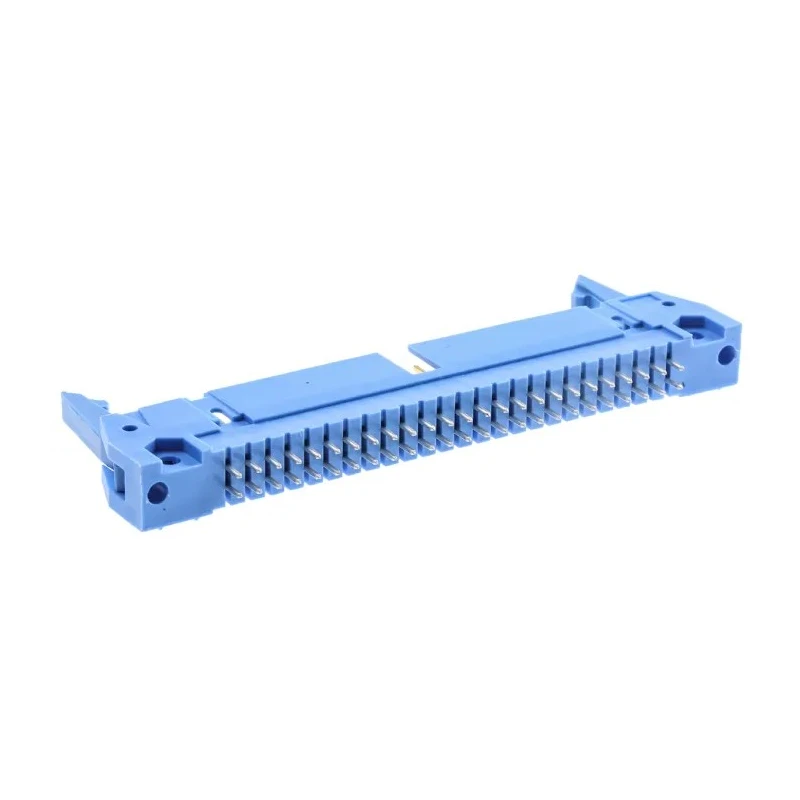

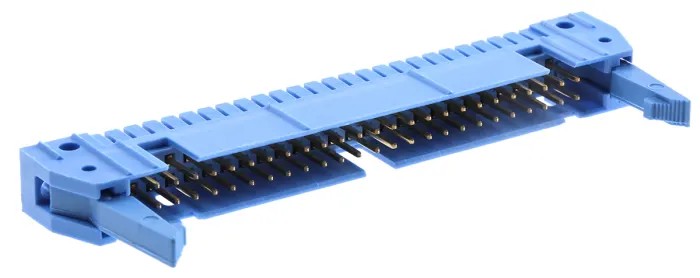

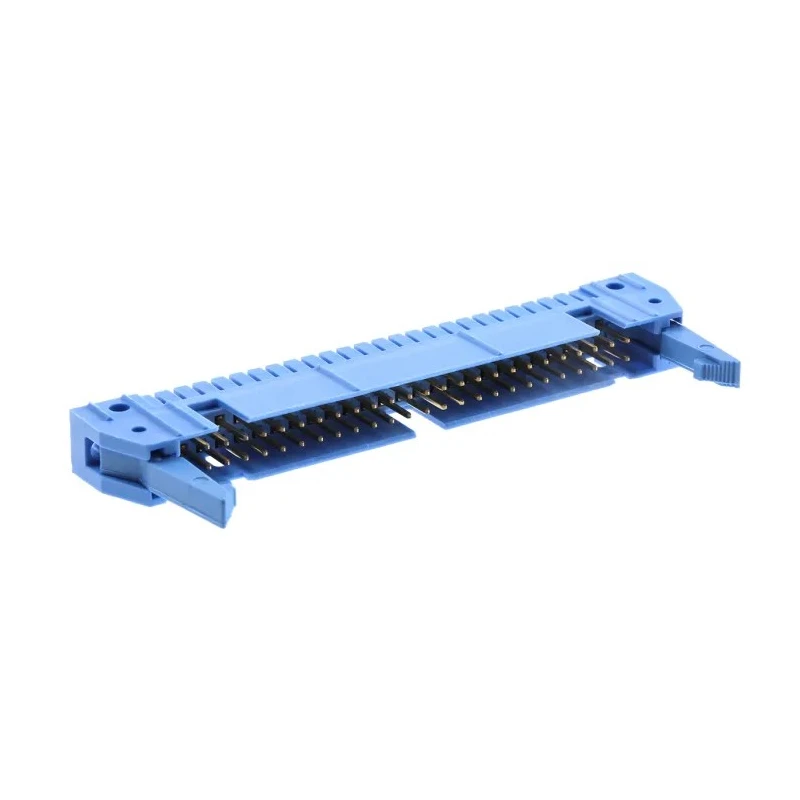

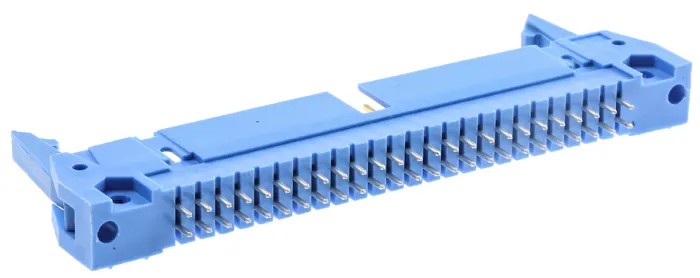

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded 3-5499206-0

The TE Connectivity AMP-LATCH Series PCB Header, model 3-5499206-0, is designed for demanding electronic applications requiring robust and efficient wire-to-board connections. This header accommodates 50 contacts organized in two rows, with a 2.54 mm pitch, perfectly suited for standard IDC ribbon cable interfacing in industrial and commercial systems.

Constructed with a shrouded housing and straight through-hole configuration, this connector delivers reliable mating, dual polarization, and military-grade secure retention. Gold-plated phosphor bronze contacts enhance electrical conductivity, while the nylon housing supports high dielectric strength and mechanical resistance.

Rated at 250V and up to 1A per contact, the AMP-LATCH header operates in extreme environments, with a certified temperature range from -65°C to 105°C. Its ejector latch options facilitate easy removal and replacement of ribbon cable connectors, making it well-suited for serviceability in busy industrial, medical, networking, storage, and control panels.

Solder termination ensures a stable and low-resistance interface, while the male contact gender supports standard wire-to-board architectures. The connector’s tail pin length is specified at 2.79 mm, matching PCB thickness for a reliable and secure fit.

Applications include PCs, business equipment, medical instrumentation, industrial controls, appliances, electrical testing, and high-density PCB assemblies. Its universal ejection style adapts to numerous system designs requiring quick installation and robust cable interfaces.

Features 50 contact positions for large ribbon cable applications. Includes dual rows with 2.54 mm pitch, ideal for standard PCB layouts. Shrouded housing provides secure mating and polarization. Phosphor bronze contacts with gold plating ensure longevity and high conductivity.

Rated for up to 1A current and 250V voltage operation. Operating temperature range from -65°C up to 105°C for industrial environments. Straight, through-hole mount for robust PCB integration. Ejector latch options enable easy cable removal and secure retention.

Suitable for wire-to-board IDC ribbon cable interface. Nylon housing material provides electrical insulation and mechanical durability. For further product exploration, browse more AMP-LATCH PCB connectors and TE Connectivity’s range of industrial-grade electronic components on EnvMart.
