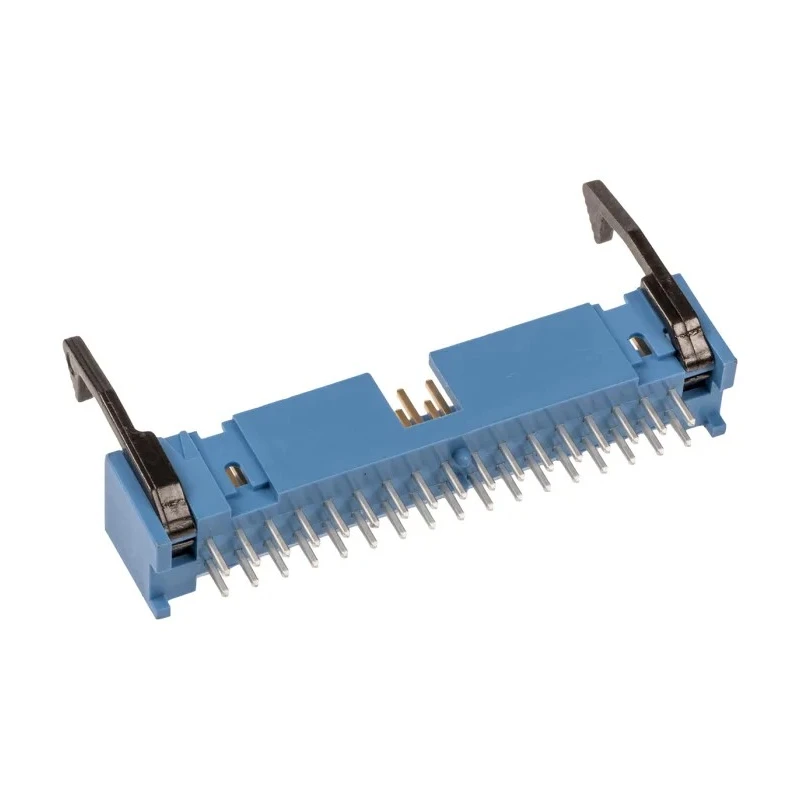

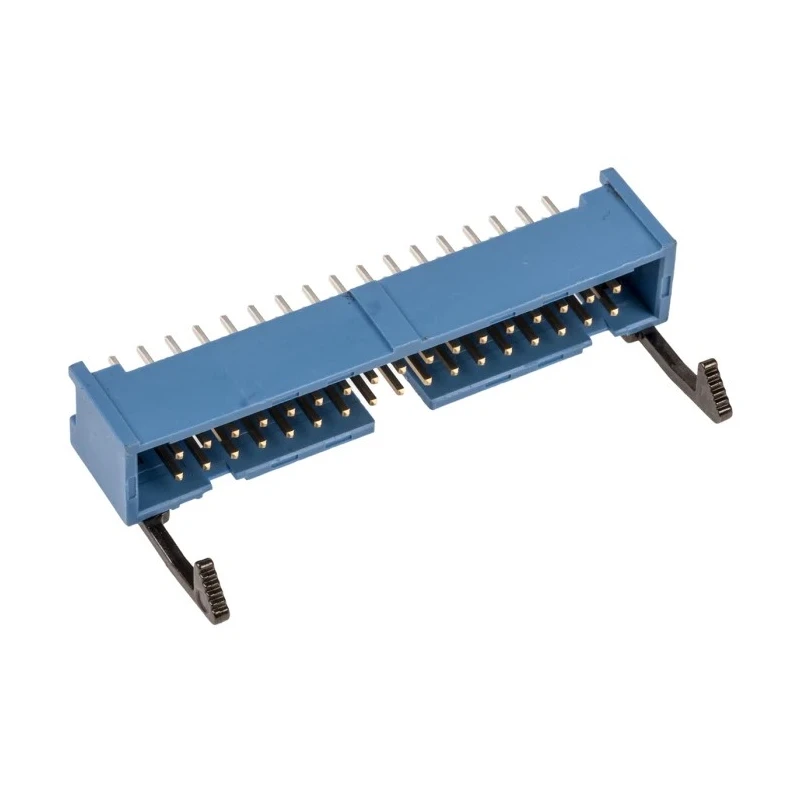

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 34 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 3-1761606-1

The TE Connectivity 3-1761606-1 AMP-LATCH Series PCB Header is a high-quality connector designed for wire-to-board applications requiring a robust and reliable interface. This straight through-hole header features 34 contacts arranged in 2 rows with a 2.54 mm pitch, suitable for standard IDC ribbon cable connections.

With ejector latches and a shrouded construction, the header ensures both secure mechanical retention and easy cable removal, making it ideal for environments where frequent reconnections or maintenance are necessary. The housing material, polybutylene terephthalate, is well-regarded for its durability and resistance to mechanical stresses, providing sustained performance under industrial and commercial use.

Gold-plated phosphor bronze contacts offer low contact resistance and high corrosion protection, delivering consistent signal integrity over extended periods. Termination is via solder, compatible with conventional PCB assembly processes. The connector is configured for straight orientation, best suited for vertical board installations.

Designed for reliable wire-to-board connections in industrial and electronic applications. Features 2.54 mm pitch for standard IDC ribbon cable compatibility. 34 contacts for multi-channel signal and data transmission. Shrouded header design with ejector latches enables secure mating and easy removal.

Housing made from polybutylene terephthalate ensuring robust mechanical performance. Straight, through-hole mount provides stable and consistent PCB installation. Gold-plated phosphor bronze contacts for precise conductivity and long-term durability.

Military and center polarization options for enhanced versatility. Operating temperature range from -65°C to 105°C suitable for varied environments.

This AMP-LATCH Series header supports military and center polarization, accommodating a variety of mating receptacles including those with or without strain relief, depending on the latch style. Typical use cases include computers, business equipment, medical devices, industrial control systems, and electrical testing setups.

With a voltage rating of 250V and a maximum current of 1A per contact, it is suitable for low-voltage signal transmission in demanding environments. The robust temperature range further extends its applicability in laboratory, manufacturing, and commercial sectors. Explore more PCB connector solutions and TE Connectivity series within the Electronics & Electricals category at EnvMart.
