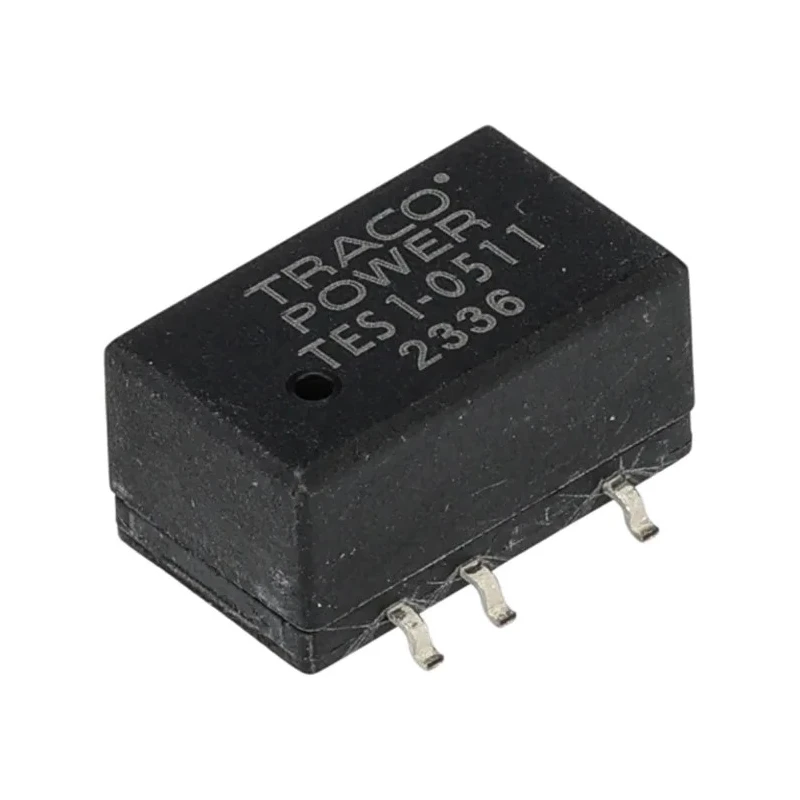

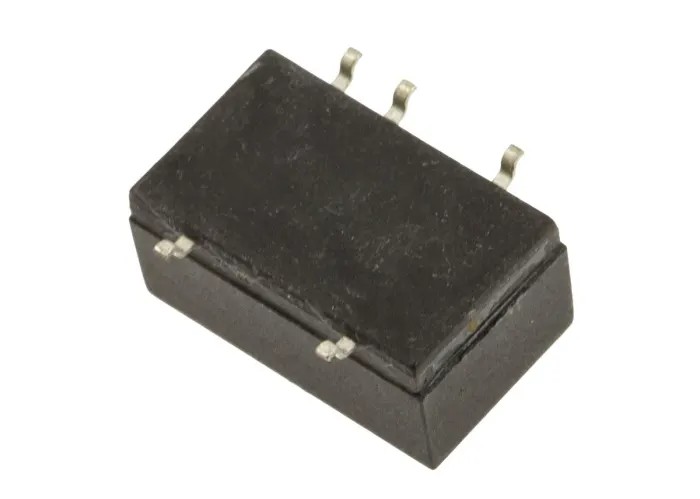

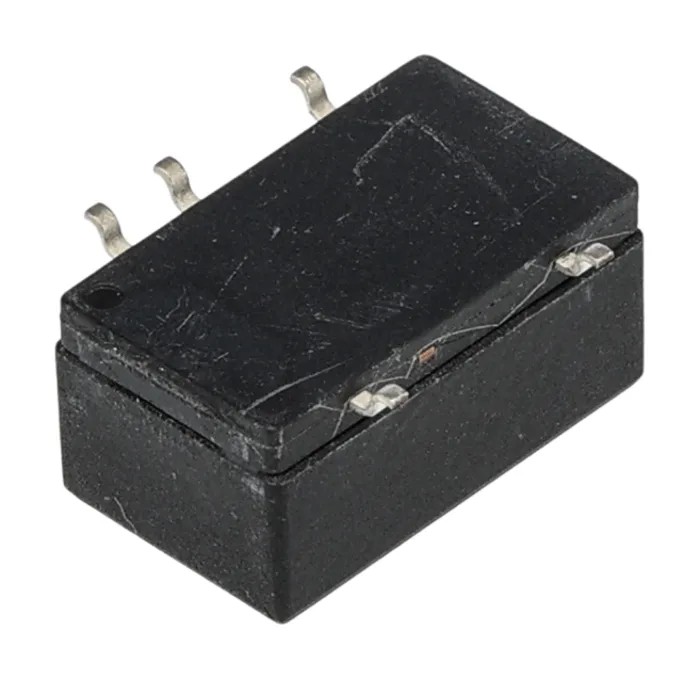

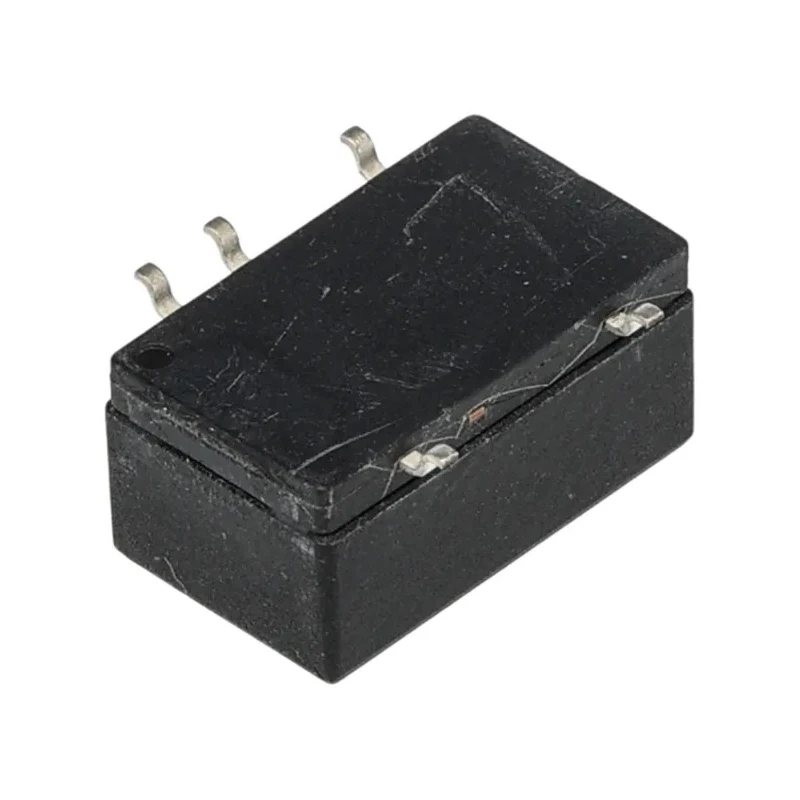

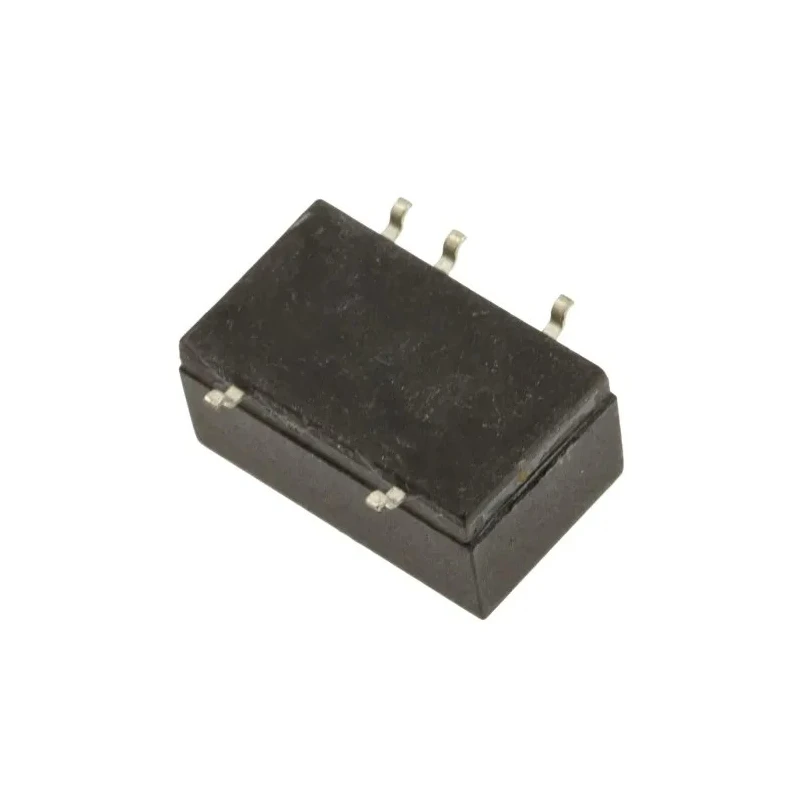

TRACOPOWER DC/DC Converter TES 1-0511, 5V DC Output, 200 mA, Surface Mount, 4.5 - 5.5V DC Input, 1 W, 78% Efficiency

The TRACOPOWER TES 1-0511 DC/DC Converter is a compact, high-efficiency power module designed for industrial and commercial electronic systems requiring stable low-voltage DC supply. With a regulated 5V DC output at 200 mA from a 4.5 - 5.5V DC input range, it ensures reliable performance in environments where space and energy efficiency are paramount.

Engineered for surface mount applications, the TES 1-0511 is ideal for PCB integration, supporting streamlined manufacturing via lead-free reflow soldering. The converter's maximum output power is rated at 1 W, with a high efficiency of up to 78 percent, reducing heat generation and minimizing operational costs.

The module delivers robust isolation with 1.5 kV DC between input and output, ensuring electrical safety for sensitive digital and automation circuits. Designed for environments with up to 95 percent relative humidity (non-condensing), the unit maintains performance across a wide operating temperature range from minus 40 to plus 90 degrees Celsius.

Safety is integrated, with internal short circuit protection and rapid start-up (400 ms maximum start time), making it suitable for mission-critical industrial automation, distributed power architectures, and ground loop elimination in complex electronic systems.

Installation is straightforward, requiring proper PCB alignment and temperature control during soldering to prevent thermal stress. The TES 1-0511 sustains reliability even in high-humidity or variable-temperature installations, provided environmental limits are observed.

This converter is widely used in industrial automation, laboratory instrumentation, digital interfaces, voltage isolation scenarios, and noise reduction applications. Its compact dimensions (13.7 mm length, 8 mm width, 6.7 mm depth) make it suitable for dense electronics assemblies with demanding footprint constraints.

Stable 5V DC output at 200 mA for low-voltage digital circuits. Broad input range enables compatibility with various DC sources. Surface mount design accelerates PCB manufacturing integration. Excellent efficiency reduces heat and improves energy usage.

Electrical isolation enhances safety in sensitive applications. Wide thermal range supports operation in extreme environments. Rapid power-up ensures quick availability in automation systems. Short circuit protection preserves device and system integrity.

Applicable in industrial, laboratory, automation, and digital control settings. Explore more industrial power conversion solutions and technical products from TRACOPOWER and the EnvMart DC-DC Converter portfolio for optimized electronics integration.
