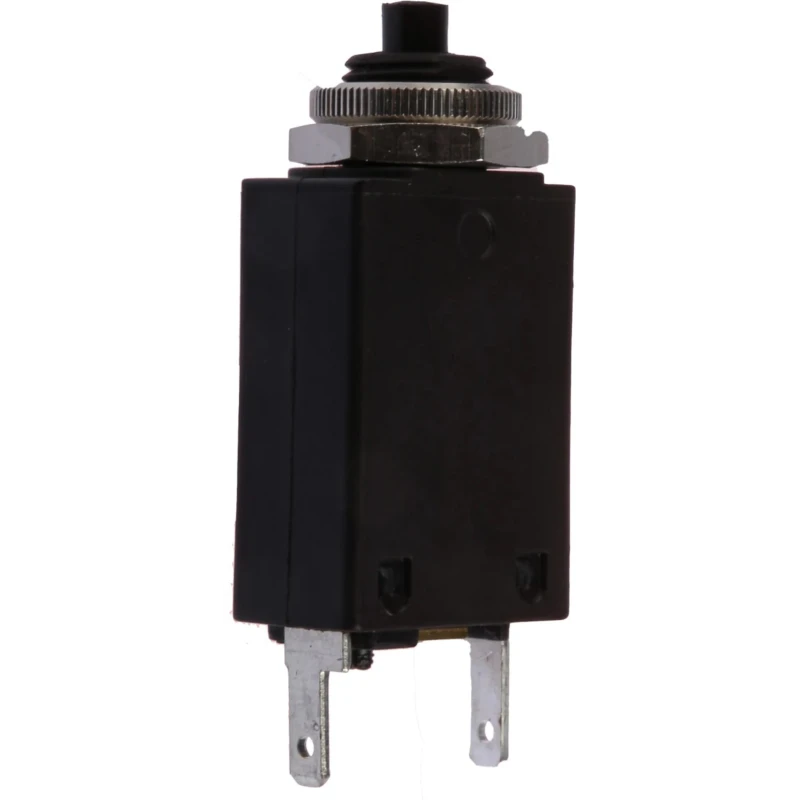

ETA Thermal Circuit Breaker 3A, 1-Pole, DIN Rail, 250V AC, 48V DC, Thermal Trip, Button Reset 106-P30-000040-3A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	Tunisia
Range	106-P30
Brand	ETA
Height	64mm
Model	106-P30-000040-3A
Width	11mm
Mount Type	DIN Rail
Current Rating	3A
Series	106-P30
Terminal type	Blade
Breaking Capacity	200A
Number of Poles	1
Standards/Approvals	VDE, CSA, UL, BV, DEMKO, ABS, LROS
Rated AC Voltage	250V ac
Rated DC Voltage	48V dc
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Mount Hole Size	9.6 x 8.9 mm
ETA 1410-L Thermal Circuit Breaker -, 3.15A Current Rating 1-Pole, BaseBrand	ETA

Key Features

Designed for protection of motors, transformers, and power supplies.
Trip-free mechanism prevents manual override in fault conditions.
Rated for 250V AC and 48V DC operation.
Button reset actuator offers straightforward restoration after trips.
Suitable for inductive/reactive loads with slow response time.
Single-pole configuration ideal for compact installations.
Blade terminal allows secure electrical connection.
Compliant with VDE, CSA, UL, BV, DEMKO, ABS, LROS standards.

Product Description

ETA 106-P30-000040-3A is a thermal circuit breaker engineered for reliable protection in low voltage circuits, particularly for applications involving motors, transformers, and power supplies. It features a 3A current rating and is designed for single-pole operation, making it suitable for compact installations on DIN rails.

The thermal tripping mechanism reacts to sustained overloads and faults, with a typical slow response time of approximately 30 seconds at double the nominal current, benefiting inductive or reactive loads. Its trip-free function ensures the circuit cannot be reset manually while an overcurrent fault persists, enhancing safety and reliability.

This breaker accommodates up to 250V AC and 48V DC systems, broadening its usability for a range of industrial and commercial environments. The button reset actuator provides easy restoration after trips, minimizing downtime while maintaining operational integrity.

Terminal connection is achieved via blade type terminals, offering secure and straightforward wiring. The compact sub-miniature construction, with double insulation and PCB/single hole mounting, supports versatile integration in control panels and equipment.

ETA's circuit breaker complies with global standards including VDE, CSA, UL, BV, DEMKO, ABS, and LROS, ensuring it meets stringent safety and quality requirements. The typical operational life is rated at 5000 operations (up to 3A) and 1000 operations (above 3A), reflecting high durability in repetitive-cycle environments.

Applications include industrial automation panels, machinery protection, laboratory instrumentation, HVAC, water treatment systems, and commercial control installations. The combination of high breaking capacity (200A), precision reset, and robust construction renders it ideal for critical circuits requiring consistent performance and fault isolation.

Explore more industrial circuit protection devices in the Circuit Breakers & Fuse category or browse ETA's portfolio for related products.
