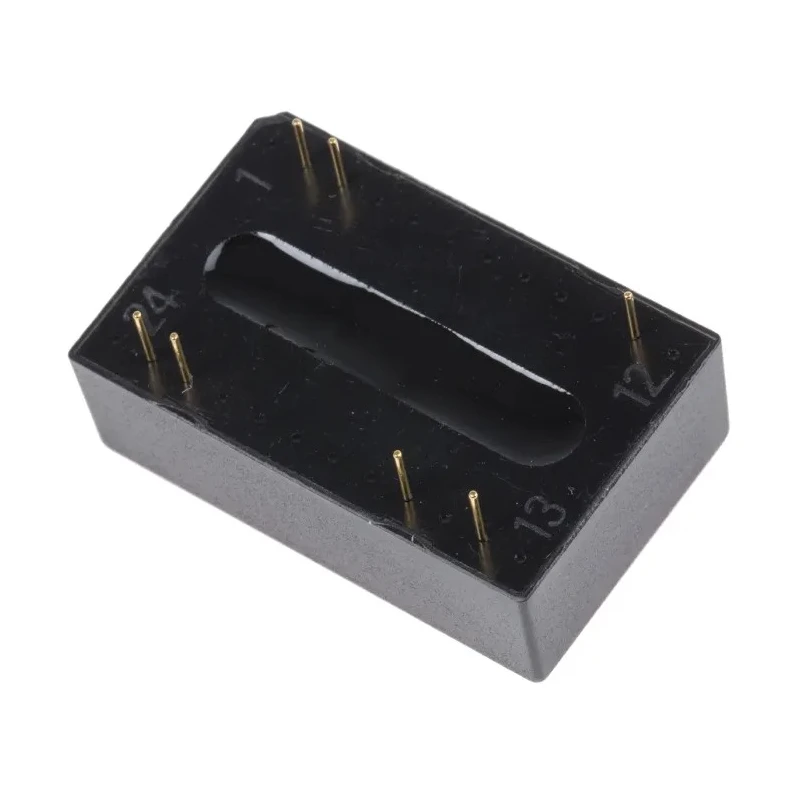

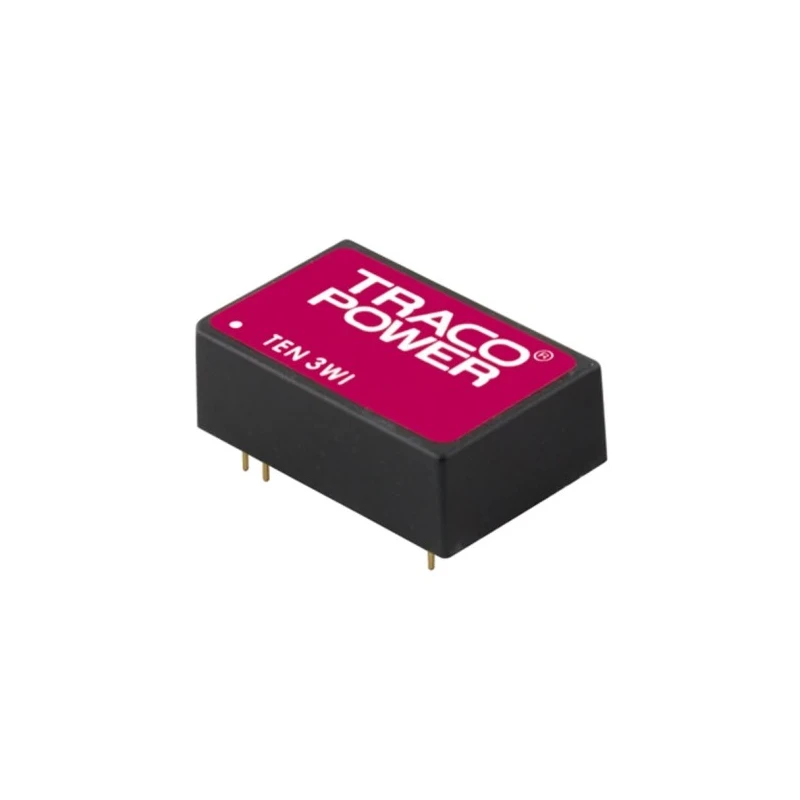

TRACOPOWER DC/DC Converter 15V Output, 36V Input, 3W, Through Hole, -40°C to 85°C TEN 3-2413WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3WI DC/DC Converter, 15V dc/ 200 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 32mm |
| Model | TEN 3-2413WI |
| Depth | 10.2mm |
| Width | 20mm |
| Mount Type | Through Hole |
| Series | TEN 3WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input range |
Key Features
- Provides a regulated 15V DC output at up to 200mA with 3W maximum power.
- Durable through-hole DIP-24 form factor for secure PCB mounting.
- Operates reliably across an extended temperature range of -40°C to 85°C.
- Features high isolation voltage of 1.5kV DC for improved safety and interference protection.
- Designed with SMD construction for increased reliability and MTBF of up to 1,000,000 hours.
- Integrated EMI filter meets EN 55022, Class A standards without additional components.
- Excellent load and line regulation ensures stable output under varying conditions.
Product Description
The TRACOPOWER TEN 3-2413WI is a robust isolated DC/DC converter designed for industrial, instrumentation, and communication applications. It offers a regulated 15V DC output with a maximum output current of 200mA and delivers up to 3W of power, making it ideal for reliable low-power conversion tasks.
This converter features an ultra-wide input voltage range of 9V to 36V DC, allowing seamless integration within distributed power architectures and battery-operated systems. Its through-hole DIP-24 form factor ensures straightforward mounting and secure connection to PCBs for both new designs and legacy systems.
Built for durability, the TEN 3-2413WI operates across an extended temperature range from -40°C up to 85°C, meeting the demands of harsh industrial environments, laboratory setups, and outdoor electronics. The isolation voltage of 1.5kV DC provides superior protection against voltage spikes and electromagnetic interference, increasing the safety and stability of connected circuits.
The converter employs surface-mount device (SMD) technology for enhanced reliability and features a mean time between failures (MTBF) of up to 1,000,000 hours, supporting continuous duty operations. With its integrated EMI input filter, the device complies with EN 55022, Class A standards, eliminating the need for external noise suppression components and simplifying installation and compliance processes.
Excellent load and line regulation ensures the output voltage remains stable regardless of changes in input voltage or output load. Indefinite short-circuit protection further enhances operational safety. These features make the TEN 3-2413WI a preferred choice for manufacturers, system integrators, and engineers requiring efficient and dependable DC power conversion for industrial, laboratory, telecommunications, and instrumentation projects.
Isolated DC/DC converter with wide 4:1 input range (9V - 36V DC). Continuous regulated 15V DC output up to 200mA, 3W power. DIP-24 through-hole package for secure PCB assembly. Extended -40°C to 85°C operating temperature range.
1.5kV DC isolation and integrated EMI filter for compliance with EN 55022, Class A. SMD construction for long-term reliability and MTBF of 1,000,000 hours. Ideal for industrial, instrumentation, communications, and laboratory applications.
Browse more TRACOPOWER DC-DC Converters and industrial power modules across EnvMart categories for advanced power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 15V DC with a maximum output current of 200mA.
The TEN 3-2413WI operates within an ultra-wide input voltage range of 9V to 36V DC.
It has a maximum output power rating of 3W.
The dimensions are 32mm in length, 20mm in width, and 10.2mm in depth.
It operates reliably across an extended temperature range from -40°C to 85°C.
This unit features a through-hole DIP-24 mounting type for secure PCB assembly.
The isolation voltage is rated at 1.5kV DC, providing protection against voltage spikes.
Yes, it has an integrated EMI filter that complies with EN 55022, Class A standards.
The MTBF is rated at up to 1,000,000 hours, indicating high reliability.
It is designed for industrial, instrumentation, communication, and laboratory applications.
The efficiency of this model is rated at 82%.
This converter has a single output.
