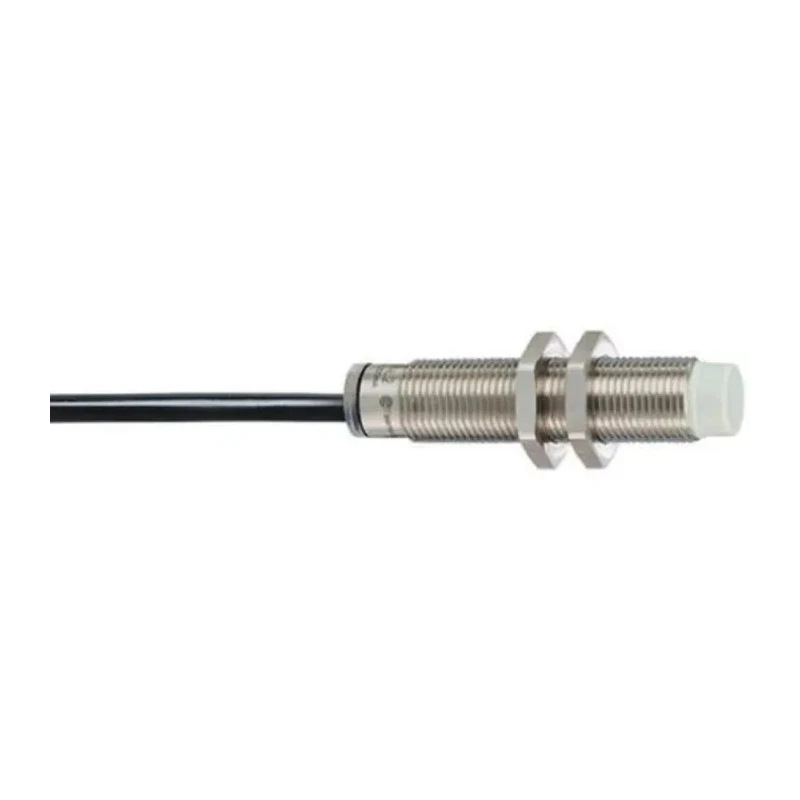

Telemecanique Sensors Inductive Proximity Sensor Threaded Barrel M12 NPN Stainless Steel 36V 200mA XS212SANAL2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 54.5mm |
| Model | XS212SANAL2 |
| Depth | 17mm |
| IP Rating | IP69K |
| Width | 17mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Output type | NPN |
| Series | XS |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2.5kHz |
| Standards/Approvals | UL, IEC 60529, E, DIN 40050, CSA |
| Maximum Supply Voltage | 36V |
| From freezing | -25°C to sterilisation at +85°C |
Key Features
- Features a threaded barrel design for secure installation.
- M12 mounting with pre-cabled terminal for easy connection.
- Operates on a maximum supply voltage of 36V DC and switching current of 200mA.
- Constructed with a stainless steel housing, providing high durability and corrosion resistance.
- Non-flush mount configuration with IP69K protection for operation in harsh and hygienic applications.
- Unshielded, NPN output for compatibility with PLCs and automation systems.
- Offers reliable operation from -25°C to 85°C, suitable for food, beverage, and pharmaceutical industries.
- High switching frequency up to 2.5kHz supports rapid detection tasks.
Product Description
Telemecanique Sensors XS212SANAL2 is an industrial-grade inductive proximity sensor designed for demanding environments requiring precise metal object detection. Featuring a threaded barrel body and M12 mounting, this sensor provides secure installation and robust performance, making it ideal for applications in food and beverage processing, pharmaceutical manufacturing, and other hygiene-sensitive settings.
With a stainless steel housing, the XS212SANAL2 delivers excellent resistance to corrosion and mechanical impact, ensuring reliable operation in both wet and high-vibration areas. Its pre-cabled terminal simplifies integration into automation and control systems, while the non-flush mount configuration allows for flexible positioning and enhanced sensing range.
This model operates on a 36V maximum DC supply voltage and supports a switching current of up to 200mA, offering compatibility with various PLCs, controllers, and industrial automation interfaces. The unshielded NPN output facilitates straightforward connection and signal processing, making it suitable for rapid detection applications, especially when high throughput or frequent switching is required.
The XS212SANAL2 sensor complies with IP69K protection standards and industry certifications including UL, IEC 60529, DIN 40050, and CSA. Its wide operating temperature range from -25°C to 85°C ensures reliability under extreme conditions - from freezing to sterilization. Key physical attributes include a compact design with 54.5mm length, 17mm width, and 17mm depth, allowing for installation in space-constrained setups.
Applications cover food and beverage production, pharmaceutical processing, general industrial automation, and sectors where hygiene, rapid detection, and resistance to harsh environments are critical. The sensor supports high switching frequencies up to 2.5kHz, enabling fast response for automated sorting, metal detection, and production line monitoring.
Technical standards adherence guarantees safety and performance in line with global requirements. The Telemecanique Sensors XS212SANAL2 offers a reliable, maintenance-friendly solution for modern industrial sensing needs.
Discover more Proximity Sensors and automation solutions in the Sensors and Electronics & Electricals categories from EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 36V DC.
It supports a maximum switching current of 200mA.
This unit operates within a temperature range of -25°C to 85°C.
It features an unshielded NPN output, making it compatible with various PLCs and automation systems.
The sensor has a length of 54.5mm, a width of 17mm, and a depth of 17mm.
The threaded barrel design allows for secure installation, enhancing the sensor's stability in various applications.
The maximum switching frequency is up to 2.5kHz, supporting rapid detection tasks.
It is constructed with a stainless steel housing, providing corrosion resistance and durability.
It features a pre-cabled terminal for easy connection to control systems.
This sensor is commonly used in food and beverage processing, pharmaceutical manufacturing, and other hygiene-sensitive applications.
It complies with several standards including UL, IEC 60529, DIN 40050, and CSA.
