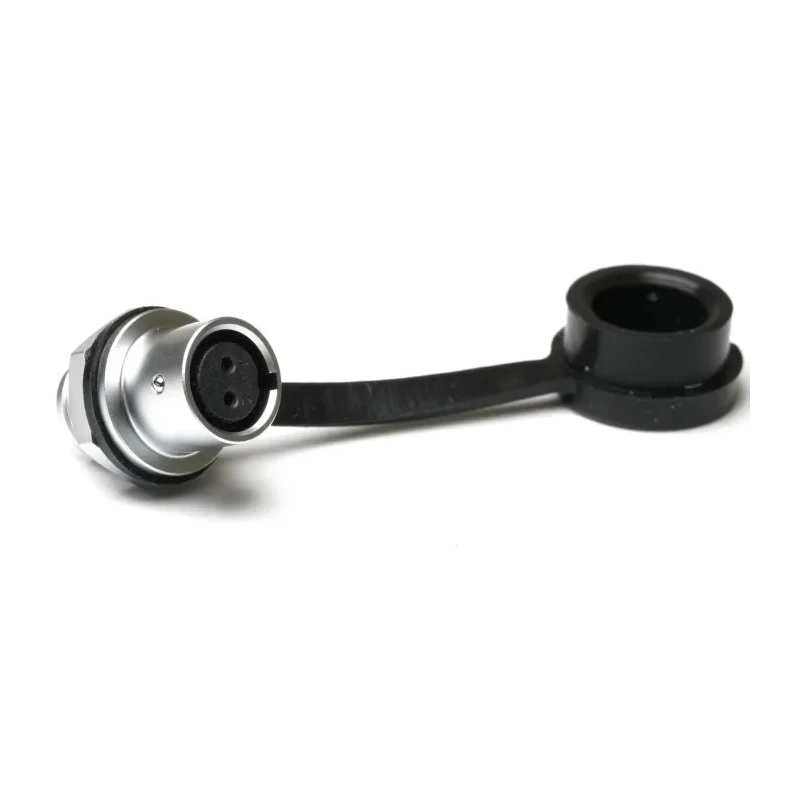

RS PRO SF10 Series Circular Connector 2 Contacts Socket Female IP67 Front Panel Mount 180V 5A 206-5024
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 180V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 206-5024 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | SF10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Insulation resistance | 2000 MΩ |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Mating Type | Push Pull |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Mating Cycles | 500 |
Key Features
- Push-pull coupling system ensures secure and reliable connection.
- Features 2 gold-plated brass contacts suitable for power or data applications.
- Front panel mount design with straight orientation for streamlined installation.
- IP67 rated waterproof housing made of chrome plated brass for enhanced durability.
- Supports solder termination for stable and efficient connectivity.
- Handles up to 180V voltage and 5A current, making it ideal for industrial environments.
- Suitable for medical, telecommunications, test & measurement, and industrial equipment.
- Operating temperature range from -40°C to 85°C ensures versatility across environments.
Product Description
RS PRO SF10 Series Circular Connector model 206-5024 is a high-performance panel mount socket engineered for demanding industrial and laboratory environments. Designed with 2 gold-plated brass contacts, it provides robust and reliable electrical connections for both power and data applications. The female socket supports a push-pull coupling system, facilitating fast and secure connection/disconnection, especially valuable in equipment maintenance and quick setup situations.
Constructed with a chrome plated brass housing and gold-plated contacts, the connector offers excellent durability, corrosion resistance, and electrical conductivity. With an IP67 waterproof rating, it is perfectly suited for harsh industrial settings, ensuring continued operation in the presence of dust, moisture, and challenging conditions. The front panel mounting and straight orientation contribute to efficient integration into system panels, control cabinets, and instrumentation housings.
This connector supports solder termination, enabling solid and vibration-resistant wire attachments. The electrical specifications include a maximum voltage rating of 180V and a current rating of up to 5A, meeting the requirements for a broad range of equipment, including medical devices, telecom systems, and test & measurement infrastructure. Insulation resistance of 2000 MΩ and up to 500 mating cycles further enhance its long-term reliability.
The 206-5024 features a panel-hole cut-out size of 10 mm, accommodates cable outer diameters from 4 to 6.5 mm, and is compatible with wire sizes down to AWG 18. Its temperature operating range from -40°C to +85°C ensures reliable use both indoors and outdoors, in environments ranging from laboratories to manufacturing plants.
Applications include medical equipment (where stringent waterproofing and reliability are paramount), telecommunication panels, high-end test and measurement devices, and industrial automation setups. The SF10 Series connector can be easily interlinked with cable mount connectors for custom wiring systems, and is frequently chosen by engineers for its exceptional build quality and performance.
Browse more RS PRO connectors and industrial electronic solutions at EnvMart for reliable, high-quality components ready for professional applications.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum voltage rating of 180V and a current rating of up to 5A, making it suitable for various industrial applications.
It has an IP67 rating, ensuring it is waterproof and protected against dust, making it ideal for harsh environments.
The housing is made of chrome plated brass, and it features gold-plated brass contacts for enhanced electrical conductivity and corrosion resistance.
The operating temperature range is from -40°C to +85°C, allowing for versatility in various environments.
This connector features 2 contacts, specifically designed for power or data applications.
It supports solder termination, which ensures stable and efficient connectivity.
It is designed for front panel mounting, facilitating streamlined installation in control cabinets and instrumentation housings.
This model can endure up to 500 mating cycles, enhancing its reliability for repeated use.
The panel-hole cut-out size required for this connector is 10 mm.
It accommodates cable outer diameters ranging from 4 to 6.5 mm, allowing for flexibility in wiring.
It is suitable for various applications, including medical equipment, telecommunications, and test & measurement devices.
The insulation resistance is rated at 2000 MΩ, contributing to its reliable performance in various conditions.
