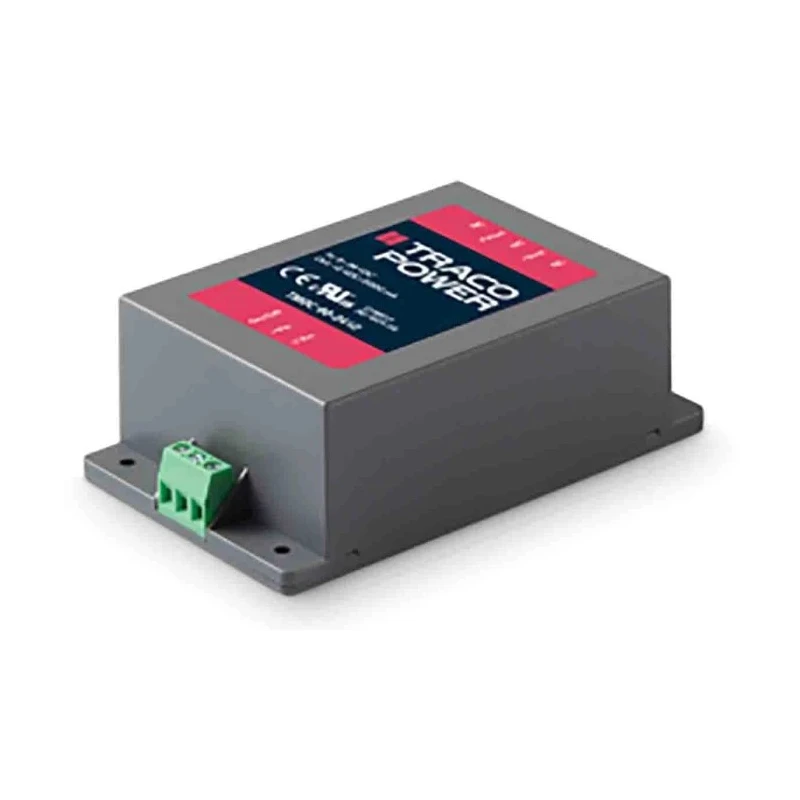

TRACOPOWER DC/DC Converter 19.2V 36V Input, 4.2A Output, 75°C Max, -40°C Min, High Efficiency, TEP 100-2415WIR-CMF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 92% |
| Length | 85mm |
| Model | TEP 100-2415WIR-CMF |
| Depth | 40.5mm |
| Gross Weight | 287g |
| Width | 61mm |
| Series | TEP 100 |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 331000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 100W |
| Maximum Input Voltage | 36V |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 19.2V |
| Output Current 1 | 4.2A |
| Isolation Voltage | 2.25kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | 26.4V |
Key Features
- Supports input voltage from 18V to 36V for versatile applications.
- Delivers 19.2V output at 4.2A, ensuring steady power supply.
- Operates efficiently with up to 92% efficiency for reduced energy loss.
- Provides isolation voltage up to 2.25kV for enhanced safety and device protection.
- Withstands harsh environments with -40°C minimum and 75°C maximum operating temperature.
- Features low ripple and noise at 100mV peak-to-peak for stable output.
- Compact design with 85mm length, 61mm width, and 40.5mm depth for space-constrained setups.
- MTBF of 331,000 hours ensures long-lasting reliability in industrial applications.
Product Description
The TRACOPOWER TEP 100-2415WIR-CMF is an advanced DC/DC Converter engineered to deliver dependable power conversion for a broad range of industrial and electronic applications. It accommodates a wide input voltage window from 18V to 36V, making it ideal for systems requiring flexibility and resilience in varying supply conditions.
With a primary regulated output voltage of 19.2V at 4.2A, and a secondary output of 26.4V, this converter is optimized for low ripple and minimal noise (100mV peak-to-peak), ensuring stable power delivery to sensitive electronics. The unit is rated for a maximum output power of 100W and offers high efficiency, reaching up to 92%, minimizing energy losses and heat generation.
The converter provides robust electrical isolation of up to 2.25kV and supports a 2:1 input ratio, making it suitable for applications requiring enhanced safety and protection from electrical surges and faults. Its design adheres to stringent operating temperature parameters, functioning reliably between -40°C and 75°C, and offers a Mean Time Between Failure (MTBF) of 331,000 hours, ensuring longevity and reliability in demanding environments.
Compact in form factor, the TEP 100-2415WIR-CMF measures 85mm in length, 61mm in width, and 40.5mm in depth, with a weight of 287g. The module is compatible with optional DIN-Rail mounting, facilitating integration into control panels and industrial enclosures.
Additional features include input filtering compliant with EN 55022 Class A, power good LED indicator, and a remote on/off function for convenient system management. The converter is particularly suitable for use in industrial automation, measurement technology, communications equipment, and transportation systems requiring robust, efficient DC power.
Explore further DC-DC Converters and discover more TRACOPOWER solutions in Electronics & Electricals to meet various application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an input voltage range from 18V to 36V, allowing for versatile applications in varying supply conditions.
The maximum output current of this unit is 4.2A, delivering a primary regulated output voltage of 19.2V.
It operates with high efficiency, reaching up to 92%, which minimizes energy losses and heat generation during operation.
The converter provides an isolation voltage of up to 2.25kV, enhancing safety and protection from electrical surges.
This unit measures 85mm in length, 61mm in width, and 40.5mm in depth, making it compact for space-constrained setups.
It can operate reliably in temperatures ranging from -40°C to 75°C, suitable for harsh environments.
The ripple and noise level is specified at 100mV peak-to-peak, ensuring stable output for sensitive electronics.
The MTBF for this converter is rated at 331,000 hours, indicating long-lasting reliability in industrial applications.
Yes, it includes a remote on/off function for convenient system management, enhancing operational flexibility.
The maximum output power of this converter is 100W, suitable for various industrial and electronic applications.
Yes, this model is compatible with optional DIN-Rail mounting, facilitating integration into control panels and industrial enclosures.
It is particularly suitable for use in industrial automation, measurement technology, communications equipment, and transportation systems.
