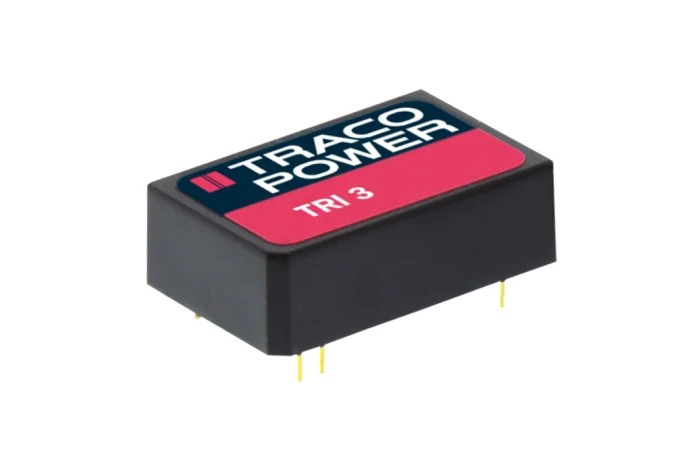

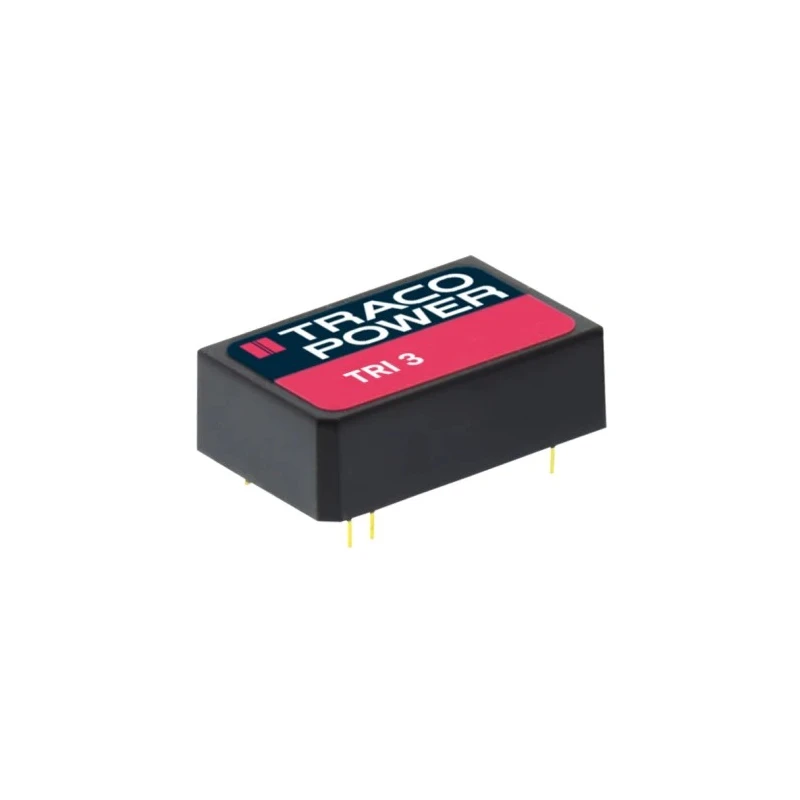

TRACOPOWER DC/DC Converter 5V Output, 700 mA, 3.5 W Through Hole TRI 3-0511
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 3 DC/DC Converter, 5V dc/ 700 mA, 9 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 31.8mm |
| Model | TRI 3-0511 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5815000h |
| Number of outputs | 1 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides a regulated 5V DC output for sensitive electronics.
- Delivers up to 700 mA output current with maximum output power of 3.5 W.
- Through-hole DIP package for robust PCB mounting.
- Features reinforced isolation rated up to 7kV DC for enhanced safety.
- Wide operating temperature range from minus 40 to plus 90 degrees Celsius.
- MTBF rated at 5,815,000 hours for high reliability in industrial settings.
- High efficiency at 82% reduces energy loss during conversion.
- Low no-load power consumption and protection from overload, overvoltage, and short circuit.
Product Description
The TRACOPOWER TRI 3-0511 DC/DC Converter is a compact, high-performance module designed to provide regulated power conversion for a wide range of industrial and electronic applications. This converter accepts low-voltage DC inputs from 4.5V to 9V and delivers a stable 5V DC output at up to 700 mA, making it suitable for powering sensitive digital circuits, control systems, and instrumentation.
With a maximum output power of 3.5 W, the TRI 3-0511 is built to support demanding loads while maintaining efficiency levels up to 82%. Its through-hole DIP package ensures reliable and straightforward PCB mounting, making integration into new or existing electronic assemblies both robust and convenient.
Safety is prioritized with reinforced isolation, rated for 7kV DC, designed to protect both the converter and connected equipment against voltage spikes and electrical faults. The module incorporates advanced transient immunity of 15 kV/μs, further safeguarding operations in environments with electrical noise or surges.
Engineered for extended operation, the converter features an MTBF of 5,815,000 hours, supporting long-term reliability in mission-critical setups. Its ultra-wide operating temperature range of minus 40 to plus 90 degrees Celsius means it can be deployed in extreme conditions without performance derating.
Additional protections include built-in overload, overvoltage, and short circuit safeguards, while no-load power consumption is minimized to promote energy efficiency.
TRACOPOWER's TRI 3-0511 DC/DC Converter is a preferred solution for industrial automation, laboratory instrumentation, telecommunications, and control panels where robust power conversion and electrical isolation are essential.
Browse more advanced power conversion modules and DC/DC converters from TRACOPOWER in the Electronics & Electricals category at EnvMart.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC and can deliver an output current of up to 700 mA.
The maximum output power of the TRI 3-0511 is 3.5 W.
It accepts input voltages ranging from 4.5V to 9V DC.
The dimensions of this unit are 31.8 mm in length, 20.3 mm in width, and 12 mm in depth.
The TRI 3-0511 features a reinforced isolation rated at 7 kV DC.
It operates effectively within a temperature range of -40°C to +90°C.
This DC/DC converter has an efficiency of 82%, reducing energy loss during conversion.
It includes built-in protections against overload, overvoltage, and short circuits.
This model has a single output.
The mean time between failures (MTBF) for this unit is rated at 5,815,000 hours.
It is designed for through-hole mounting, making it suitable for robust PCB integration.
This model is suitable for industrial automation, laboratory instrumentation, telecommunications, and control panels.
