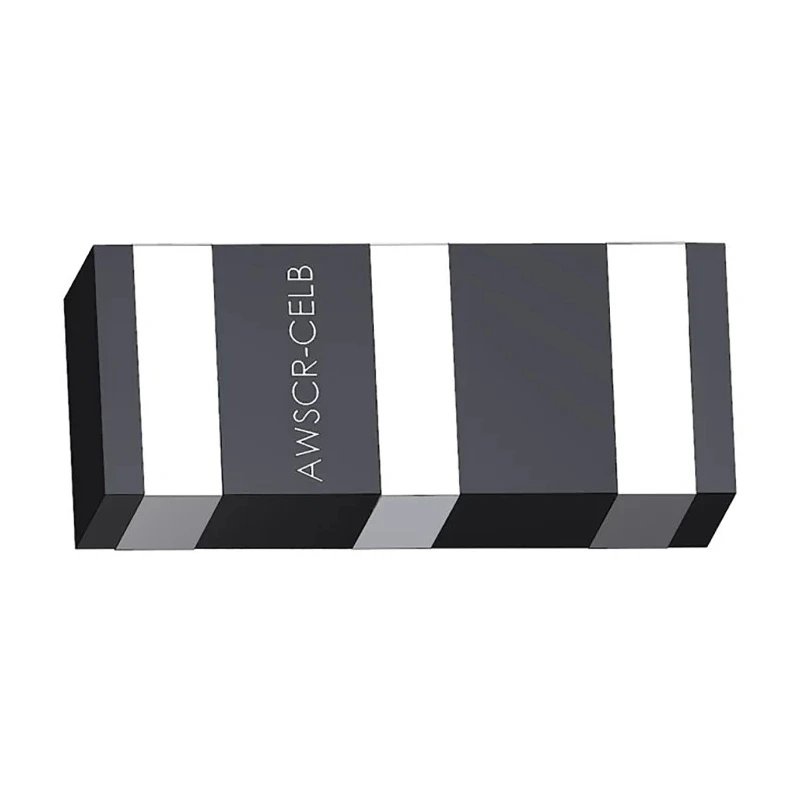

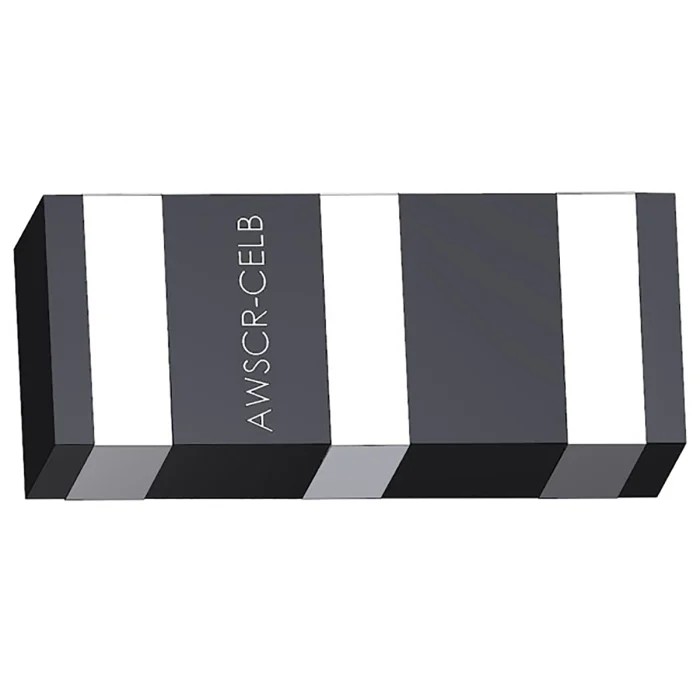

Abracon Ceramic Resonator 12 MHz 10 pF 3-Pin Tape & Reel Surface Mount AWSCR-12.00CELB-C10-T3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | AWSCR-12.00CELB-C10-T3 |
| Packaging | Tape & Reel |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | AWSCR-CELB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 10pF |
| Resonance Frequency | 12MHz |
| Resonance Resistance | 40Ω |
Key Features
- Operates at a resonance frequency of 12 MHz for stable timing in electronic circuits.
- Offers a load capacitance of 10 pF suitable for integrated circuit support.
- Features a 3-pin tape and reel packaging for efficient automated assembly.
- Low resonance resistance of 40 ohm minimizes energy loss and supports signal clarity.
- Achieves frequency tolerance of ±0.5 percent for precision control requirements.
- Supports wide operating temperature range from -40°C to 125°C for industrial reliability.
- Suitable for microprocessor, metering system, remote control, and electric appliance applications.
- RoHS compliant for environmental and regulatory assurance.
Product Description
Abracon AWSCR-12.00CELB-C10-T3 ceramic resonator is a high-performance passive component engineered for frequency stabilization in electronic circuits. This resonator operates at a resonance frequency of 12 MHz with a load capacitance of 10 pF, making it ideal for timing and microprocessor support in various industrial and commercial designs.
Constructed in a compact surface mount form factor, it features a 3-pin configuration and comes in tape and reel packaging for easy integration into automated manufacturing processes. The device has a length of 3.2 mm, width of 1.3 mm, and a height of just 1 mm, providing space-saving options for PCB layouts.
With a resonance resistance of just 40 ohm, the AWSCR-12.00CELB-C10-T3 ensures minimal energy loss and reliable signal stability. It maintains a frequency tolerance of ±0.5 percent and frequency aging of ±0.1 percent per year, contributing further to its precision and long-term reliability.
Operating within a wide temperature range from -40°C to 125°C, this resonator is suited for robust industrial environments and applications such as metering systems, microprocessors, remote controls, industrial controls, and electric appliances. The solder termination type enhances secure mounting and connection, while its RoHS certification guarantees compliance with environmental standards.
Ideal for applications requiring industry-standard footprint and built-in capacitance, Abracon's AWSCR-12.00CELB-C10-T3 ceramic resonator offers stable performance and longevity in demanding electronic assemblies.
Explore more Abracon frequency control components and Ceramic Resonators in EnvMart’s Electronics Components category for high-quality solutions to diverse industrial and commercial timing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonator operates at a resonance frequency of 12 MHz, providing stable timing for electronic circuits.
It offers a load capacitance of 10 pF, suitable for integrated circuit support.
The resonance resistance is 40 ohms, which helps minimize energy loss and supports signal clarity.
The dimensions are 3.2 mm in length, 1.3 mm in width, and 1 mm in height.
It operates within a wide temperature range from -40°C to 125°C, making it suitable for industrial applications.
It comes in tape and reel packaging, which facilitates efficient automated assembly processes.
The termination type is solder, enhancing secure mounting and connection.
It maintains a frequency tolerance of ±0.5 percent, ensuring precision control requirements are met.
It is suitable for applications such as microprocessors, metering systems, remote controls, and electric appliances.
It is RoHS compliant, ensuring it meets environmental and regulatory standards.
This model belongs to the AWSCR-CELB series, designed for frequency stabilization in electronic circuits.
The resonator features a pin count of 3, which is typical for surface mount applications.
