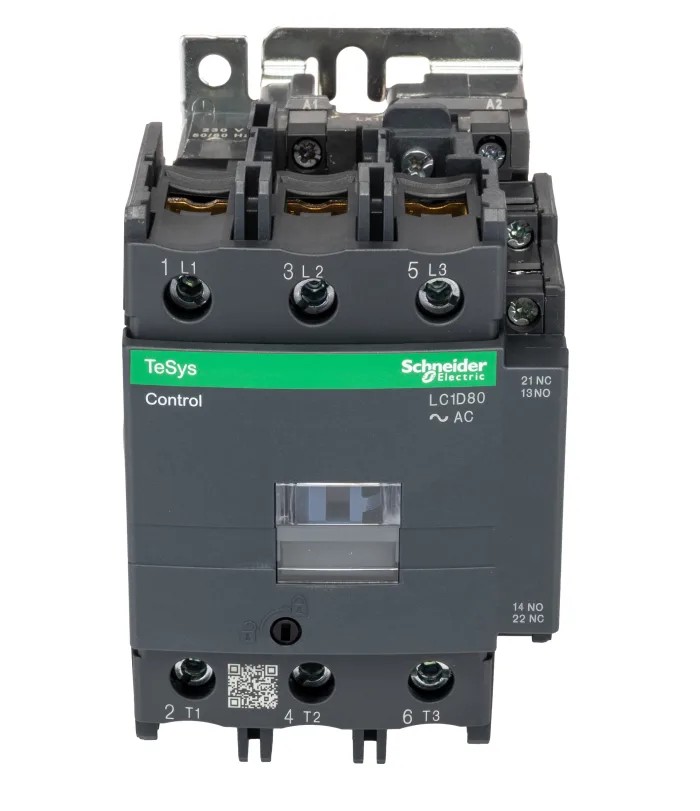

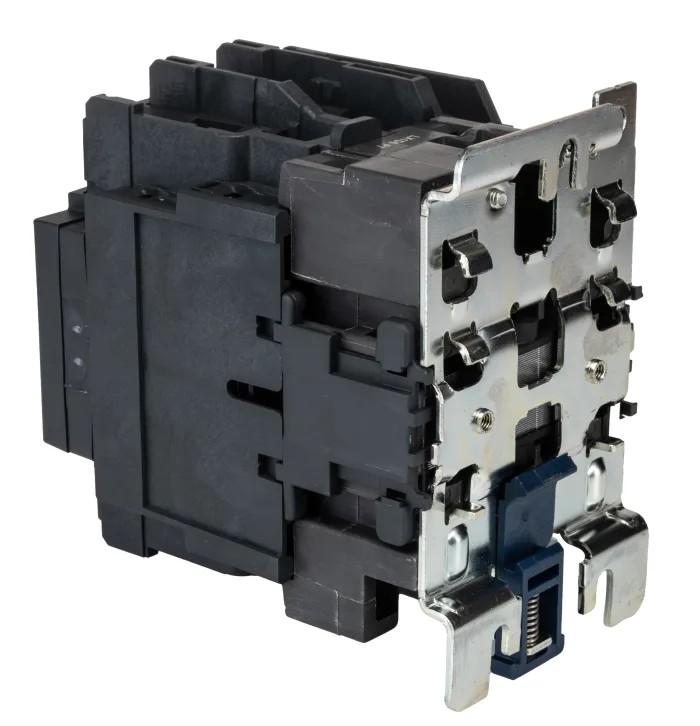

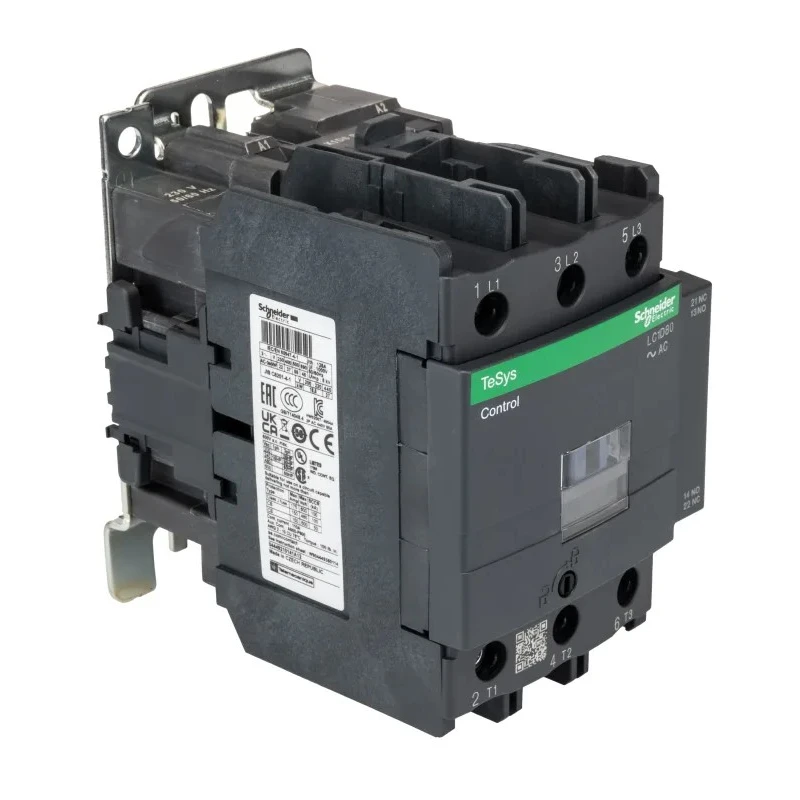

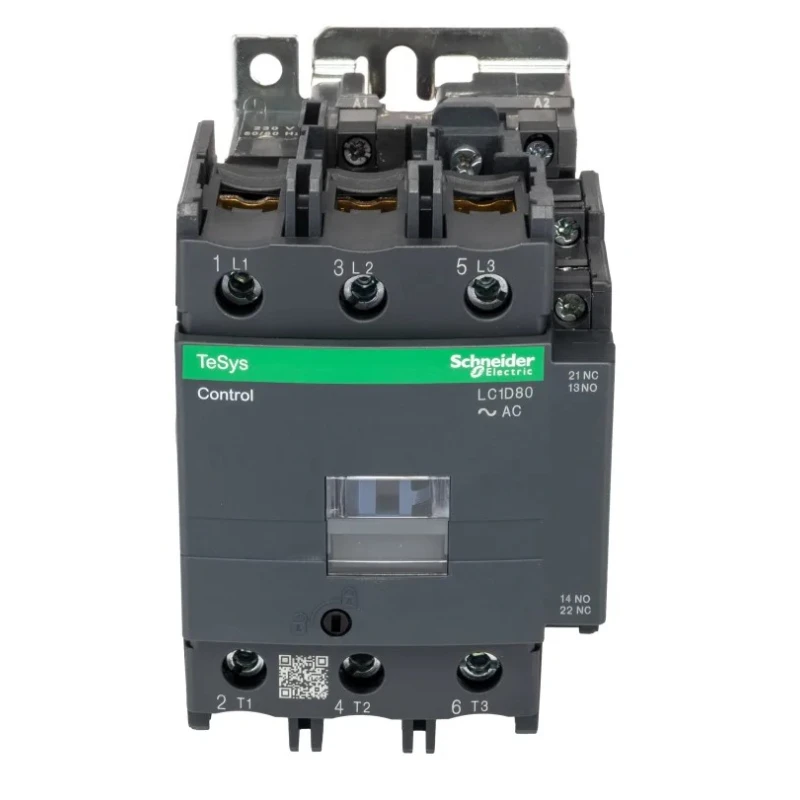

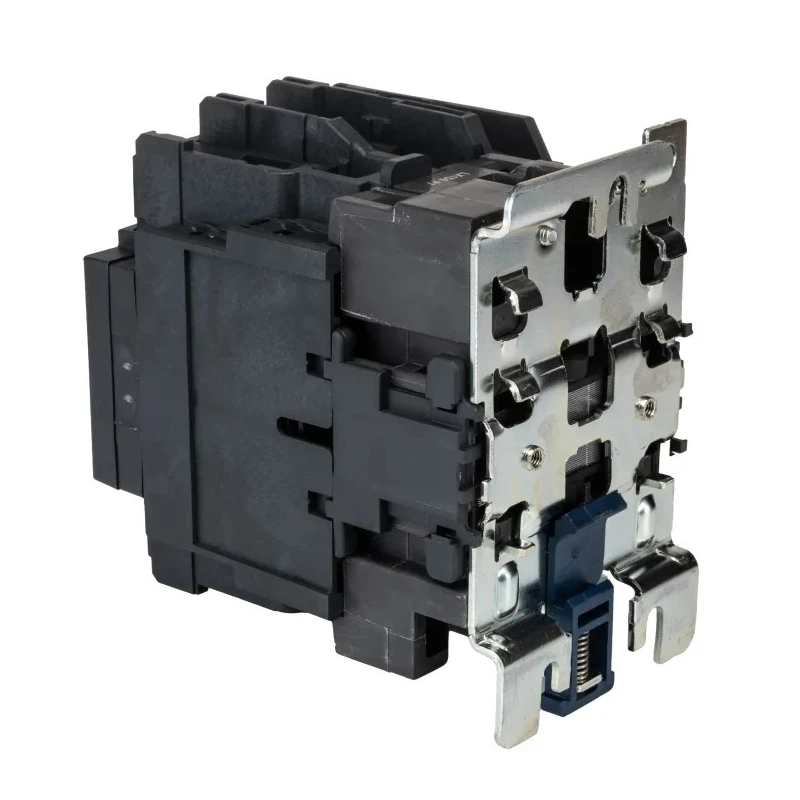

Schneider Electric TeSys D Contactor 230V AC Coil, 80A, 37kW, 3-Pole, DIN Rail, LC1D80P7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 127mm |
| Model | LC1D80P7 |
| Depth | 130mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 37kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN, IEC, UL |
| Contact Voltage | 300, 690V dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
Key Features
- High-performance industrial contactor suitable for motor control and resistive loads.
- 230V AC coil enables compatibility with standard industrial power circuits.
- Handles 80A operational current and 37kW power for robust switching.
- Compact 3-pole (3NO) DIN rail mount design facilitates easy installation.
- Equipped with 1 NO and 1 NC auxiliary contacts for versatile control.
- Screw terminals provide secure and efficient wiring connections.
- Certified to EN, IEC, and UL standards for quality assurance.
- Supports up to 3600 cycles/hour operating rate and environments up to 60°C.
Product Description
The Schneider Electric LC1D80P7 TeSys D Contactor is engineered for demanding industrial applications requiring reliable motor control and power switching. Featuring a durable DIN rail mount and robust 3-pole (3NO) configuration, this contactor is capable of handling up to 80A operational current and 37kW power, making it an optimal choice for motors and resistive loads in automation panels and power distribution systems.
Utilizing a 230V AC coil, the LC1D80P7 ensures seamless integration in standard industrial power circuits. Its built-in auxiliary contacts (1 NO and 1 NC, with mirror certification), support advanced automation and safety schemes. The compact design (85mm width, 127mm length, 130mm depth) facilitates straightforward installation in space-constrained control cabinets.
Reliable screw terminals provide secure electrical connectivity for both load and auxiliary wiring, complemented by high-performance screw clamp terminals for control circuits. The contactor is rated for 25HP at 200-208VAC, 30HP at 240VAC, and up to 60HP at 480VAC/600VAC three-phase systems, with SCCR up to 100kA when paired with appropriate circuit protection.
Operational versatility is ensured with certified compliance to EN, IEC, UL, CSA, CCC, EAC, and marine standards. It operates reliably in environments up to 60°C, with an operating rate of up to 3600 cycles/hour. As a Green Premium product, it meets RoHS and REACh environmental standards and is designed for disassembly, supporting sustainable industrial operations.
The LC1D80P7 TeSys D Contactor caters to industrial settings including manufacturing plants, automation systems, commercial electrical panels, and HVAC installations. It is ideal for controlling motors, managing resistive loads, and supporting power distribution schemes in advanced industrial environments.
Explore more Schneider Electric industrial solutions and related products in the Contactors & Auxiliary Contacts category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D80P7 contactor has an operational current rating of 80A.
This model has a power rating of 37kW.
The coil voltage for this contactor is 230V AC.
The dimensions of the LC1D80P7 contactor are 127mm in length, 85mm in width, and 130mm in depth.
This contactor supports DIN rail mounting, which facilitates easy installation.
The LC1D80P7 contactor is a 3-pole (3NO) configuration.
The maximum operating temperature for this model is 60°C.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
This contactor complies with EN, IEC, and UL standards.
The operational cycle rate of the LC1D80P7 contactor is up to 3600 cycles per hour.
This contactor is intended for motor control and managing resistive loads in industrial applications.
The country of origin for this contactor is India.
