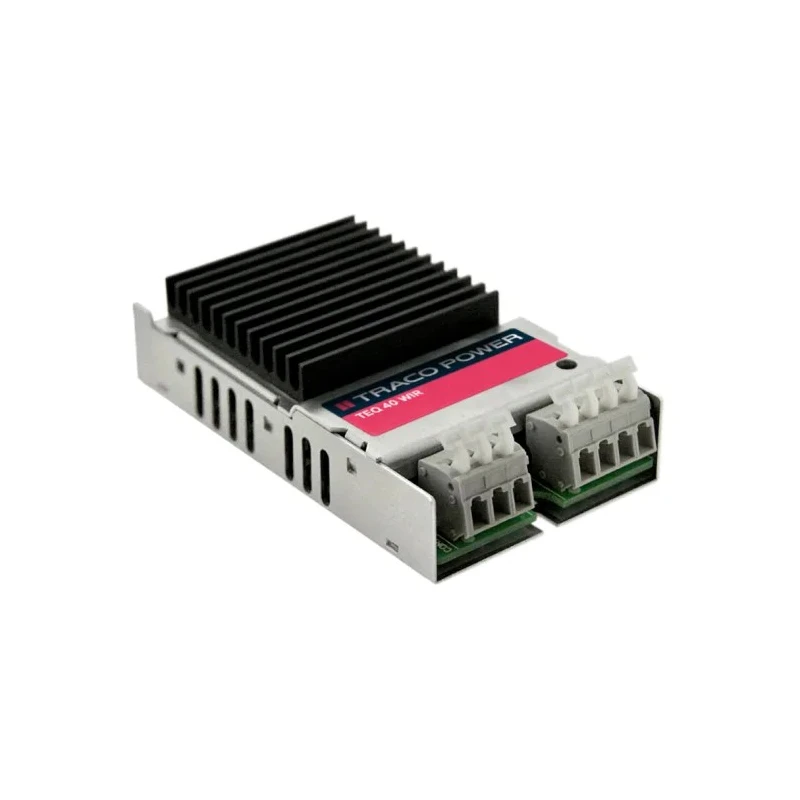

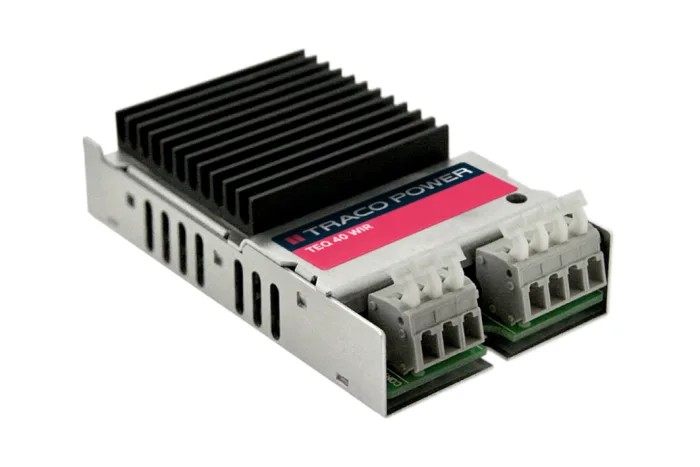

TRACOPOWER DC-DC Converter 24V/75V Input, 24V Dual Output, Chassis Mount, 40W Max, TEQ 40-4825WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 40WIR DC/DC Converter, 24V dc/, 75V |
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 103mm |
| Model | TEQ 40-4825WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 40WIR |
| Maximum Operating Temperature | 92°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 830mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Output Voltage 2 | -24V dc |
| Input Ratio1 | 6 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Wide 18V to 75V DC input range offers flexibility in demanding environments.
- Provides 24V dual output at up to 830mA for each channel.
- High isolation voltage of 1.6kV DC for safety and reliability.
- Rugged chassis-mount construction suitable for railway and industrial use.
- Efficient power conversion (up to 90%) and built-in protection features including short-circuit and over-temperature protection.
- Operating temperature extends from minus 40 to plus 92 degrees Celsius, supporting harsh conditions.
- Compact dimensions (103mm x 57.2mm x 26.1mm) to ease installation.
- High MTBF of 1,000,000 hours indicating outstanding reliability.
Product Description
The TRACOPOWER TEQ 40-4825WIR is an industrial-grade DC-DC converter designed for demanding environments such as railway and heavy industrial applications. This module features an ultra-wide 4:1 input voltage range from 18V to 75V DC, making it compatible with a wide variety of power sources while ensuring resilience to voltage fluctuations.
Delivering dual 24V DC outputs at up to 830mA per channel, the TEQ 40-4825WIR is ideal for powering control electronics, sensors, PLCs, and other process automation equipment in environments where reliable isolated DC conversion is critical. The converter achieves high conversion efficiency (up to 90%) and is housed in a rugged chassis-mount metal enclosure which provides robust protection and efficient thermal management.
With a maximum continuous power output of 40W and an isolation voltage rating of 1.6kV DC, this unit assures operational safety for sensitive downstream systems. Key integrated protection features include under-voltage lockout, short-circuit protection, and over-temperature protection, maximizing equipment lifespan and minimizing downtime.
The module operates over a broad ambient temperature range from -40°C to +92°C, making it suitable for extreme industrial and railway operating conditions. With a mean time between failures (MTBF) of 1,000,000 hours, it is built for continuous, maintenance-free, long-term deployment. Physical dimensions of the unit are 103mm (L) x 57.2mm (W) x 26.1mm (D) for compact mounting versatility. It accommodates direct chassis mounting where PCB installation is not possible.
The TEQ 40-4825WIR comes equipped with 7 connection pins and supports two isolated outputs. The construction adheres to leading industry standards for railway power supplies. This converter is widely used in sectors such as industrial automation, process control, power distribution, rail transportation electronics, and any application requiring compact, reliable, isolated DC voltage conversion with high immunity to input power disturbances.
Explore more advanced DC-DC Converters and power supply solutions from TRACOPOWER in the DC Converter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TEQ 40-4825WIR has an ultra-wide input voltage range from 18V to 75V DC.
This model provides dual 24V DC outputs, with each channel capable of delivering up to 830mA.
The maximum continuous power output of this unit is 40W.
The TRACOPOWER TEQ 40-4825WIR achieves an efficiency of up to 90%.
It has an isolation voltage rating of 1.6kV DC, ensuring safety for downstream systems.
The dimensions of this unit are 103mm in length, 57.2mm in width, and 26.1mm in depth.
This model operates over a temperature range from -40°C to +92°C, suitable for extreme conditions.
This converter features two isolated outputs.
The TRACOPOWER TEQ 40-4825WIR is designed for chassis mounting.
It includes built-in protection features such as short-circuit protection, over-temperature protection, and under-voltage lockout.
The MTBF for the TEQ 40-4825WIR is 1,000,000 hours, indicating high reliability.
This converter is suitable for applications in industrial automation, process control, and rail transportation electronics.
