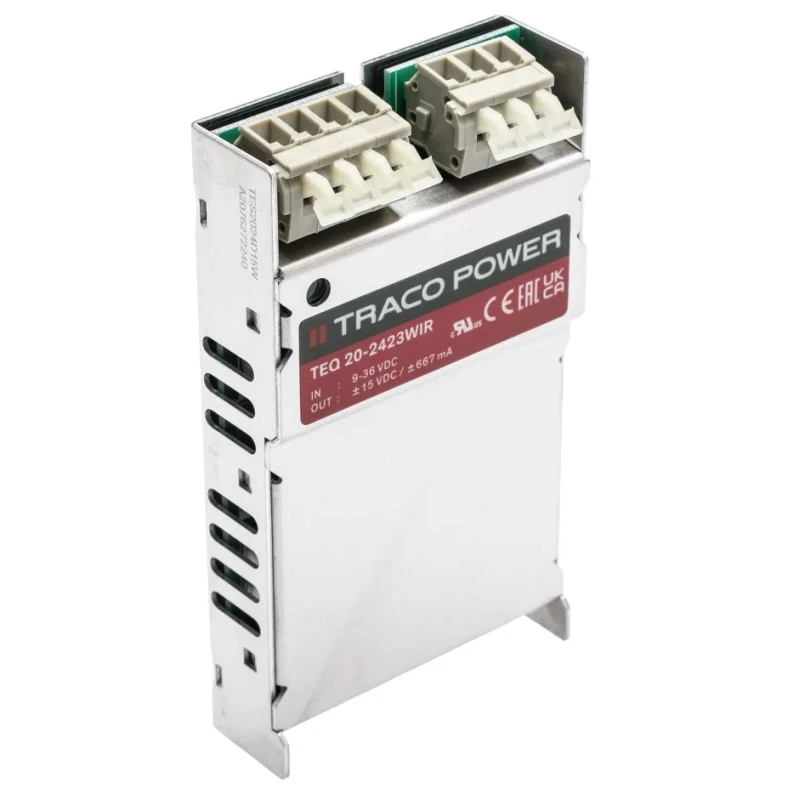

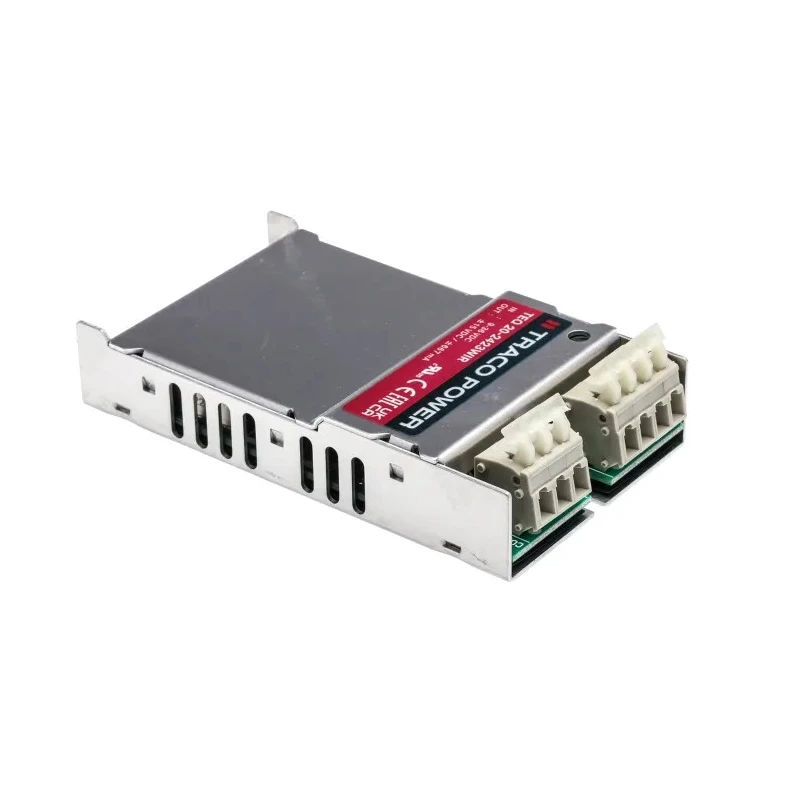

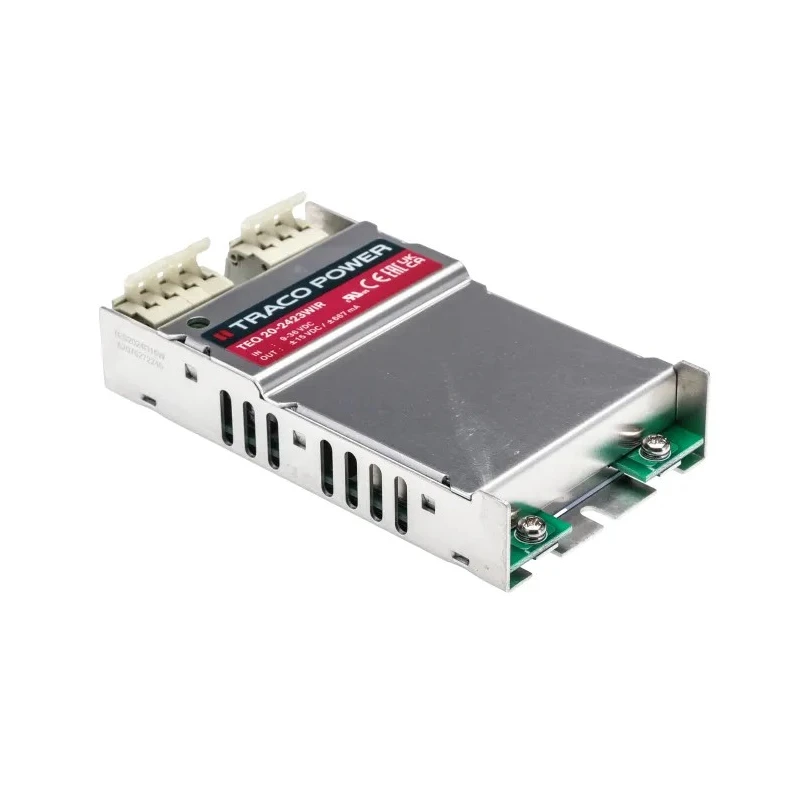

TRACOPOWER DC-DC Converter Chassis Mount ±15V DC Output, 9 - 36V DC Input, 20W, 88% Efficiency TEQ 20-2423WIR

The TRACOPOWER TEQ 20-2423WIR is a high-performance DC-DC converter designed for chassis mounting in industrial, railway, and automation applications. It features dual ±15V DC regulated outputs at up to 667mA, delivering a total output power of 20W. Its wide 9 - 36V DC input voltage range makes it highly versatile for systems with varying supply conditions.

Engineered for reliability, the converter achieves 88% efficiency, ensuring effective power conversion with minimal thermal output. Its robust design includes protection mechanisms against overvoltage, overtemperature, and short circuits, safeguarding connected equipment and prolonging operational life. EN 55032 electromagnetic compatibility compliance reduces interference in sensitive environments.

Built for demanding conditions, the TEQ 20-2423WIR operates across an extended ambient temperature range of -40°C to +93°C, suitable for both harsh outdoor and controlled indoor locations. The unit's chassis mount form factor, 7-pin connection, and compact dimensions (103mm length, 57.2mm width, 26.1mm depth) facilitate straightforward integration into a wide variety of enclosures or panels.

Featuring dual isolated outputs and a 2.25kV DC isolation voltage, this converter is ideal for applications requiring electrical isolation between input and output circuits. It offers an impressive MTBF of 1,600,000 hours, making it suitable for mission-critical systems such as railway electronics, automated industrial machinery, and ruggedized electronic installations.

Practical features include a built-in LED indicator for monitoring output status, enhancing usability. The converter's operating ratio of 1:6 supports compatibility with multi-voltage source environments. Its advanced protection suite ensures safe operation under fault conditions, while EN 55032 power supply compliance further supports safe and interference-free deployment.

Typical applications include railway power distribution, industrial automation control, electronic devices in hostile environments, and machinery needing high reliability and wide voltage tolerance. With high efficiency and robust construction, the TEQ 20-2423WIR is well suited for demanding sectors such as manufacturing, infrastructure, transport, and process control.

Wide input range enables use with varied DC power sources. Dual ±15V regulated outputs suitable for analog, logic, and sensor circuits. Chassis mount form streamlines integration and serviceability. Long MTBF reduces maintenance and operational downtime.

Protective circuitry ensures safe operation and resilience. Browse other industrial and railway-grade DC-DC Converters from TRACOPOWER and related categories on EnvMart.
