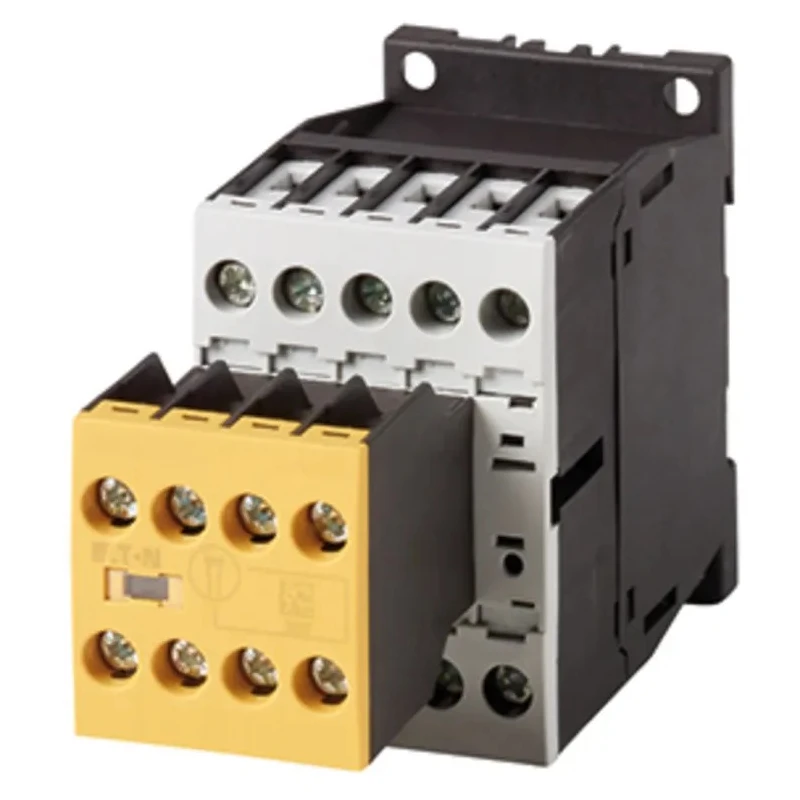

Eaton DILMS Safety Contactor 3-Pole 7A 3kW, 120V AC Coil, 400V AC, Screw Terminals, 2 191701 DILMS7-23(110V50HZ,120V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control |
| Length | 45mm |
| Model | 191701 DILMS7-23(110V50HZ,120V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL, IEC |
| Contact Voltage | 400V ac |
| Coil Voltage | 120V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 7A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 7A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
| Eaton DILM Contactor, 110 V Coil, 3-Pole, 7 A, 3.5 kW, 400 VBrand | Eaton |
Key Features
- Reliable safety contactor with integrated mirror and interlocked opposing contacts for enhanced protection.
- Includes top-mounted, non-detachable auxiliary contact block with 2 NO and 3 NC configuration.
- Features yellow cover and inspection window for safe status monitoring and quick identification.
- Supports operational current of 7A and power rating of 3kW for 400V AC applications.
- Robust screw clamp terminals and table mount design for secure installation.
- Suitable for emergency-stop applications with controlled start, meeting Category 4 safety standards.
- Certified to CSA, UL, and IEC standards for dependable industrial use.
- Wide operating temperature range from -25°C to 60°C for diverse environments.
Product Description
The Eaton 191701 DILMS7-23(110V50HZ,120V60HZ) safety contactor is engineered for high-reliability motor control in industrial environments. This advanced 3-pole contactor features a 120V AC coil, rated for operational currents up to 7A and power handling up to 3kW. Its robust configuration is ideal for connecting and disconnecting three-phase electrical circuits, enabling safe operation of motors and heavy equipment.
To enhance safety, the DILMS safety contactor incorporates integrated mirror contacts and interlocked opposing contacts. These features ensure accurate monitoring and reliable prevention of unsafe switching conditions. The contactor’s distinctive yellow cover aids in rapid identification within industrial control cabinets, while the built-in inspection window above the switch-position indicator enables real-time monitoring of operating status and manual activation prevention.
For advanced control requirements, this model includes a top-mounted auxiliary contact block with 2 NO (normally open) and 3 NC (normally closed) contacts, providing five auxiliary contacts for flexible signaling and interlocking. The screw-clamp terminal design ensures robust, vibration-resistant connections recommended for industrial panels. Table mounting provides versatility for integration into various enclosure designs.
The Eaton DILMS7-23 contactor meets CSA, UL, and IEC standards, guaranteeing compliance with international safety and performance norms. Its wide operating temperature range from -25°C to 60°C allows installation in harsh environments. The contactor supports emergency-stop and controlled start applications, meeting safety Category 4 requirements for critical industrial machine control circuits.
Compact construction delivers flexibility for panel building: with a length of 45mm, width of 117mm, and depth of 68mm, the contactor fits neatly among other control gear without compromising space. Operational current rating is 7A and power rating is 3kW for 400VAC systems; control circuit voltage is 110V AC.
Industrial applications include manufacturing plants, material handling systems, HVAC control panels, water treatment facilities, and any setting requiring reliable motor protection and safety compliance. The combination of mechanical reliability, status indication, and auxiliary contact versatility makes this contactor a preferred solution for advanced industrial automation and machine safeguarding.
Explore more solutions in the Power Contactors category or browse Eaton's full range of industrial control gear on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational current rating of this model is 7A.
It has a power rating of 3kW for 400V AC applications.
The coil voltage for this model is 120V AC.
This safety contactor features a 3-pole configuration.
The dimensions are 45mm in length, 117mm in width, and 68mm in depth.
It uses screw clamp terminals for secure connections.
The operating temperature range is from -25°C to 60°C.
It is certified to CSA, UL, and IEC standards.
This model includes a top-mounted auxiliary contact block with 2 normally open (NO) and 3 normally closed (NC) contacts.
It is suitable for emergency-stop applications and controlled start operations in industrial environments.
Its primary function is motor control, providing reliable operation for three-phase electrical circuits.
The yellow cover aids in rapid identification and includes an inspection window for monitoring the operating status.
