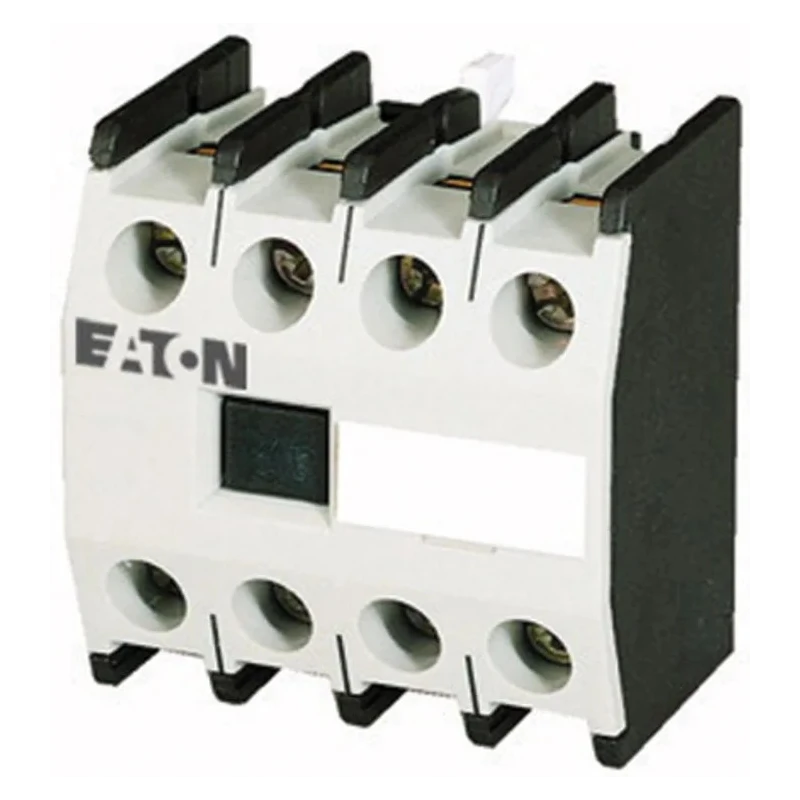

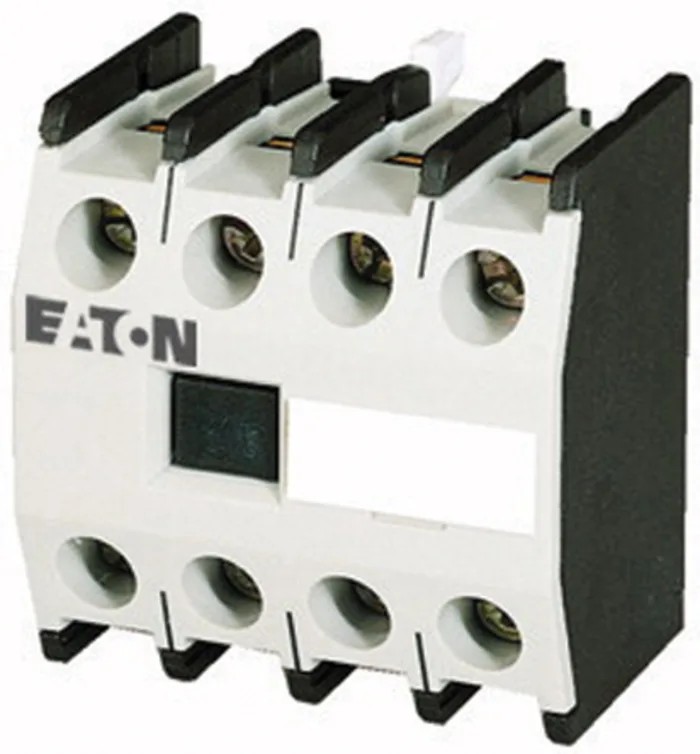

Eaton Auxiliary Contact 4 Contact 2 NC/2 NO DILM Front Mount, 10 A Current, 220 V dc, 500 V ac 277953 DILM150-XHIV22
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Model | 277953 DILM150-XHIV22 |
| Mount Type | Front |
| Series | DILM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Mounting Location | Front Side |
| Number of Contacts | 4 |
| Contact Voltage | 220, 500V dc |
| Normal State Configuration | 2 NC/2 NO |
| Contact Current | 10A |
| Operational Current Ie | 6A |
| Pole and Throw Configuration | 4PST |
| Mechanical Durability | 1.3Mcycles |
| Rated Insulation Voltage Ui | 690V |
Key Features
- Designed for use with DILM series contactors offering reliable front mount installation.
- Supports a contact current rating of 10 A and operational current of 6 A, suitable for a variety of industrial control applications.
- Includes screw terminals for secure electrical connections ensuring durability.
- Rated insulation voltage of 690 V and mechanical durability of 1.3 million cycles for long service life.
- Operates safely within a temperature range of -25°C to 60°C suitable for industrial environments.
- Compatible with the SmartWire-DT® communication system enhancing system integration.
- Minimizes heat dissipation, improving energy efficiency during operation.
- Front side mounting allows easy assembly without tools, improving maintenance efficiency.
Product Description
Eaton 277953 DILM150-XHIV22 Auxiliary Contact is a 4-contact block featuring a 2 NC/2 NO normal state configuration, engineered for front mounting on DILM series contactors. Rated for 10 A contact current at 220 V dc and 500 V ac, this device offers exceptional reliability for electrical motor starters and industrial control systems.
Manufactured to support a mechanical durability of up to 1.3 million cycles, and with a rated insulation voltage of 690 V, it ensures sustained performance in demanding operational conditions. Screw terminal connections provide firm and safe electrical contacts, while the front side mounting facilitates quick and tool-free installation.
Its operational current of 6 A allows compatibility with various control circuit requirements. Designed to operate within temperatures from -25°C to 60°C, it addresses a wide variety of industrial environmental conditions.
This auxiliary contact supports integration with the SmartWire-DT® communication system, facilitating advanced connectivity and monitoring in automated systems. The design minimizes heat dissipation enhancing energy efficiency and extending operational reliability over long periods of use.
Typical applications include integration in electric motor starters, control systems, power circuits, and electrical signalling equipment within industrial, manufacturing, and automation sectors.
Designed for use with DILM series contactors offering reliable front mount installation. Supports a contact current rating of 10 A and operational current of 6 A, suitable for a variety of industrial control applications.
Includes screw terminals for secure electrical connections ensuring durability. Rated insulation voltage of 690 V and mechanical durability of 1.3 million cycles for long service life. Operates safely within a temperature range of -25°C to 60°C suitable for industrial environments.
Compatible with the SmartWire-DT® communication system enhancing system integration. Minimizes heat dissipation, improving energy efficiency during operation. Front side mounting allows easy assembly without tools, improving maintenance efficiency.
Explore the range of Eaton electrical control products and Auxiliary Contacts on EnvMart for high-quality industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this auxiliary contact is 10 A.
The operational current for this model is 6 A.
The rated insulation voltage is 690 V.
It has a mechanical durability of 1.3 million cycles.
This model operates safely within a temperature range of -25°C to 60°C.
It features front side mounting for easy assembly without tools.
It includes screw terminals for secure electrical connections.
The normal state configuration is 2 NC (Normally Closed) and 2 NO (Normally Open).
It can handle contact voltages of 220 V dc and 500 V ac.
This auxiliary contact is designed for the DILM series contactors.
Yes, it is compatible with the SmartWire-DT® communication system.
It is suitable for integration in electric motor starters, control systems, power circuits, and electrical signalling equipment.
