Eaton Auxiliary Contact 2 Contact 1 NO/1 NC Front Mount 16 A 220 V dc 500 V ac 283463 DILM150-XHIA11

Free Delivery in India | Lowest Global Shipping Charges

Eaton Auxiliary Contact 2 Contact 1 NO/1 NC Front Mount 16 A 220 V dc 500 V ac 283463 DILM150-XHIA11

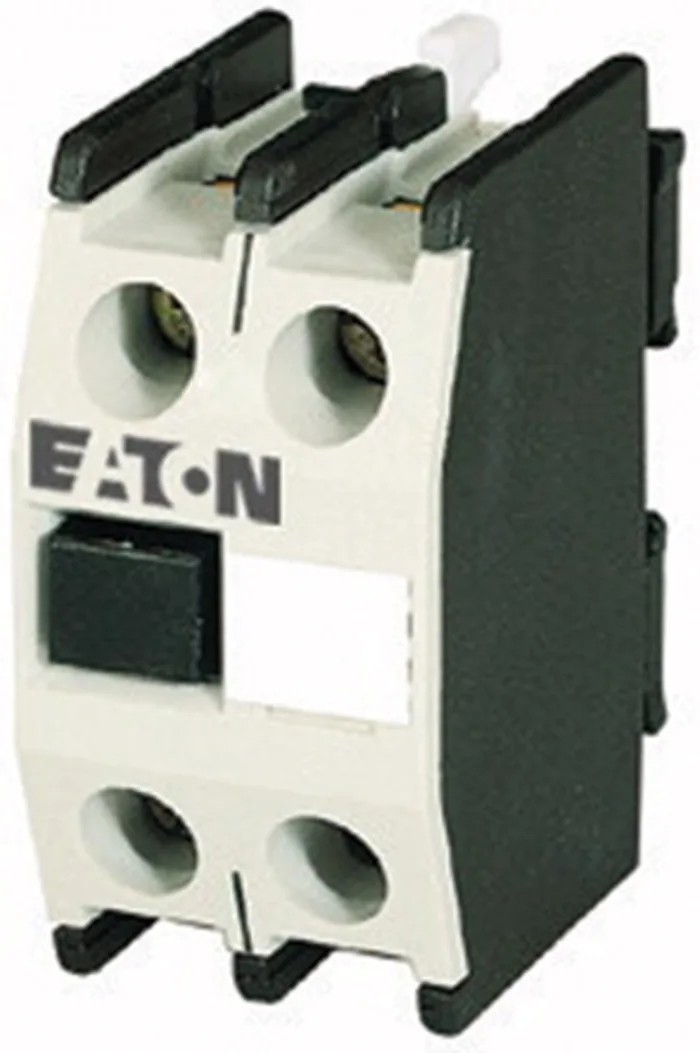

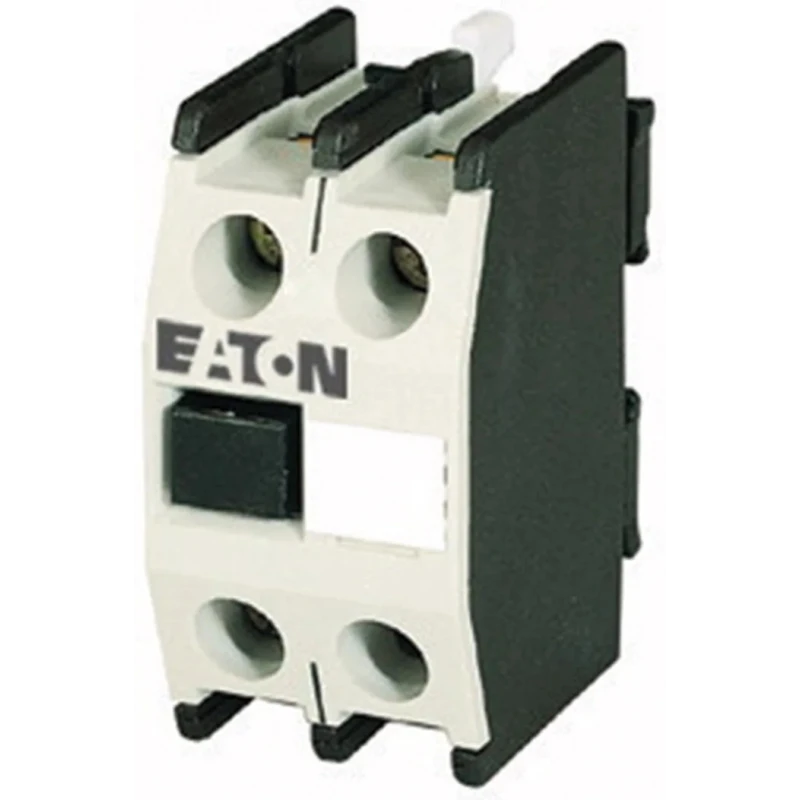

Name: Eaton Auxiliary Contact 2 Contact 1 NO/1 NC Front Mount 16 A 220 V dc 500 V ac 283463 DILM150-XHIA11
Brand: Eaton
SKU: 193190
Price: 20.33 USD
Availability: InStock



Category Auxiliary Contact Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Model	283463 DILM150-XHIA11
Mount Type	Front
Series	DILM40 - DILM170
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Standards/Approvals	IEC/EN 60947, CSA, VDE 0660, UL
Number of Contacts	2
Contact Voltage	220, 500V dc
Normal State Configuration	1 NO/1 NC
Contact Current	16A
Operational Current Ie	6A
Pole and Throw Configuration	DPST
Mechanical Durability	1300000Operations
Rated Insulation Voltage Ui	690V
Cooper Bussmann 250mA Cartridge Fuse, 6.3 x 32mmBrand	Cooper Bussmann

Key Features

Provides a reliable switching solution for DILM40 to DILM170 motor contactors.
Features front mounting and screw terminal type for easy installation.
Supports a contact current of 16 A with a rated insulation voltage of 690 V.
Designed for operational currents up to 6 A with high mechanical durability of 1,300,000 operations.
Operational temperature range from -25°C to 60°C suitable for demanding environments.
Complies with IEC/EN 60947, CSA, VDE 0660, and UL standards.
Compatible with SmartWire-DT® communication system for advanced connectivity.
Ideal for industrial motor starters, control systems, and electrical signalling equipment.

Product Description

Eaton 283463 DILM150-XHIA11 Auxiliary Contact is a 2-contact module with one Normally Open (NO) and one Normally Closed (NC) contact, designed for front mounting compatibility with the DILM40 to DILM170 series motor contactors. It operates with a contact current rating of 16 A and supports voltage levels of 220 V dc and 500 V ac, fitting a range of industrial automation and control applications.

This auxiliary contact offers high operational reliability and a long mechanical lifespan guaranteed by 1,300,000 durable operations. It is engineered to withstand harsh industrial environments with an operational temperature range from -25°C to 60°C. The device also supports an operational current of 6 A and has a rated insulation voltage of 690 V, making it robust for control and power circuits.

Designed for ease of installation, this auxiliary contact features front mounting and screw terminals. It is compatible with the SmartWire-DT® communication system, enabling seamless integration into advanced electrical networks. The compact design provides minimized heat dissipation, contributing to energy saving in applications.

Typical uses include electric motor starters, control systems, electrical power circuits, and control signalling equipment across industrial, manufacturing, and automation sectors. Eaton’s DILM family auxiliary contacts ensure efficient and secure motor control suited for AC-4 jogging and other challenging operational conditions.

Reliable 2-contact auxiliary switching solution for DILM40 to DILM170 contactors. High mechanical durability rated at 1,300,000 operations. Compatible with SmartWire-DT® for advanced communication networks. Wide operating temperature range from -25°C to 60°C for robust performance.

Conforms to IEC/EN 60947, CSA, VDE 0660, and UL standards ensuring quality and safety. Minimizes heat dissipation for efficient energy use. Front mount with screw terminals for ease of installation. Supports 16 A contact current with rated insulation voltage of 690 V.

Explore more in our Electronics & Electricals category for Auxiliary Contacts and related control gear at EnvMart, your reliable industrial components source.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a contact configuration of 1 Normally Open (NO) and 1 Normally Closed (NC) contact, making it suitable for various control applications.

It supports a maximum contact current of 16 A, providing reliable operation in industrial applications.

This auxiliary contact operates at voltage levels of 220 V dc and 500 V ac, accommodating a range of electrical systems.

The rated insulation voltage for this auxiliary contact is 690 V, ensuring it can handle high voltage applications safely.

It operates effectively within a temperature range of -25°C to 60°C, making it suitable for demanding environments.

This model has a mechanical durability rated for 1,300,000 operations, ensuring long-lasting performance in applications.

It features a front mounting design, which simplifies installation in various setups.

Yes, it complies with IEC/EN 60947, CSA, VDE 0660, and UL standards, ensuring quality and safety in its applications.

This unit is equipped with screw terminals, facilitating easy and secure connections during installation.

It is designed for compatibility with the DILM40 to DILM170 series motor contactors, enhancing its versatility in control systems.

The operational current rating for this model is 6 A, which allows for effective control in various applications.

Yes, it is compatible with the SmartWire-DT® communication system, enabling advanced connectivity in electrical networks.
