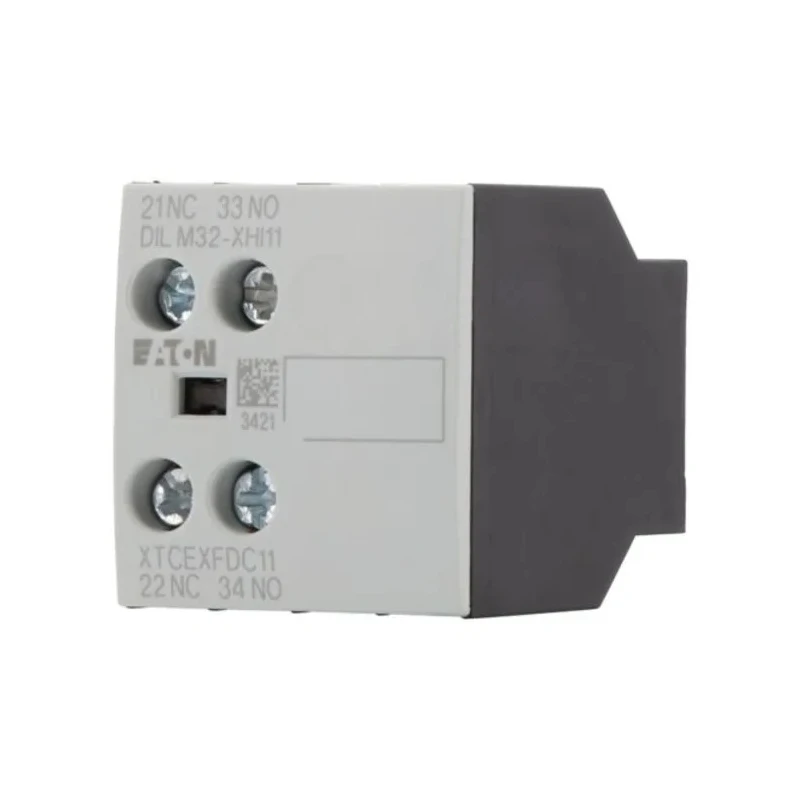

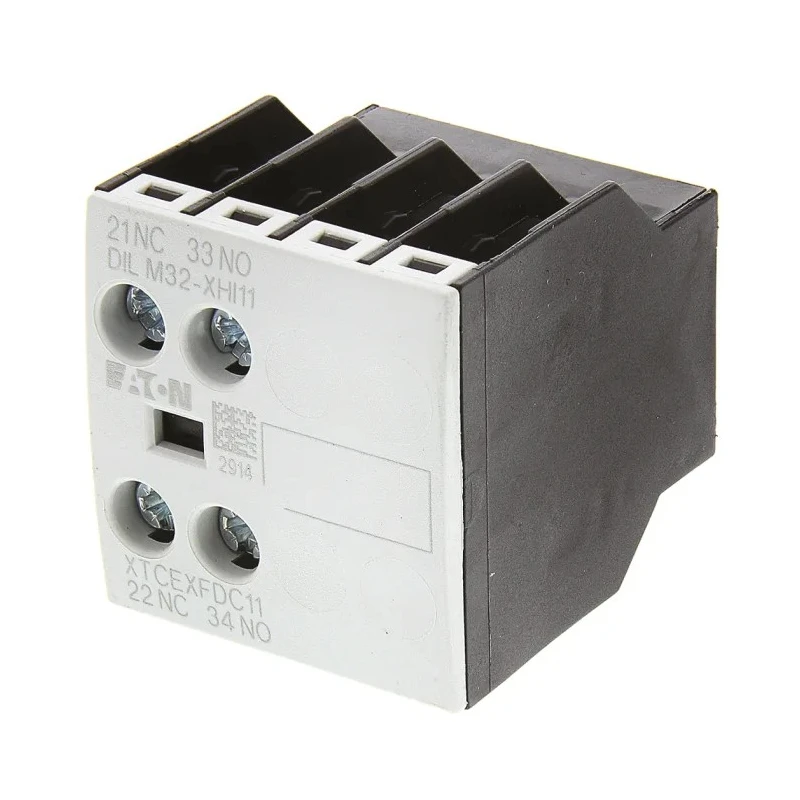

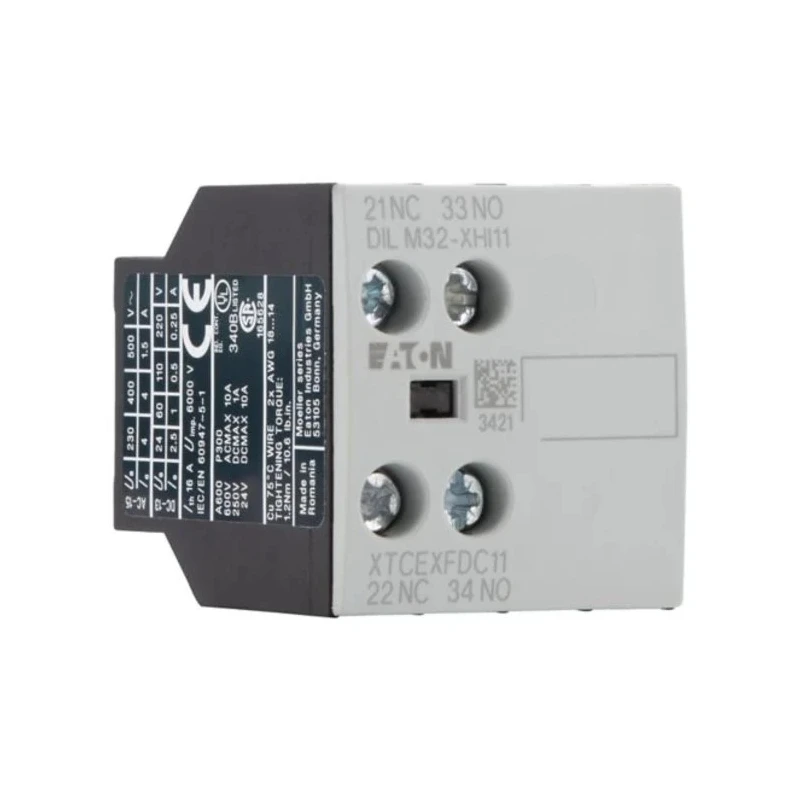

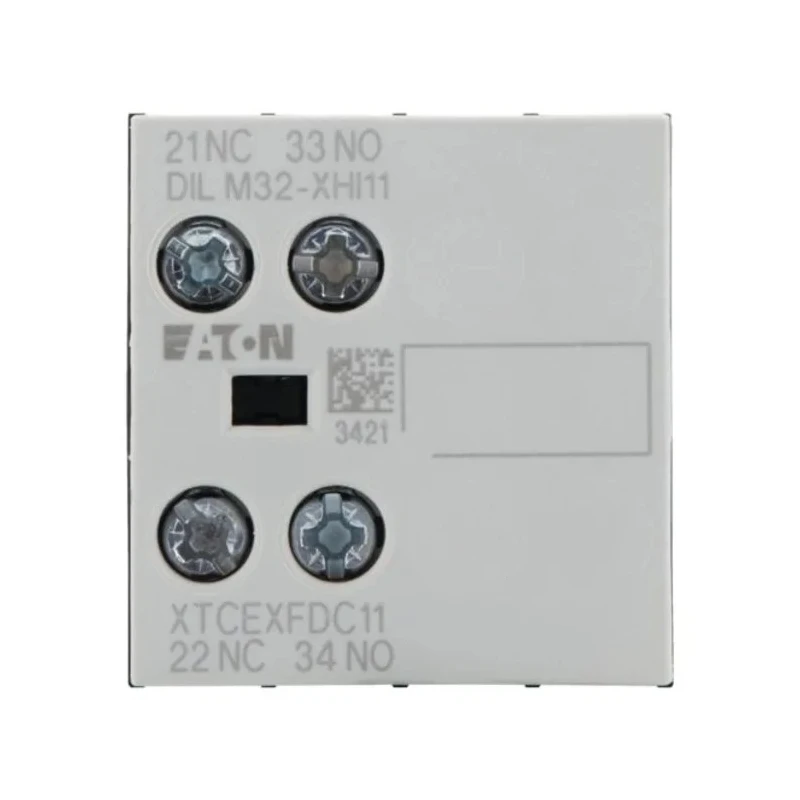

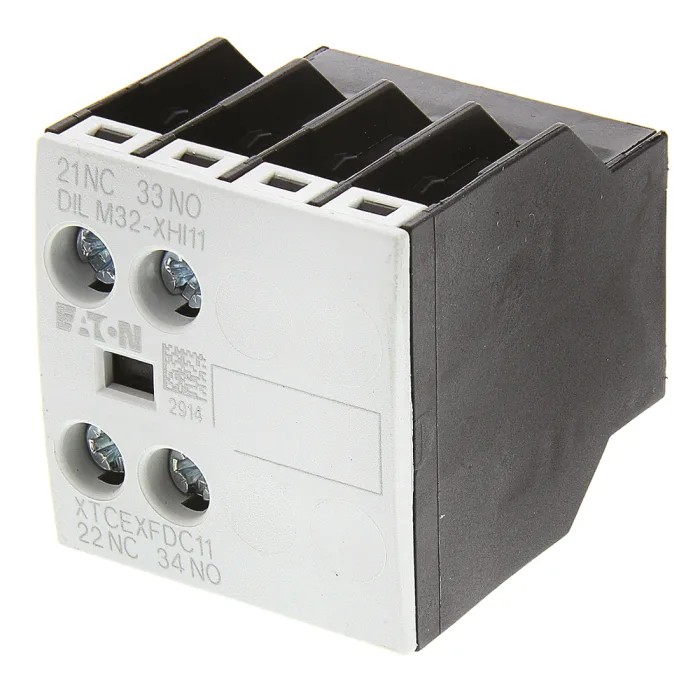

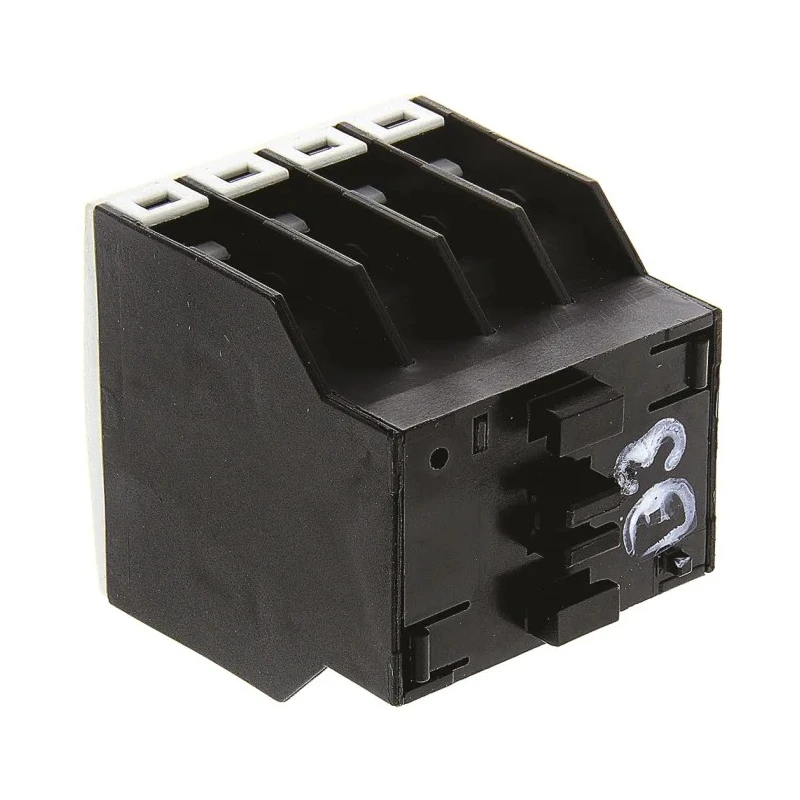

Eaton Auxiliary Contact, 2 Contacts, 1 NO/1 NC, Front Mount, 16 A, 220 V DC, 500 V AC, 277376 DILM32-XHI11
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Model | 277376 DILM32-XHI11 |
| Mount Type | Front |
| Series | DILM7 - DILM38 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Contacts | 2 |
| Contact Voltage | 220, 500V dc |
| Normal State Configuration | 1 NO/1 NC |
| Contact Current | 16A |
| Operational Current Ie | 4A |
| Pole and Throw Configuration | 2P |
| Mechanical Durability | 1300000Operations |
| Rated Insulation Voltage Ui | 690V |
| Eaton Bussmann Series 100A Centred Tag FuseBrand | Cooper Bussmann |
Key Features
- Designed for front mounting on DILM7 to DILM38 series contactors.
- Rated for 16 A contact current and 690 V insulation voltage.
- Equipped with screw terminals for secure wiring connection.
- Operates reliably within -25°C to 60°C temperature range.
- Mechanical durability of 1.3 million operations ensures long service life.
- Interlocked opposing contacts prevent simultaneous activation, enhancing safety.
- Compact dimensions of 38 x 36 x 45 mm save panel space.
- Complies with UL, IEC/EN, CSA, CE, and VDE standards for industrial use.
Product Description
Eaton 277376 DILM32-XHI11 Auxiliary Contact is a robust accessory designed for the DILM7 to DILM38 contactor series, providing reliable two-contact switching in industrial and automation applications. Rated for 16 A and operating at 220 V DC and 500 V AC voltages, this component supports low-voltage signaling, system monitoring, and motor control tasks with enhanced safety due to its interlocked opposing contacts.
The auxiliary contact mounts on the front of compatible contactors and features screw terminals capable of accepting both solid and flexible conductors from 0.75 to 2.5 mm², ensuring strong and vibration-resistant connections. Its compact size of 38 mm length, 36 mm width, and 45 mm depth facilitates space-saving integration into control panels.
Engineered to withstand harsh environments, it functions reliably across a temperature range of -25°C to 60°C and offers mechanical durability rated at 1.3 million operations. This ensures extended service life in demanding switching applications involving induction motors, pumps, and fans.
The design includes interlocked opposing contacts (1 Normally Open, 1 Normally Closed) that cannot be simultaneously activated, boosting operational safety by preventing contact overlap. Additionally, the product adheres to multiple international standards including UL, IEC/EN 60947-4-1, CSA, CE, and VDE 0660, confirming its suitability for global industrial use.
Manufactured in Romania, the Eaton auxiliary contact is ideal for upgrading contactors to handle additional switching tasks without replacing the entire device. It is widely used in electrical automation, control gear, industrial machinery, water treatment systems, and HVAC installations.
Reliable two-contact auxiliary contact for DILM series contactors. Front mounting with compact dimensions saves panel space. Screw terminals accept 0.75 - 2.5 mm² conductors for secure wiring. Operational temperature from -25°C to 60°C supports harsh environments.
Mechanical durability of 1.3 million cycles ensures long service life. Interlocked opposing contacts enhance safety and reliability. Complies with UL, IEC, CSA, CE, and VDE standards for industrial use. Suitable for motor control, automation, and low-voltage switching.
Manufactured in Romania with Eaton quality assurance. Explore more products in the Auxiliary Contact category for a wide range of industrial automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The auxiliary contact is rated for a contact current of 16 A.
It operates at 220 V DC and 500 V AC.
This model has compact dimensions of 38 mm in length, 36 mm in width, and 45 mm in depth.
It is equipped with screw terminals that can accept solid and flexible conductors from 0.75 to 2.5 mm².
The mechanical durability is rated at 1.3 million operations, ensuring a long service life.
It operates reliably within a temperature range of -25°C to 60°C.
This model features 2 contacts, configured as 1 Normally Open (NO) and 1 Normally Closed (NC).
It is designed for front mounting on DILM7 to DILM38 series contactors.
This auxiliary contact complies with UL, IEC/EN, CSA, CE, and VDE standards for industrial use.
It includes interlocked opposing contacts that prevent simultaneous activation, enhancing operational safety.
The rated insulation voltage is 690 V.
It is manufactured in Romania.
