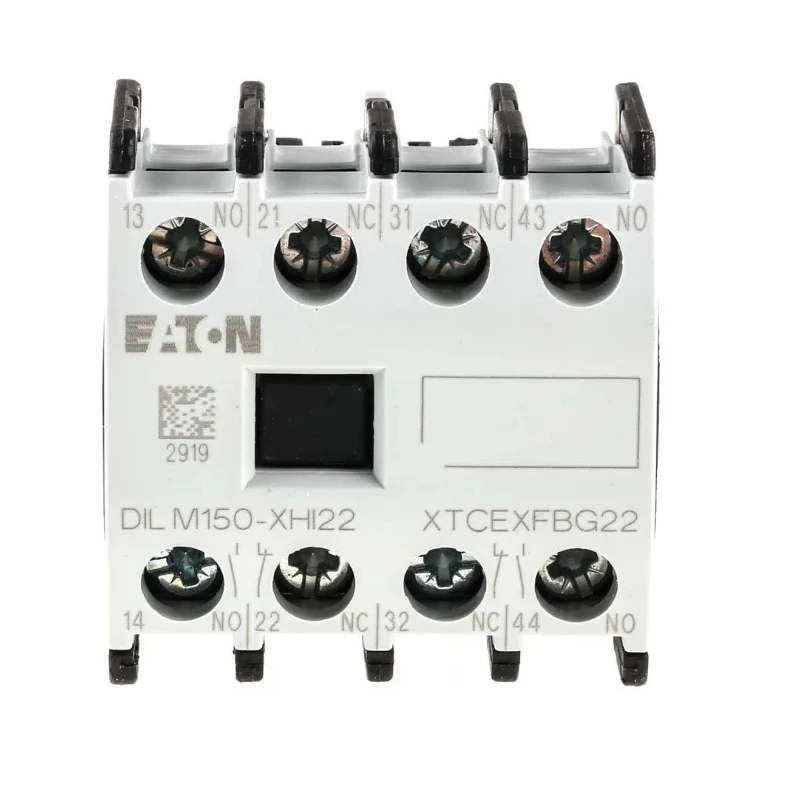

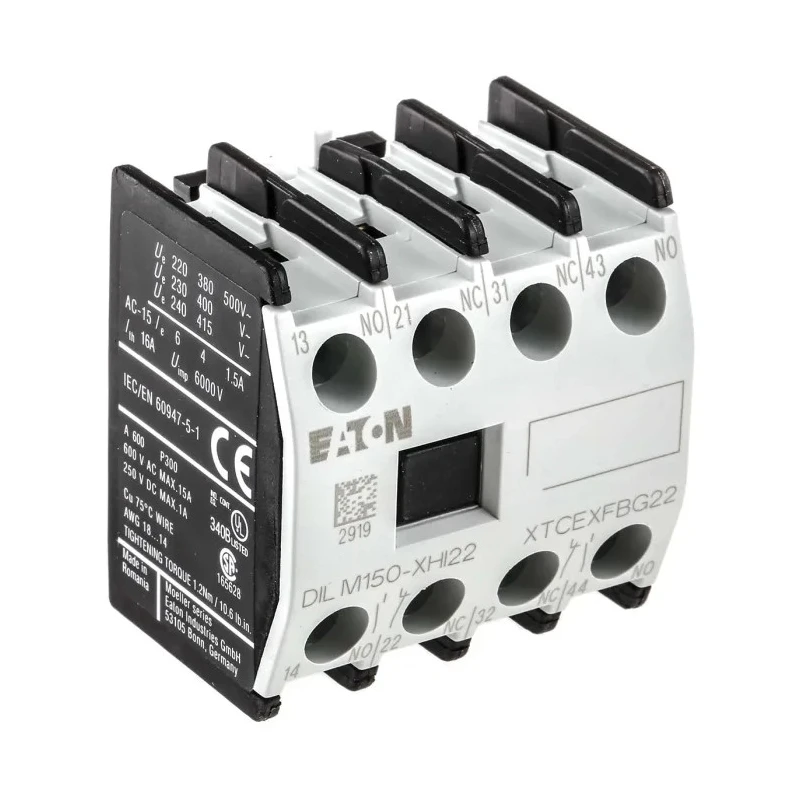

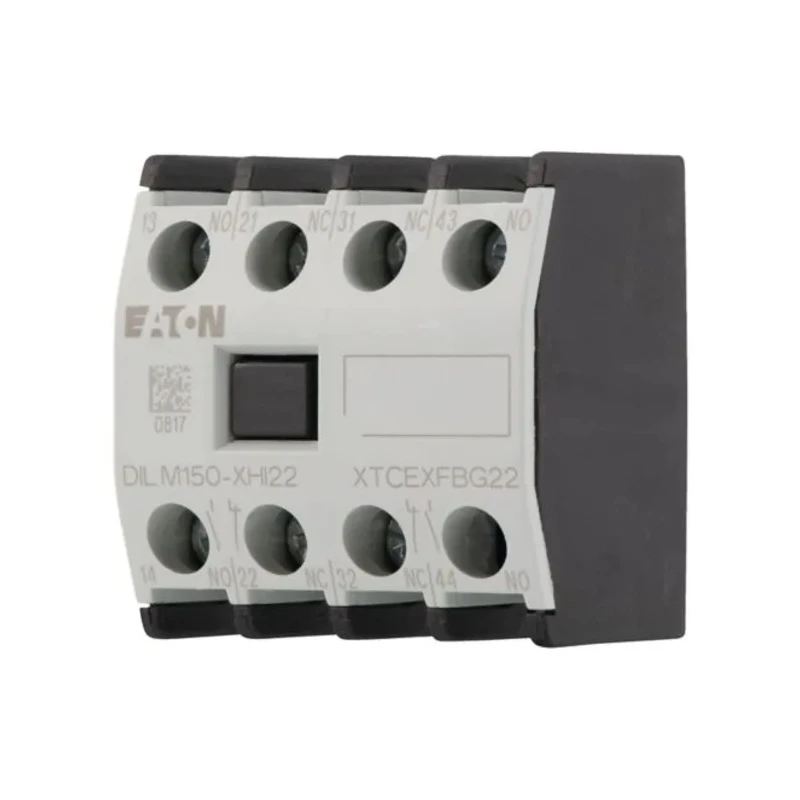

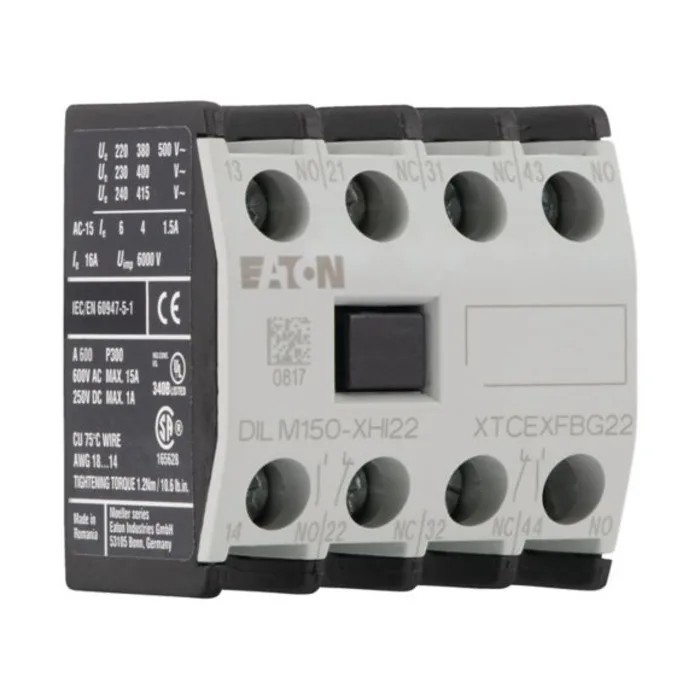

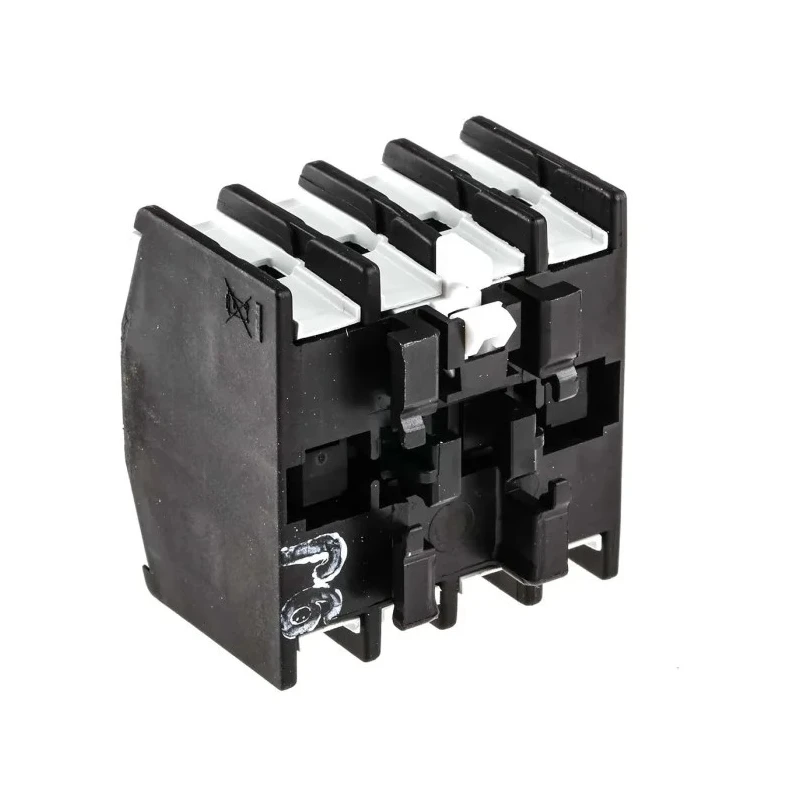

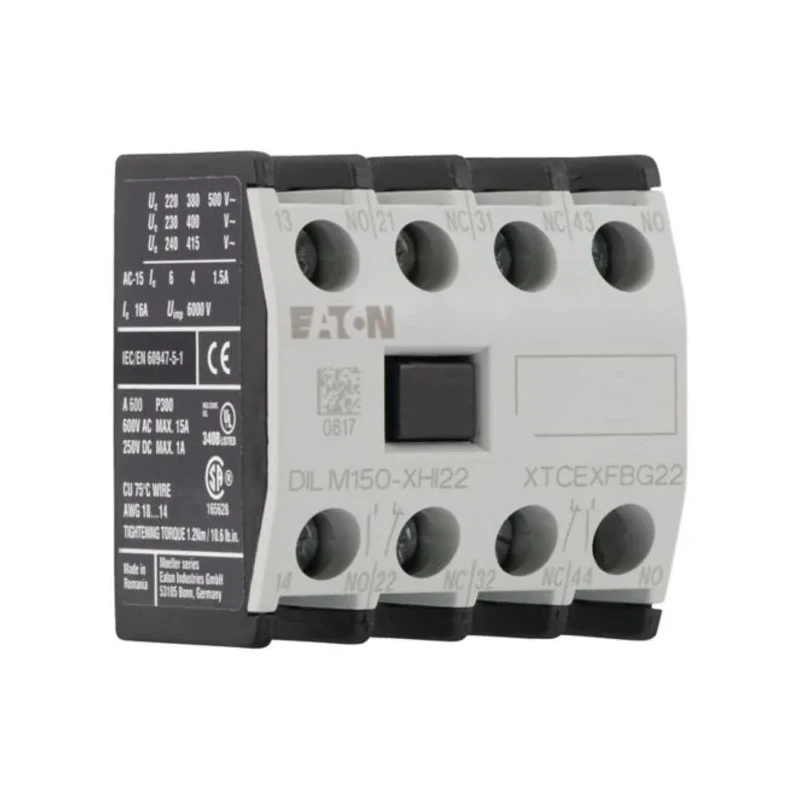

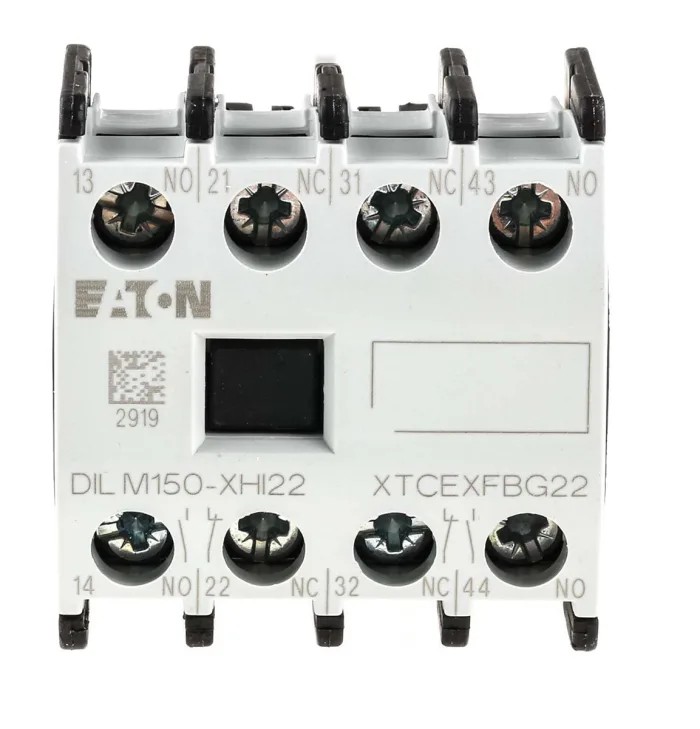

Eaton Auxiliary Contact 4 Contact 2 NC/2 NO Front Fixing 16 A 220 V DC 500 V AC 277950 DILM150-XHI22

Eaton 277950 DILM150-XHI22 Auxiliary Contact is a versatile electrical component designed for industrial automation and control systems. Featuring 4 contacts arranged as 2 Normally Closed and 2 Normally Open, it supports a contact current of 16 A, suitable for motor starting, signalling, and industrial control applications. It operates with 220 V DC and 500 V AC contact voltages and is rated for insulation voltage of 690 V, ensuring reliable performance under heavy electrical loads.

Its front fixing mount type and screw terminal connections enable quick and secure installation, ideal for demanding electrical environments. The auxiliary contact is engineered for durability with a mechanical lifespan rated at 1.3 million operations, ensuring longevity and consistent performance over time. It is climate-proofed to withstand warm and humid conditions, operating safely within a temperature range from -25°C to +60°C, making it suitable for harsh industrial settings.

The interlocking opposing contact design maintains an organized layout that prevents wire crossover during operation. Lightweight at just 55 grams, it minimizes system load without compromising functionality. This product complies with internationally recognized standards such as VDE 0660, UL, IEC/EN 60947, CE marking, and CSA, reflecting its high quality and safety assurance.

With an IP20 rating, the auxiliary contact offers protection against dust ingress and accidental contact with fingers, contributing to safer operation in industrial installations. This Eaton auxiliary contact expands the capabilities of electrical control panels and contactor assemblies, enhancing reliability and efficiency in automation systems.

This auxiliary contact has a total of 4 contacts configured as 2 Normally Closed and 2 Normally Open. The front fixing mount type facilitates convenient installation with screw terminals. It supports a contact current of 16 A and operational current of 6 A for various control applications.

Designed for industrial use with rated insulation voltage of 690 V and tested mechanical durability up to 1.3 million operations. Operates reliably within a temperature range of -25°C to 60°C suitable for harsh environments.

Complies with safety standards including VDE 0660, UL, IEC/EN 60947, CE marking, and CSA for assured quality. Lightweight design at 55 g reduces load on systems while maintaining robust electrical signalling performance.

Its interlocking opposing contact design helps prevent crossed wires for organized layouts. IP20 protection rating ensures resistance to dust and prevents accidental finger contact.

This auxiliary contact is ideal for industrial, automation, electrical control gear, motor starting, and machinery applications where reliable switching and signalling components are required. Eaton brand products are known for quality and technological innovation, serving demanding industrial environments.
