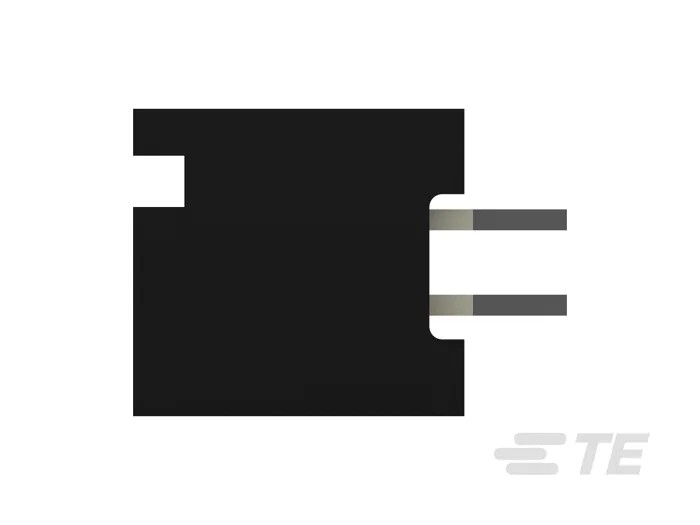

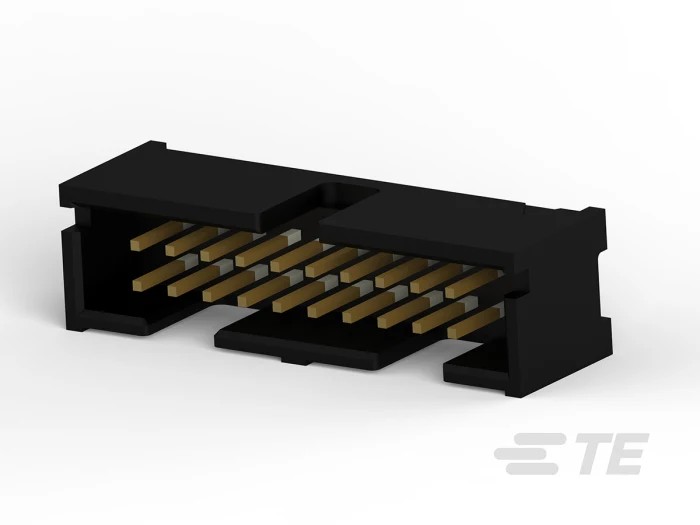

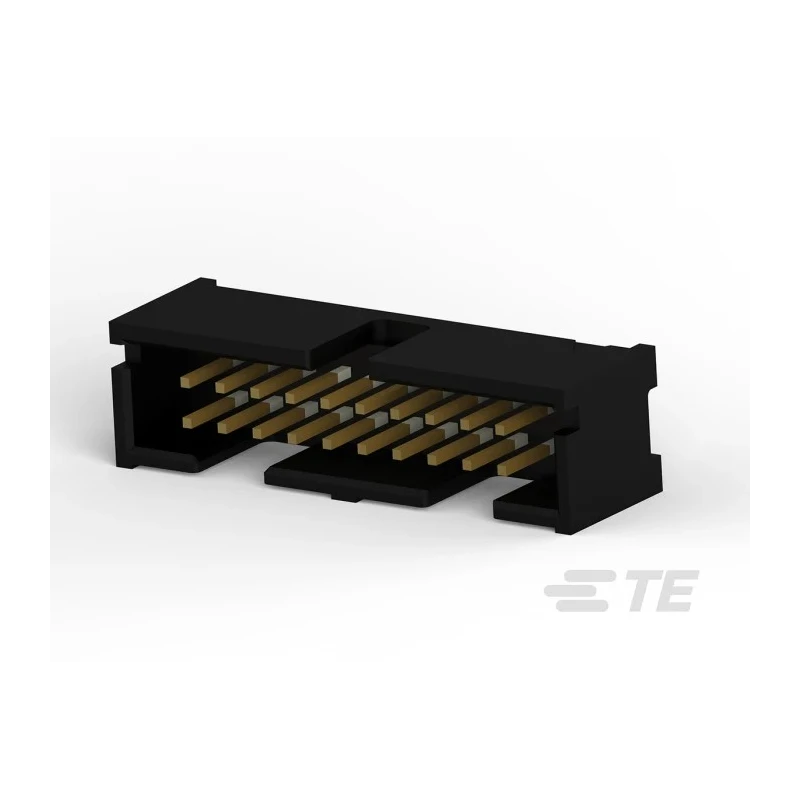

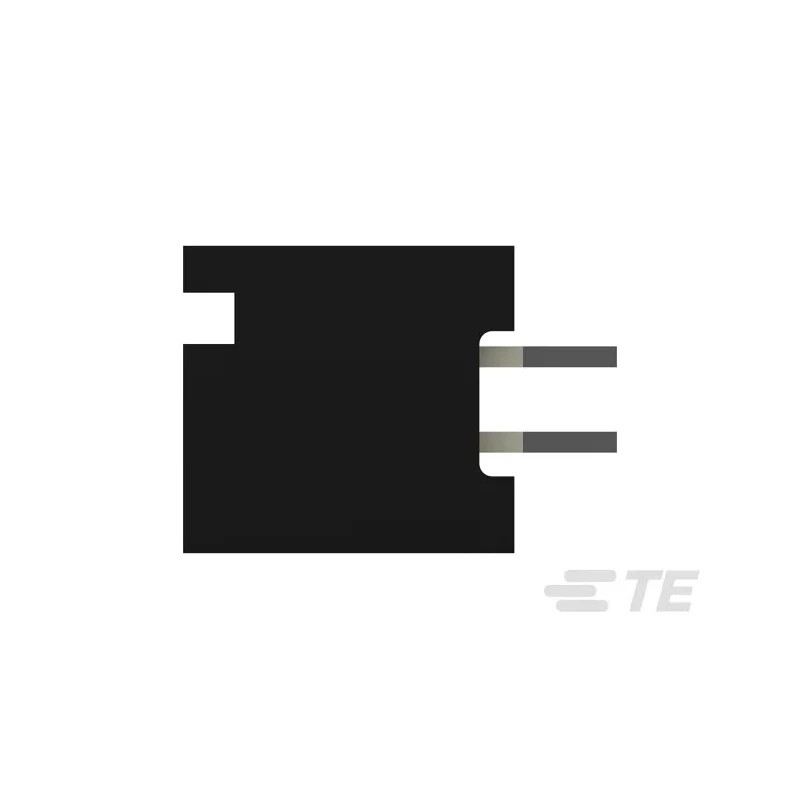

TE Connectivity AMP-LATCH Series PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Straight, Shrouded 103308-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Model | 103308-5 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 5000 MΩ |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Packaging Method | Tube |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.05mm |
| Connector Height | 9.77 mm |
| Housing Color | Black |
| Row-to-Row Spacing | 2.54 mm |
| UL Flammability Rating | UL 94V-0 |
| Circuit Application | Signal |
| Panel Mount Feature | Without |
| PCB Mount Retention | Without |
| Mating Retention | Without |
| Connector Mounting Type | Board Mount |
| Housing Temperature Rating | Standard |
Key Features
- Provides secure shrouded housing for improved alignment and mating reliability.
- Designed with straight orientation for standard PCB through-hole mounting.
- Features 20 copper alloy contacts with gold and nickel plating for signal integrity.
- Supports a 1A maximum current rating suitable for signal circuit applications.
- Housing is constructed from thermoplastic for durability and temperature resistance.
- Insulation resistance up to 5000 MΩ and UL 94V-0 flammability rating ensure safety.
- Operates reliably over a wide temperature range of -65°C to 105°C.
- Dual polarizing bar design for center mating alignment and daisy chain capability.
Product Description
The TE Connectivity 103308-5 AMP-LATCH Series PCB Header is a highly reliable connector designed for board-to-board applications, featuring a straight-through hole configuration and shrouded housing. With a standard 2.54 mm pitch and dual-row layout, the connector provides 20 female copper alloy contacts that are gold and nickel plated to ensure robust signal transmission and corrosion resistance.
Its thermoplastic housing offers excellent mechanical strength and resistance to environmental stresses, making it suitable for electronics requiring consistent performance across a wide temperature range of -65°C to 105°C. The connector's shrouded profile improves mating precision and protects contacts during installation and operation, while the dual polarizing bars facilitate center alignment and support easy daisy chain configurations where required.
Each contact is rated for up to 1 ampere, supporting signal applications in PCBs for industrial, instrumentation, and commercial electronic devices. The tail pin length of 3.05 mm ensures a secure solder termination to the printed circuit board, and its through-hole mounting is compatible with standard PCB processes.
The 103308-5 AMP-LATCH PCB Header meets UL 94V-0 flammability standards and features a high insulation resistance of 5000 megaohms, demonstrating its suitability for demanding environments. The housing color is black, and its dimensions include a connector height of 9.77 mm and row-to-row spacing of 2.54 mm, offering straightforward integration into design layouts.
This product is best utilized in board-to-board connections within industrial controllers, measurement systems, signal circuit assemblies, and professional electronic equipment. Its robust construction and precise engineering guarantee operational reliability in both commercial and industrial use cases.
Browse more PCB Headers and connectivity solutions from TE Connectivity in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 1 ampere, suitable for signal circuit applications.
The pitch size of the connector is 2.54 mm, which is standard for many PCB applications.
The housing is made from thermoplastic, while the contacts are composed of copper with gold and nickel plating for enhanced signal integrity.
It operates reliably over a wide temperature range of -65°C to 105°C.
This model features 20 female contacts.
The connector height is 9.77 mm, which is important for ensuring compatibility with PCB layouts.
It uses a through-hole mounting type, which is standard for many PCB applications.
Yes, this PCB header has a shrouded design that improves mating precision and protects contacts during installation.
The insulation resistance is up to 5000 megaohms, ensuring effective electrical isolation.
The housing meets the UL 94V-0 flammability rating, indicating its safety in various applications.
The tail pin length is 3.05 mm, which is designed for secure solder termination to the printed circuit board.
It is suitable for board-to-board connections in industrial controllers, measurement systems, and signal circuit assemblies.
