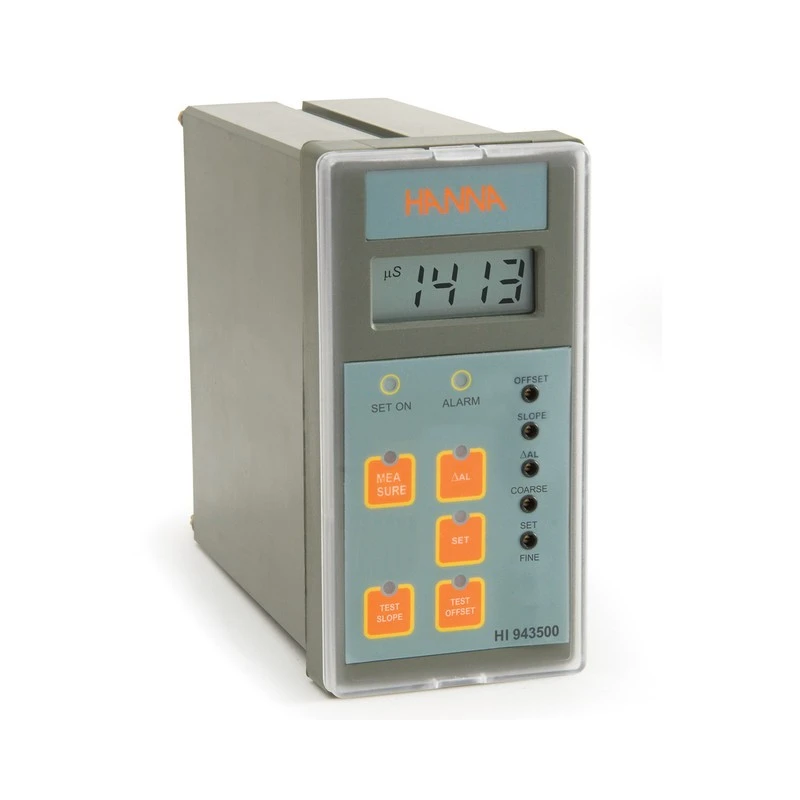

Hanna Conductivity Analog Controller with Direct Input from Potentiometric Probe, 0.00 to 19.99 mS/cm - HI943500

Name: Hanna Conductivity Analog Controller with Direct Input from Potentiometric Probe, 0.00 to 19.99 mS/cm - HI943500
Brand: Hanna
SKU: 72094
Price: 831.59 USD
Availability: InStock



Category Conductivity Controller Brand Hanna

Specifications

Country of Origin	India
Package Contents	1 Pc HI943500 Conductivity Analog Controller
Measurement Range	0.00 to 19.99 mS/cm
Display	backlit LCD
Brand	Hanna
Power Supply	115 or 230 Vac ±10% (user selectable), 50/60 Hz
Mounting	Panel mounted, standard DIN
EC Resolution	0.01 mS/cm
EC Accuracy	±2% F.S.
Temperature Compensation	Automatic, 0 to 60°C (32 to 140°F)
Model	HI943500
Enclosure	Flame retardant ABS and splash-proof transparent cover
Weight	1 kg
Panel Cutout	141 x 69 mm (5.6 x 2.7 in)
Operating environment	-10 to 50°C, RH max 95%
Product Condition	New
MPN	HI943500
Approximate Dimensions	Enclosure 141 x 69 mm panel cutout
Auto-diagnostic Functions	Yes
Recorder Output Signal	4-20 mA (isolated)
Input Probe Type	Potentiometric (HI7638), direct input, up to 20 m cable

Key Features

Hanna HI943500 Conductivity Analog Controller for direct potentiometric probe input provides advanced monitoring and control of electrolytic conductivity in a range of 0.00 to 19.99 mS/cm.

Suitable for panel mounting with standard DIN cutout for industrial and laboratory applications.
Enables direct connection of potentiometric conductivity probes with up to 20 m cable, eliminating transmitter needs.
Supports isolated 4-20 mA analog output for seamless integration with recorders or data loggers.
Manual two-point calibration through offset and slope trimmers ensures measurement accuracy.
Features large backlit LCD and flame retardant ABS enclosure for reliable operation in harsh environments.
Automatic temperature compensation (0 to 60°C) delivers stable readings across varied process conditions.
Built-in auto-diagnostics and splash-proof front panel for enhanced safety and maintenance.
Operates in environments from -10 to 50°C and offers robust resistance to humidity (up to 95% RH).
User-selectable power supply (115/230 VAC ±10%, 50/60 Hz).
Weighs approximately 1 kg, suitable for both laboratory and industrial process settings.

Product Description

Hanna HI943500 Conductivity Analog Controller offers direct input from potentiometric probes for accurate and continuous monitoring of electrolytic conductivity in liquid processes. This industrial-grade controller measures within a broad 0.00 to 19.99 mS/cm range and is well-suited for water treatment, manufacturing, laboratory, and process control environments.

The HI943500 supports direct connection to potentiometric conductivity probes (such as HI7638) on cable runs up to 20 meters, eliminating the requirement for transmission amplifiers. Featuring a large backlit LCD, membrane keypad, splash-proof transparent front panel, and flame-retardant ABS enclosure, it combines operator safety with a friendly interface.

Analog isolated 4-20 mA output enables integration with digital recorders and remote process controllers.
Manual two-point calibration (offset and slope) through trimmers allows fine-tuning for highly accurate measurements.
Automatic temperature compensation from 0 to 60°C (32–140°F) ensures stable conductivity readings in dynamic industrial conditions.
Four selectable models address a wide range of measurement scales, of which HI943500B suits applications requiring precision from 0.00 to 19.99 mS/cm.
Easy panel mounting via 141 x 69 mm cutout and compact construction support installation in control panels in factories, laboratories, and treatment plants.
Auto-diagnostic capabilities, membrane keypads, and rugged design reduce error risk and maintenance needs.
Comes with user-selectable 115 or 230 VAC ±10% power supply compatibility (50/60 Hz).

Typical industrial and water treatment use cases include continuous monitoring in chemical dosing, boiler water control, process lines, effluent regulation, and laboratory sample streams.

Approximate product weight: 1 kg.
Panel cutout: 141 x 69 mm.
Enclosure: Flame retardant ABS, splash-proof transparent front cover.

Package Contents: 1 Pc HI943500 Conductivity Analog Controller (probe and accessories supplied separately).

Explore more Hanna process control and laboratory instruments in EnvMart’s Measuring & Testing Instruments category, or search by application to find the right controller for your process.

Hanna Conductivity Analog Controller with Direct Input from Potentiometric Probe, 0.00 to 19.99 mS/cm - HI943500

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The Hanna HI943500 measures electrolytic conductivity in a range of 0.00 to 19.99 mS/cm.

Yes, the HI943500 allows direct connection to potentiometric conductivity probes with cable lengths up to 20 meters, eliminating the need for transmission amplifiers.

The controller features automatic temperature compensation that operates from 0 to 60°C, ensuring stable conductivity readings across varying process conditions.

It supports an isolated 4-20 mA analog output, allowing for seamless integration with digital recorders or remote process controllers.

Yes, it features a flame-retardant ABS enclosure and a splash-proof front panel, making it reliable for use in harsh industrial settings.

The HI943500 allows for manual two-point calibration through offset and slope trimmers, ensuring measurement accuracy.

The controller has a user-selectable power supply of 115/230 VAC ±10% at 50/60 Hz, accommodating different electrical setups.

The HI943500 weighs approximately 1 kg and has a panel cutout size of 141 x 69 mm, suitable for standard installations.
