BL983322-0 Conductivity Controller Panel Mount 0.00–19.99 µS/cm 12 VDC | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna Conductivity Controller (0.00 to 19.99 µS/cm) - BL983322-0 | 12VDC

Name: Hanna Conductivity Controller (0.00 to 19.99 µS/cm) - BL983322-0 | 12VDC
Brand: Hanna
SKU: 72096
Price: 257.74 USD
Availability: InStock



Category Conductivity Controller Brand Hanna

Specifications

Resolution	0.01 µS/cm
Accuracy	±2% F.S.
Measurement Range	0.00 to 19.99 µS/cm
Calibration	Manual, with CAL trimmer
Model	BL983322-0
Dosing Relay Output	Max 2A (fuse protected), 250 Vac, 30 VDC
Dosing Set Point	Adjustable 0.00 to 19.99 µS/cm
Over Dosing Control	Adjustable, 5 to ~30 minutes

Key Features

BL983322-0 Conductivity Controller for precise process EC measurements, panel mounted and supporting both automatic and manual dosing modes.

Measures conductivity in the range of 0.00 to 19.99 µS/cm for advanced process control.
Supports both automatic and manual dosing with user-adjustable set point and over-dosing timer.

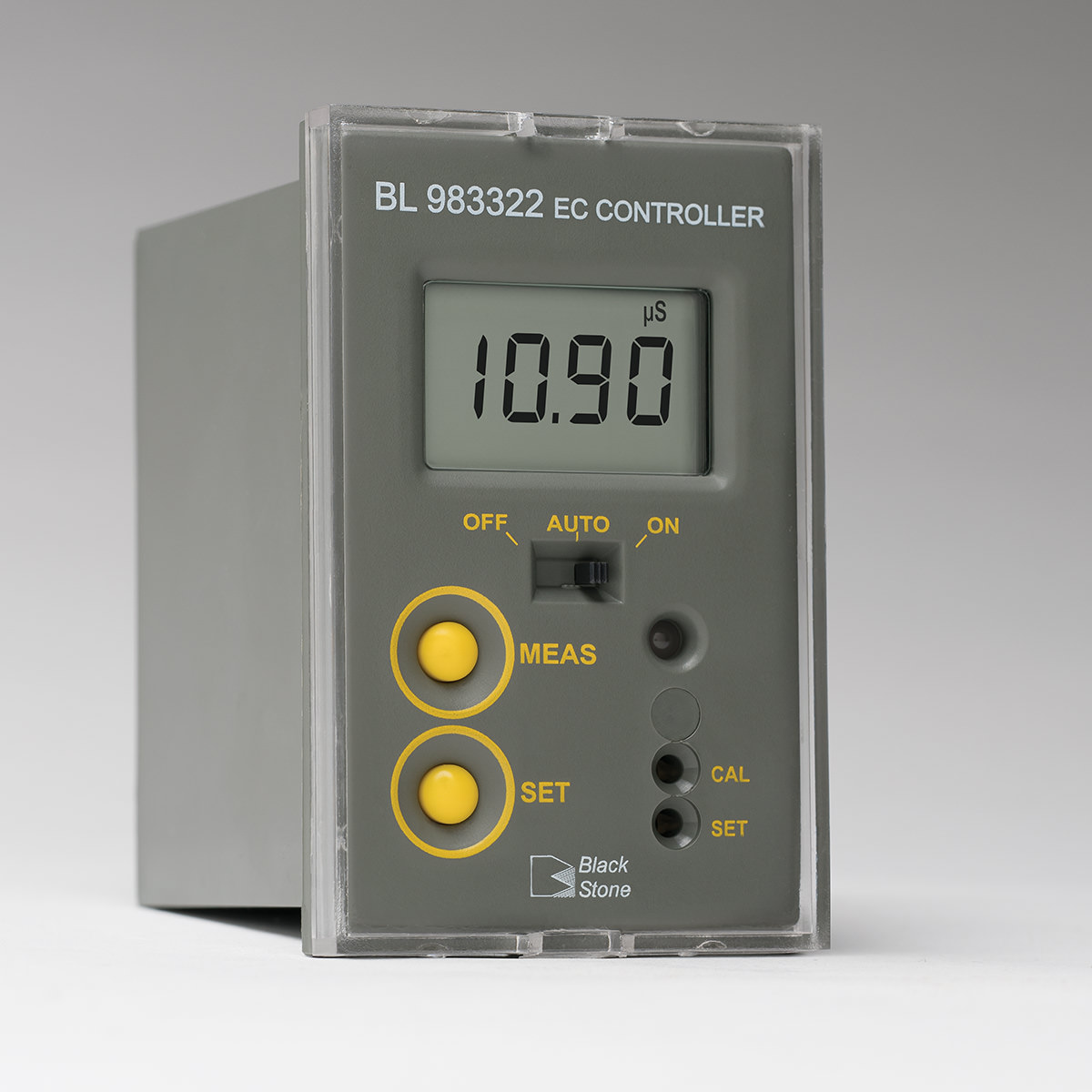

Features a large LCD display with protective cover and multicolor status LED indicator.
Automatic temperature compensation ensures accurate EC readings from 5 to 50°C.
Compact fire-retardant casing ideal for laboratory, industrial, and DI water system monitoring.
Panel mount design suitable for integration into process control cabinets and installations.
Manual calibration via CAL trimmer.

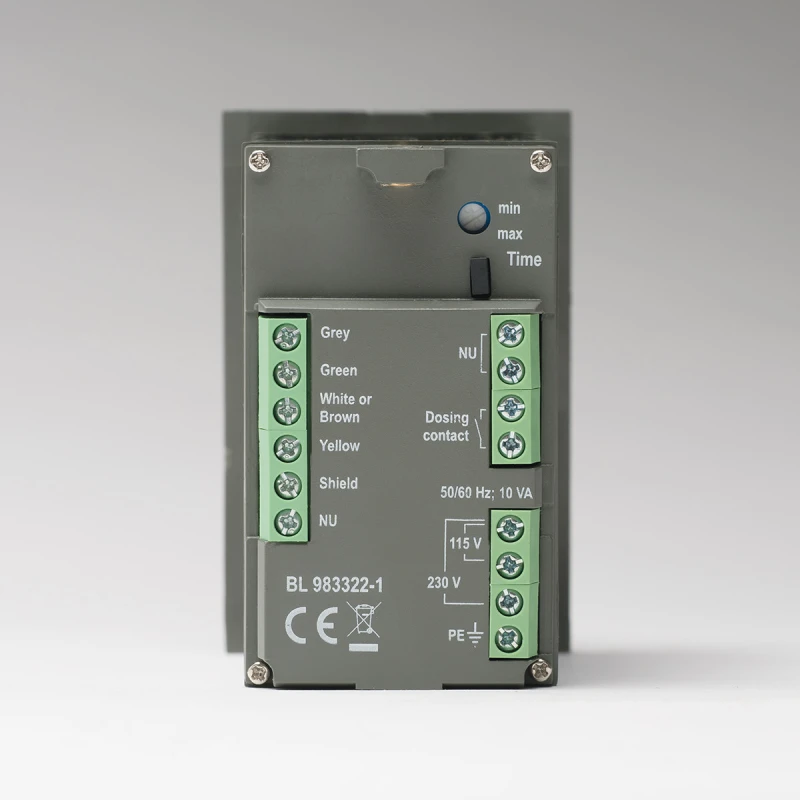

Relay output (max 2A, 250 Vac or 30 VDC, fuse protected) can switch between sources or activate valves/solenoids.

Product Description

BL983322-0 Conductivity Controller provides accurate and reliable electrolytic conductivity (EC) measurement for process streams in laboratory and industrial environments. Designed for panel mounting, this controller measures EC in the 0.00 to 19.99 µS/cm range and is suitable for monitoring DI water quality, laboratory distillation, or automated chemical dosing operations.

The controller features a large LCD display with protective cover for convenient parameter reading and system diagnostics. The multicolor LED indicator signifies operational status at a glance. Automatic or manual dosing is supported—automatic mode engages a relay output when conductivity exceeds the programmable set point, enabling valve or solenoid activation to maintain desired EC levels. An adjustable over-dosing timer adds extra operational safety.

Conductivity measurement range: 0.00 to 19.99 µS/cm.
High-accuracy readings (±2% f.s.), with 0.01 µS/cm resolution.
Manual calibration using front-mounted CAL trimmer for optimal system accuracy.
Relay dosing output (max 2A, 250 Vac/30 VDC, fuse protected) to automate process operation.
Automatic temperature compensation (ATC) from 5 °C to 50 °C with β = 2%/°C.
Over-dosing control timer adjustable for 5–30 minutes.
Fire retardant, compact casing for enhanced operational safety.
Power supply: 12 VDC (adapter included).

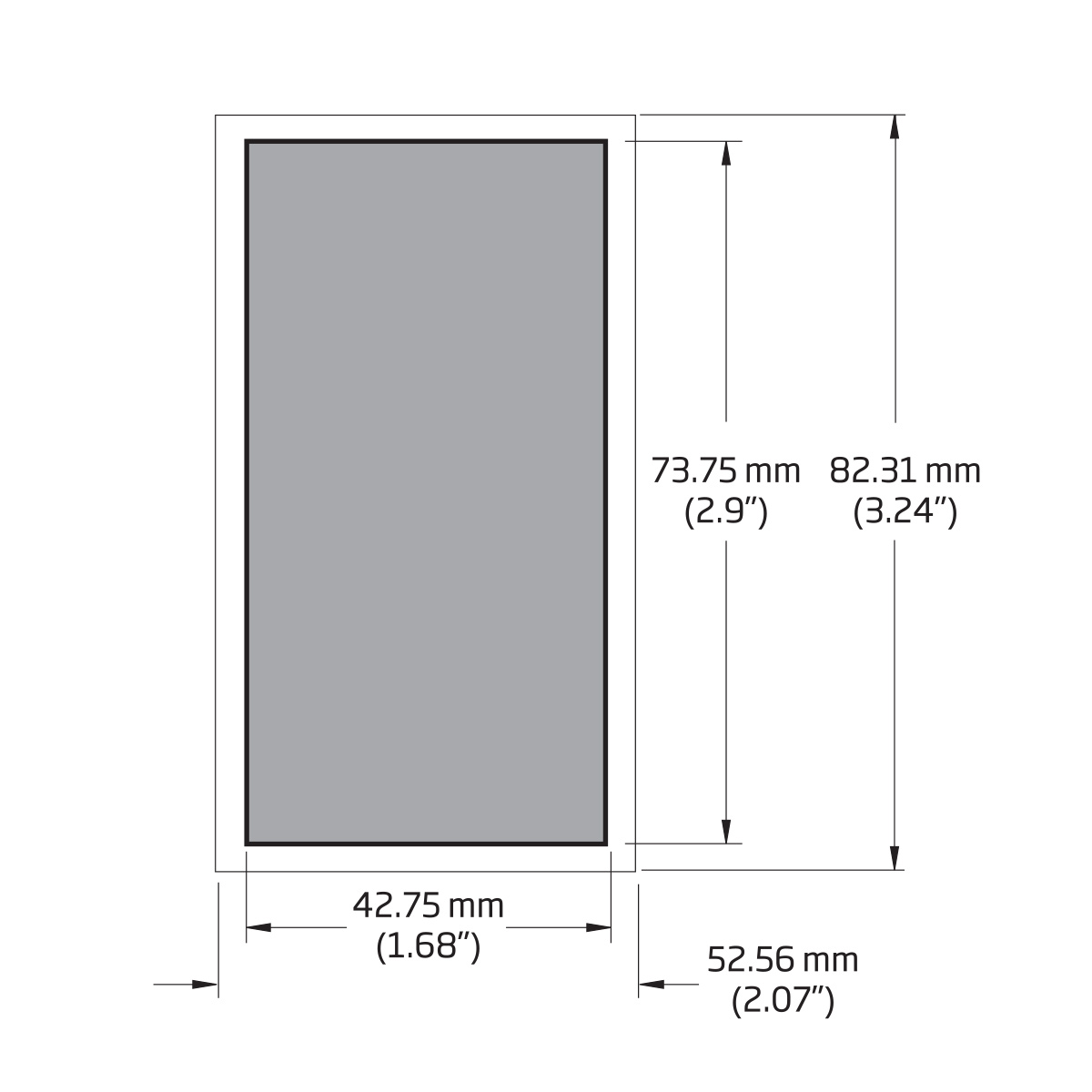

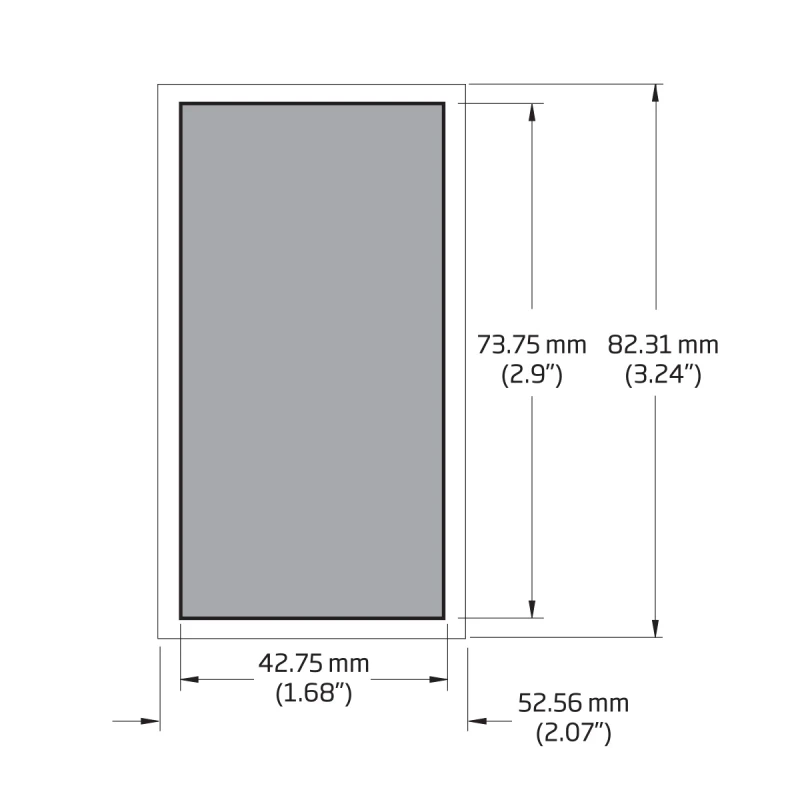

Weight: 200 g. Dimensions: 83 × 53 × 99 mm.

This controller is ideal for industrial, laboratory, water treatment, and DI system quality monitoring requirements. Typical applications include controlling water quality in distillation apparatuses, process lines, and switching between DI water tanks for optimal EC levels.
