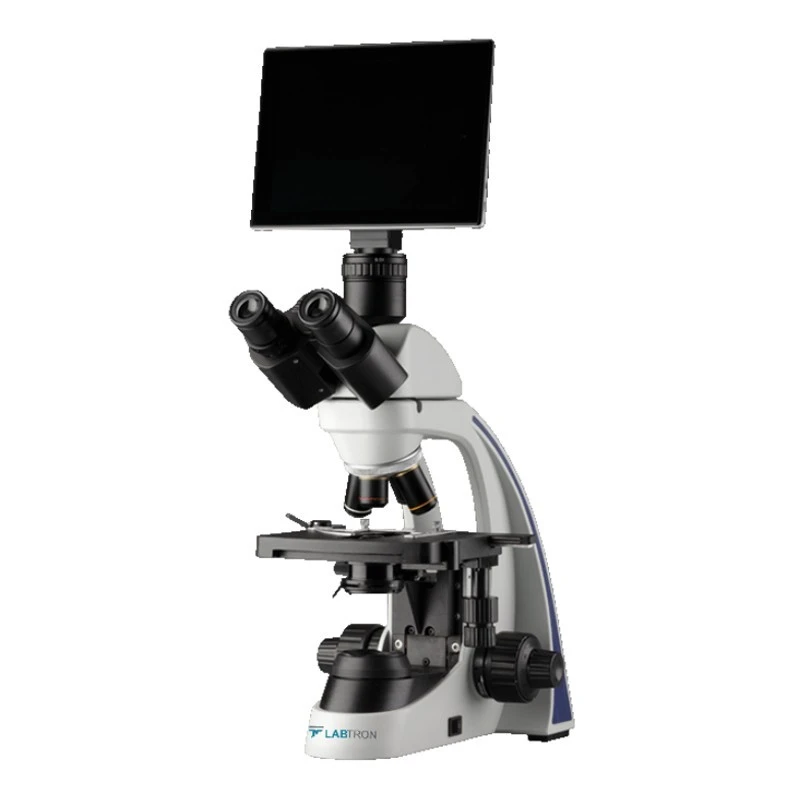

Digital Microscope EDM-E10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Model | LDM-E10 |
| Optical System | Plan achromatic / optical system |
| Operating System | Win 10 system |
| Type of Product | Microscope |
| Condenser | Removable Abbe condenser / NA 1.25 with aperture iris diaphragm |
| Screen | 13-inch LCD screen with 5 MP built-in camera |
| Illumination | Illuminator — White LED lamp / LED Power — 3 W / Colour Temperature — 6300 K / Average Life of LED — 20000 hours / Power Supply — External AC 100 to 240 V / 50/60 Hz |
| Objectives | Plan achromatic objective — 4X/0.10 / 10X/0.25 / 40X/0.65 (Spring loaded) / 100X/1.25 (Spring loaded and oil immersion) |
| Focusing | Coaxial positioning system / Fine Adjustment accuracy — 0.002 mm |
| Eyepiece | WF 10X/18 |
| Viewing Head | Binocular/trinocular head / inclined at 30° / rotating at 360° / Adjustable interpupillary distance 50 to 75 mm / Diopter adjustment on left eyepiece |
| Nose piece | Quadruple reversed angle nosepiece |
| Observation | Brightfield |
| Stage | Mechanical double layer stage / Moving range — 76 mm × 52 mm / Dimensions — 155 × 145 mm |
Key Features
- Dioptre adjustment allows users to customize the focus of the eyepieces
- Brightness controller adjusts the intensity of the LED illumination
- Upper limit stopper to protect the lens and sample
- Focusing movement by roller guider
- Rubber grip around fine and coarse adjusting knob
- Tension adjustment of coarse adjustment knob allows users to regulate the resistance
- Platinum overhang on the stage provides enhanced stability and conductivity
- Vernier scale on both axes with an accuracy of 0.1 mm
Product Description
Digital Microscope LDM-E10 provides the details of the object on the large LCD screen with ease. The revolver, designed with rotation on ball bearings, facilitates easy and precise switching between multiple objective lenses. It features an ergonomic design with a rigid frame, ensuring comfortable and stable operation. Made from anti-fungal, anti-bacterial metal material, the microscope is built for enhanced efficiency and durability.
Applications:
Digital microscope is widely used in research labs, hospitals, and industries to view and study opaque, translucent, and temperature-sensitive objects on the LCD screen.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a plan achromatic optical system, which enhances image clarity and detail.
It is equipped with a 13-inch LCD screen that includes a 5 MP built-in camera for digital viewing.
The mechanical double layer stage has a moving range of 76 mm × 52 mm and dimensions of 155 mm × 145 mm.
It has a fine adjustment accuracy of 0.002 mm, allowing for precise focusing.
This microscope supports brightfield observation, which is suitable for viewing various specimens.
The country of origin is the UK.
It comes with a WF 10X/18 eyepiece, which is designed for comfortable viewing.
It includes a removable Abbe condenser with a numerical aperture of 1.25 and an aperture iris diaphragm for enhanced control.
The viewing head is binocular/trinocular, inclined at 30°, and can rotate 360° with an adjustable interpupillary distance of 50 to 75 mm.
It is widely used in research labs, hospitals, and industries for viewing and studying opaque, translucent, and temperature-sensitive objects.
