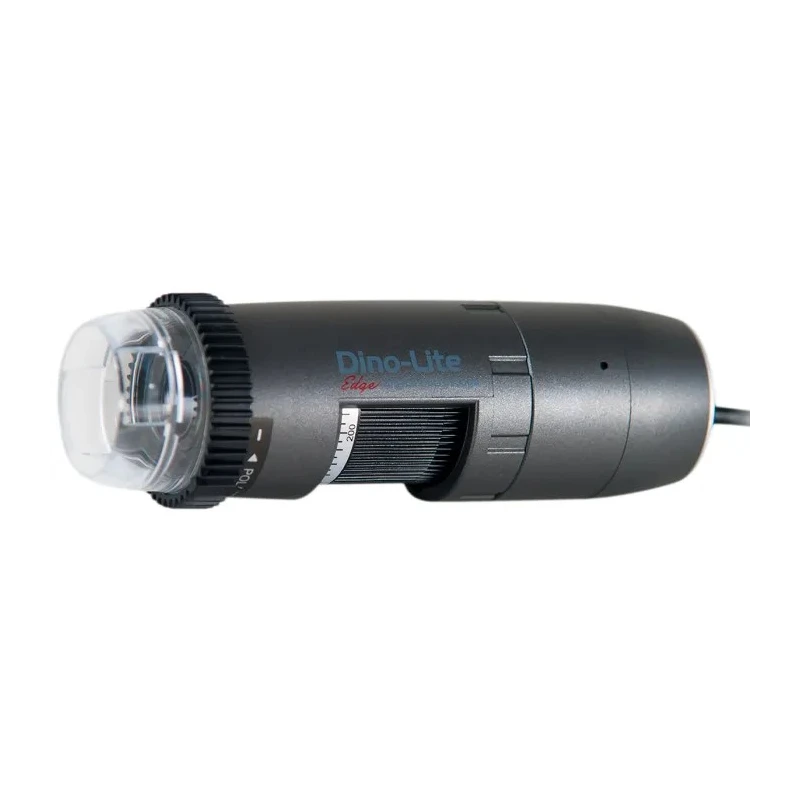

RS PRO Edge USB Digital Microscope 20-220X Magnification 1280 x 1024 Pixel CMOS Sensor AM4815ZT

The Dino-Lite Edge AM4815ZT handheld USB digital microscope combines advanced imaging technology with versatile design, delivering high-quality magnified images at 20 to 220 times magnification. Its 1.3 megapixel CMOS sensor captures vivid details at a resolution of 1280 x 1024 pixels, suitable for fine inspection in industrial, laboratory, quality control, and educational environments.

The built-in adjustable polarizer significantly reduces glare and reflections when examining shiny or reflective materials, enhancing image clarity. The Extended Dynamic Range (EDR) feature improves image quality by stacking exposures from different lighting conditions, revealing details in both shadowed and bright areas. The Extended Depth of Field (EDOF) function further enhances detail visibility by combining images from multiple focus planes.

Illumination is provided by 8 white LEDs, which can be switched on or off via the controlling software, adapting lighting conditions to the sample being observed. The glass lens with an anti-reflection coating ensures sharp focus and minimal distortion.

Connectivity is facilitated through a USB 2.0 interface compatible with a broad range of Windows operating systems, supported by the included DinoCapture 2.0 software. This software also features Automatic Magnification Reading (AMR), which records the precise magnification directly, eliminating manual interpretation and improving measurement accuracy.

The microscope includes multiple interchangeable caps - open, closed, diffuser, extension, and side light caps - to expand its applicability across various sample types and inspection scenarios. The package contains a carry pouch, software CD, calibration target, and a comprehensive user manual.

Manufactured with a durable composite housing and weighing approximately 100 grams, the compact design along with its advanced features makes the AM4815ZT ideal for precise digital microscopy in industrial testing, quality assurance, electronics inspection, forensic labs, and scientific research.

Sharp images with 1.3 megapixel CMOS sensor at 1280 x 1024 resolution. Adjustable polarizer to reduce glare on reflective surfaces. EDR feature stacks images at different exposures for enhanced tonal range. EDOF combines focus planes to increase depth of field clarity.

8 software-controlled white LED lights for optimized illumination. Automatic Magnification Reading (AMR) increases measurement accuracy. USB 2.0 interface compatible with Windows XP through 10. Includes multiple caps and calibration tools for versatile use.

Composite durable housing and portable handheld form factor. Ideal for industrial, laboratory, educational, and quality control applications. Explore EnvMart’s range of advanced digital Microscopes for precision inspection and laboratory use.
