Conductivity Mini Controller BL983313-0, 0–1999 µS/cm, 12VDC, Panel Mounted | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna Conductivity Mini Controller (0 - 1999 µS/cm) 12VDC - BL983313-0

Name: Hanna Conductivity Mini Controller (0 - 1999 µS/cm) 12VDC - BL983313-0
Brand: Hanna
SKU: 72107
Price: 257.74 USD
Availability: InStock



Category Conductivity Controller Brand Hanna

Specifications

Accuracy	±2% F.S.
Power Supply	12 VDC adapter (included)
Calibration	Manual, with CAL trimmer
Model	BL983313-0
Dosing Relay	Maximum 2A (fuse protected), 250 VAC, 30 VDC
Conductivity Range	0 to 1999 µS/cm
Conductivity Resolution	1 µS/cm
Dosing Set Point	Adjustable from 0 to 1999 µS/cm

Key Features

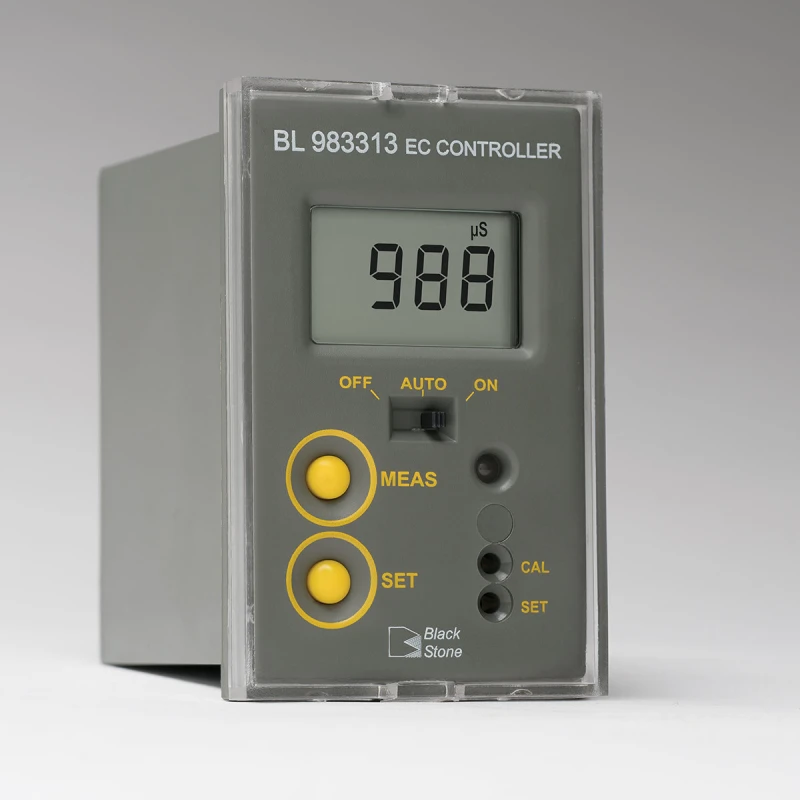

BL983313-0 Conductivity Mini Controller is a compact, panel-mounted process controller for precise electrolytic conductivity (EC) measurement in the 0 to 1999 µS/cm range with 12VDC power input.

Measures EC within a range of 0 to 1999 µS/cm.
Offers selectable automatic or manual dosing control modes for enhanced process versatility.
Equipped with a dosing relay activated when measurements exceed the set point.
Features an easy-to-read multicolor LED indicator for status monitoring.
Fire retardant and splash-resistant casing provides additional safety in harsh environments.
Manual EC calibration with CAL trimmer for accurate adjustment.
Automatic temperature compensation from 5 to 50°C improves accuracy.
Dosing relay supports up to 2A, 250 VAC/30 VDC, with fuse protection.
Clear protective cover shields panel face from dust and liquid ingress.

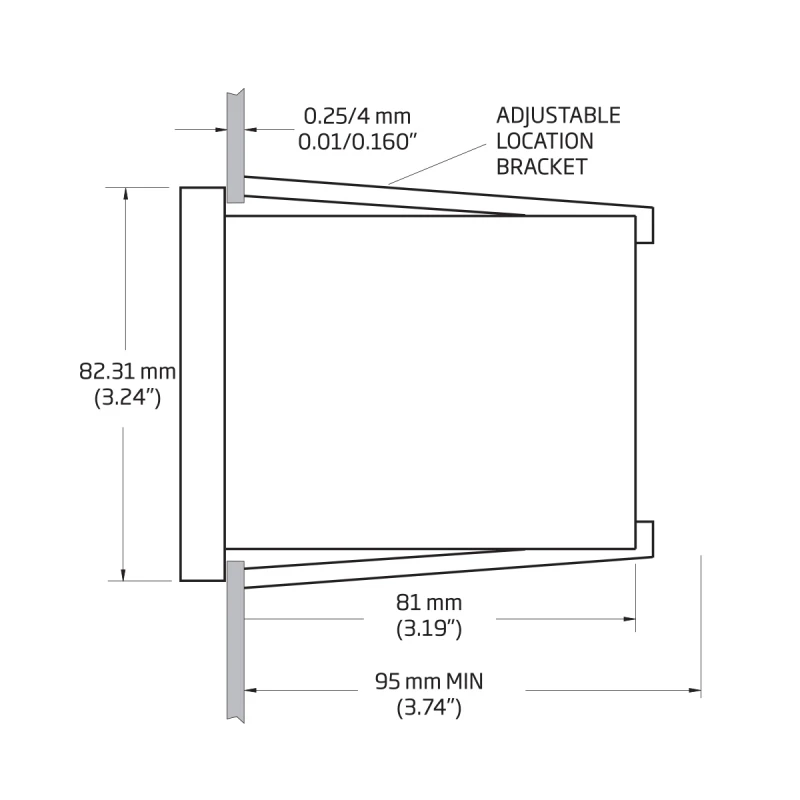

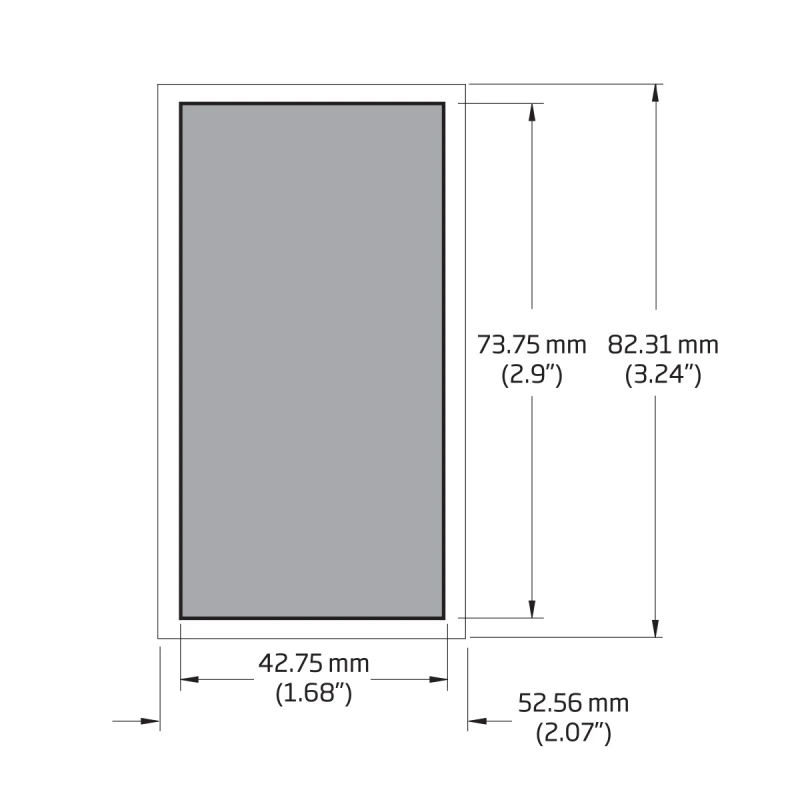

Compact dimensions: 83 x 53 x 99 mm for easy panel integration.

Product Description

The BL983313-0 Conductivity Mini Controller is a compact and reliable process controller designed for accurate measurement of electrolytic conductivity (EC) in the 0 to 1999 µS/cm range. Powered by 12VDC, this panel-mounted device is widely used in industrial, water treatment, and laboratory process control applications where continuous and precise monitoring is critical.

Users can choose between automatic or manual dosing operation modes, allowing fine control based on specific process requirements. In automatic mode, a dry contact relay is activated when the conductivity reading exceeds the user-programmed set point, which can trigger dosing pumps or solenoid valves. The clear, splash-resistant front cover and fire-retardant casing ensure safety, even in demanding environments.

Multicolor LED indicator changes status colors for instant operation feedback.
Manual EC calibration using the integrated CAL trimmer for fine-tuning.
Automatic temperature compensation from 5 to 50°C (β = 2%/°C).
Dosing relay: contact closes at measurement above setpoint, up to 2A (fuse), 250 VAC/30 VDC.
Adjustable set point from 0 to 1999 µS/cm maximizes process flexibility.
Clear protective panel cover shields from dirt and liquids.
Panel-mount design with dimensions of just 83 x 53 x 99 mm enables easy installation.
Low operating weight for versatile panel layouts (model “-0”: 200 g).
Suited for industrial, laboratory, water treatment, and chemical process automation.

This all-in-one compact controller is ideal for process, laboratory, and water treatment applications requiring cost-effective, reliable conductivity monitoring and dosing automation. Browse more Conductivity Controllers and process instruments in the EnvMart catalog.
