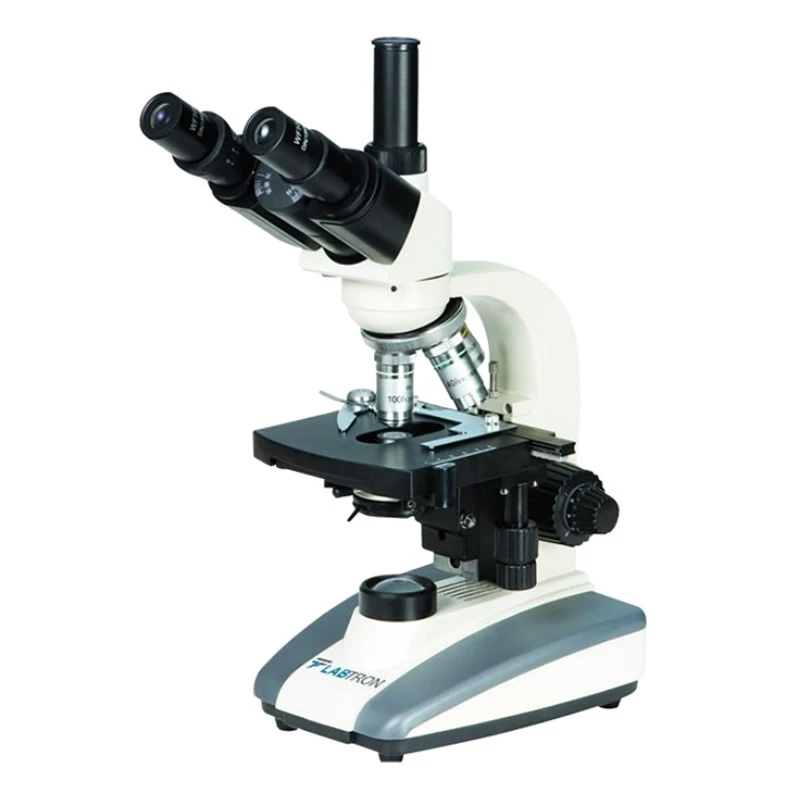

Labtron Biological Microscope LBM-F22 image-1

Free Delivery in India | Lowest Global Shipping Charges

Biological Microscope EBM-F22

Name: Biological Microscope EBM-F22
Brand: Generic Brand
SKU: ADGEE
Price: 69.5 USD
Availability: InStock



SKU ADGEE Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Model	LBM-F22
Optical System	Finite Optical System
Gross Weight	6 kg
Type of Product	Microscope
Condenser	Abbe N.A.1.25 condenser with iris diaphragm and filter
Illumination	Halogen Bulb 6 V/20 W / AC 220 V/110 V
Focusing	Coaxial Coarse and Fine Focusing / Scale Value 0.002 mm / Focusing Range — 30 mm
Eyepiece	Widefield WF 10X/18 mm
Objective	4 achromatic objectives — 4X / 10X / 40X (Spring) / 100X (Spring / Oil)
Viewing Head	Compensation Free trinocular Head / 30° inclined / 360° swiveling / interpupillary 55 to 75 mm
Nosepiece	Quadruple revolving nosepiece
Magnification Range	40X to 1000X
Stage	Double Layer Mechanical Stage / 135×135 mm
Packaging Dimension (W×D×H)	325×215×460 mm
Stage Movement	70×30 mm

Key Features

A finite optical system comprised microscope with 40X to 1000X of magnification range
30° inclined, 360° swiveling compensation free trinocular head
WF10X/18 mm eyepiece and 4 achromatic objectives for better and fine observation
Quadruple revolving nosepiece, easy power changing rotation
Abbe N.A.1.25 condenser with iris diaphragm and filter
Coaxial coarse and fine focusing with Rack and Pinion mechanism
Halogen lamp as illumination source, long lifespan
Double layer mechanical stage with moving range of 70×30 mm
Smooth movement of observing slide
Ideal microscope to be used for biological specimen observation

Product Description

Biological Microscope LBM-F22 is a finite optical system-based microscope, featuring a 30° inclined, 360° swiveling compensation-free trinocular head. Equipped with WF10X/18 mm eyepiece and 4 achromatic objectives, it offers a magnification range of 40X to 1000X. Designed with a quadruple revolving nosepiece and Abbe N.A.1.25 condenser with iris diaphragm and filter, it includes coaxial coarse and fine focusing with a Rack and Pinion mechanism. Incorporated with a halogen lamp as the illumination source and a double-layer mechanical stage, it offers 70×30 mm stage movement for smooth observation.

Applications:

Biological microscope is used to observe cells, tissues, and other biological specimens across tissue analysis, forensics, cytology, hematology, molecular biology, and more.

Optional Accessories:

Eyepiece: WF16X, WF20X
Achromatic Objectives: 20X, 60X (S)
LED Illumination

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It features a finite optical system, which is designed for enhanced clarity and precision in observations.

The microscope is equipped with a widefield WF 10X/18 mm eyepiece, providing a comfortable viewing experience.

It includes four achromatic objectives: 4X, 10X, 40X (spring), and 100X (spring/oil).

The illumination source is a halogen bulb rated at 6 V/20 W, compatible with AC 220 V/110 V power supply.

The double-layer mechanical stage allows for a movement range of 70×30 mm, facilitating smooth slide observation.

The packaging dimensions are 325 mm in width, 215 mm in depth, and 460 mm in height.

The gross weight of this model is 6 kg, making it manageable for laboratory use.

It features a compensation-free trinocular head that is inclined at 30° and can swivel 360°, accommodating various viewing angles.

It is suitable for observing cells, tissues, and other biological specimens, and is applicable in fields such as tissue analysis, forensics, and molecular biology.

Yes, optional accessories include eyepieces (WF16X, WF20X) and additional achromatic objectives (20X, 60X (S)) with LED illumination.
