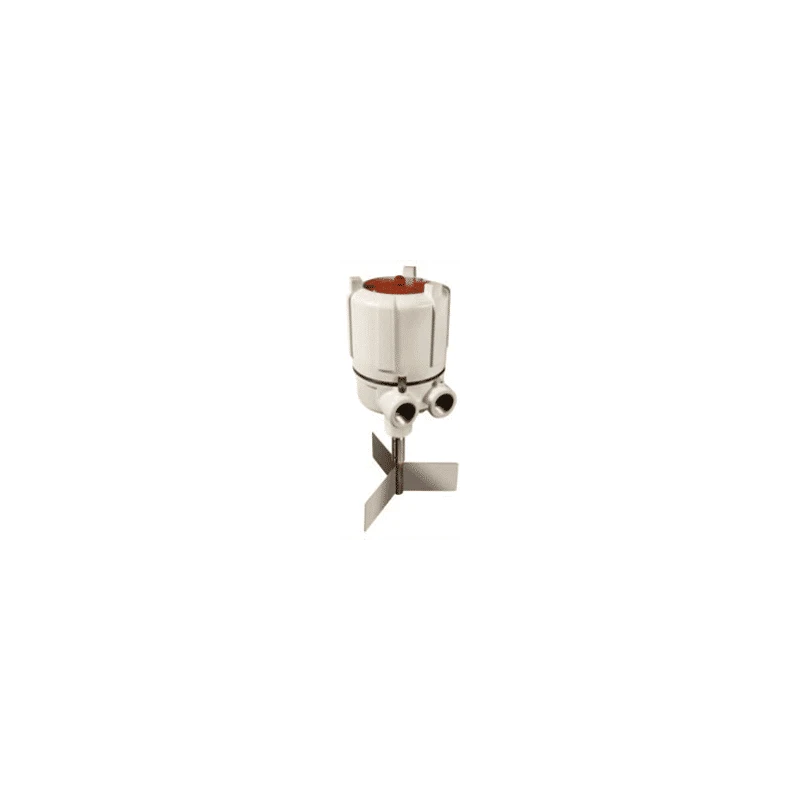

Rotary Paddle Level Switch
Specifications
| Power Consumption | Max 3 W @ 24 VDC |
|---|---|
| Brand | EIP Enviro |
| Process Pressure | -0.2 10 bar |
| Supply Voltage (V) | 24 VDC/ 110 VAC/ 230 VAC |
| Signal Output | 1 DPDT |
| Process Temperatures | -40to +85C |
| Hazardous Locations | Explosion Proof |
| De-energized Motor | Automatically goes into a resting state when paddle is covered to extend motor life |
| Fail-Safe | Confident process control for immediate status notification and visual status notification for mechanical failure or loss of power (this feature is model dependent) |
| Status Light | Solid for covered paddle| blinking for an uncovered turning paddle| and unlit for failed condition (this feature is model dependent) |
| Time Delays | Set 5 to 25 second delays in the alarm relay for covered or uncovered conditions to reduce false positives (this feature is model dependent) |
| Auto Sensing | No sensitivity setting or calibration required regardless of Material density |
| Built-in Slip Clutch | Protects the gear assembly from damage due to over rotation |
Key Features
- Reliable point level detection for bulk solids including powders, pellets and granular materials.
- Used in bins, silos, chutes and conveyors.
- Material density from 2 lb./cu. ft. to over 100 lb./cu. ft..
Product Description
Rotary Paddle Level Switches are a common point level indicator used for high-, mid- and low-level material detection in bins, tanks, and silos. Rotary Paddle Level Switches are wired to a horn, alarm, or light panel to send an alert when material reaches the desired level. Our standard and fail-safe Rotary Paddle Level Switches can be fitted with a wide assortment of paddles and mounting plates. Extended Rotary Paddle Level Switches for top mounting applications for high level detection, extensions for side mounting through thick bin walls, and stainless steel process connections for corrosive materials ensure EIP has the right rotary for challenging applications. From its explosion-proof housing, to de- energized motor operation, a bi-directional, slip clutch, and a four-bearing drive shaft the BMRX is a rugged workhorse built for efficiency and longevity
- Feed, seed, grain, food, sand, gravel, concrete, aggregates, plastics, chemicals, coal and many other materials.
