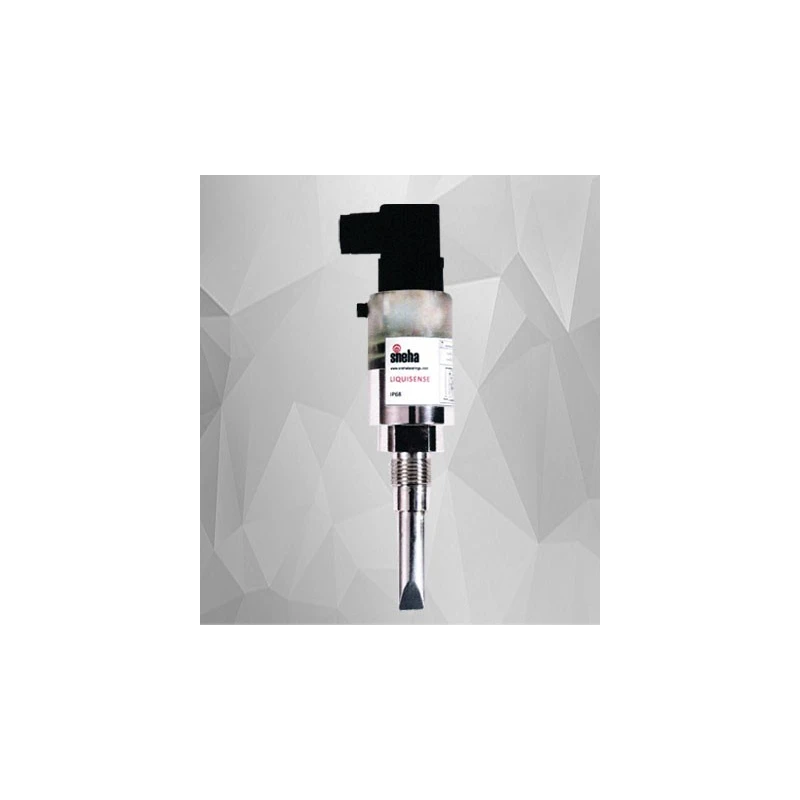

Liquid Point Level Switches
Specifications
| Output | PNP open collector limited to 100 mA max. and momentary short circuit protected |
|---|---|
| Operating Voltage (V) | 15 t0 30 VDC |
| Housing | SS316 |
| Cable gland | PG9 |
| Fail safe mode | High / Low field selectable |
| Process connection | 1/2 or 3/4 or 1 BSP / NPT (M) |
| Terminal | DIN connector |
| Tolerable Ambient Temperature (ºC) | 20 to 60 C |
| Fork MOC | SS316 |
| Standard insertion length | 68 mm |
| Extended insertion length | 1500 mm |
| Switching indication | Blue (Normal)| Yellow (Material status)| Red (Alarm). |
| Resonant frequency in air | 1.8 KHz |
| Max. viscosity of liquid media | 10|000 Cst. |
| Min. Density of liquid media | 0.7 g /cc |
| Max. temperature of liquid media | 80 C |
| Max. temp.of media with standoff | 150 C |
| Max. pressure in vessel | 10Kg / sq. Cm |
Key Features
- Compact size with integral electronics
- No calibration required so plug and play
- No moving parts so no wear and tear
- Open collector PNP output
- Fork made of non-corrosive stainless steel with highly polished tines so suitable for pharmaceutical and food grade applications.
Product Description
LIQUISENSE is a compact and easy to install point level switch suitable for detection of wide variety of liquids. It is suitable for use in small vessels and pipelines where available space is at a premium. It is unaffected by electrical and physical properties of the media such as conductivity, dielectric constant, Foam, air bubbles, and turbulence. Wetted parts are made of highly polished non-corrosive stainless steel, making it suitable for pharmaceutical and food grade applications.
- IP 68 ingress protection
- Selectable fail safe mode
- LED indicators for status, alarm and normal operation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage for this unit ranges from 15 to 30 VDC.
The fork is made of non-corrosive stainless steel (SS316) with highly polished tines, suitable for pharmaceutical and food grade applications.
It can handle a maximum viscosity of 10,000 centistokes (Cst).
The standard insertion length is 68 mm, while the extended insertion length is 1500 mm.
It features a PNP open collector output limited to 100 mA maximum and is momentary short circuit protected.
The maximum temperature of the liquid media is 80°C, and it can withstand up to 150°C with a standoff.
The minimum density of liquid media that this switch can detect is 0.7 g/cc.
The process connection sizes available are 1/2, 3/4, or 1 BSP/NPT (M).
The tolerable ambient temperature range for this model is from 20 to 60°C.
It uses a DIN connector for terminal connections.
