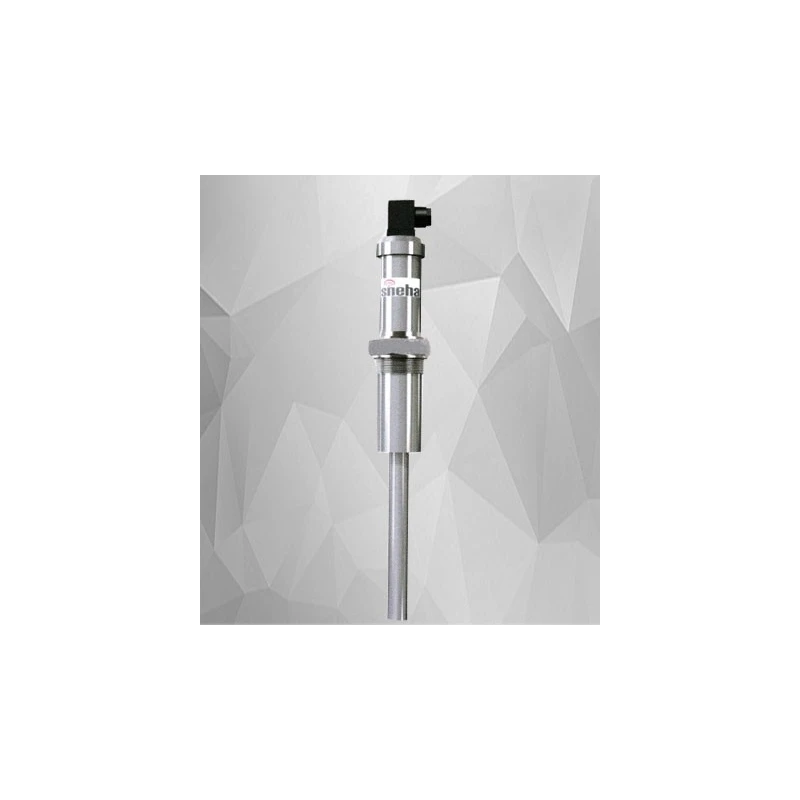

Vibrating Rod point Level Switches
Specifications
| Power Consumption | 3 VA Max. |
|---|---|
| Output | open collector PNP output as standard| current limited to 100ma |
| Power Supply | 15 to 30 V DC |
| Type | Electronics integral with probe |
| Process Pressure | 16 Bars |
| Indication | By LEDs| Yellow for status| Blue for Normal| and Red Alarm |
| Ambient Temperature (ºC) | -20 ºC to 60 ºC |
| Housing | SS316 |
| Mounting / Pipe extension M.O.C. | MS / GI / SS304 / SS316 as per requirement |
| Failsafe condition | High / Low field selectable. |
| Ingress Protection | IP68 |
| Process Temperature | Up to 150 deg C standard| 200 deg C on request |
| Probe length | 250 to 2000 mm max |
| Flanged | 2 ASA/ANSI /SS316 /SS304/MS as required |
| Cable connection | plug-in DIN connector PG9 |
| Mounting arrangement Screwed | 1 1/2 BSP / NPT/ SS316 /304 as required |
| Sensing vibrating Rod | SS316 |
| Resonant frequency of rod | 315 Hz approx |
Key Features
- Compact size with integral electronics
- No calibration required so plug and play
- No moving parts so no wear and tear
- Single element exposed to media for reliable sensing
- Open collector PNP output for external relay operation or for input to PLC
Product Description
VIBROSENSE is a single element vibrating rod specially designed for detecting maximum and minimum level in vessels filled with free flowing fine-grained or powdery material. VIBROSENSE being a single element device, it overcomes the limitation of material getting stuck in-between the tines of a vibrating fork wherein both the tines are exposed to the service material. VIBROSENSE can be used for detecting the level of service material having grain size less than 10mm. Variation of electrical parameters of the service material such as conductivity and dielectric constant do not affect its operation. It can be used successfully for level detection of powders and granules of plastic, silica, sand, cement, chalk, pulverized coal, PET, Food grains, minerals, animal feed, Sugar & wood chips etc.
- IP 68 ingress protection
- Selectable fail safe mode
- LED indicators for status, alarm and normal operation
