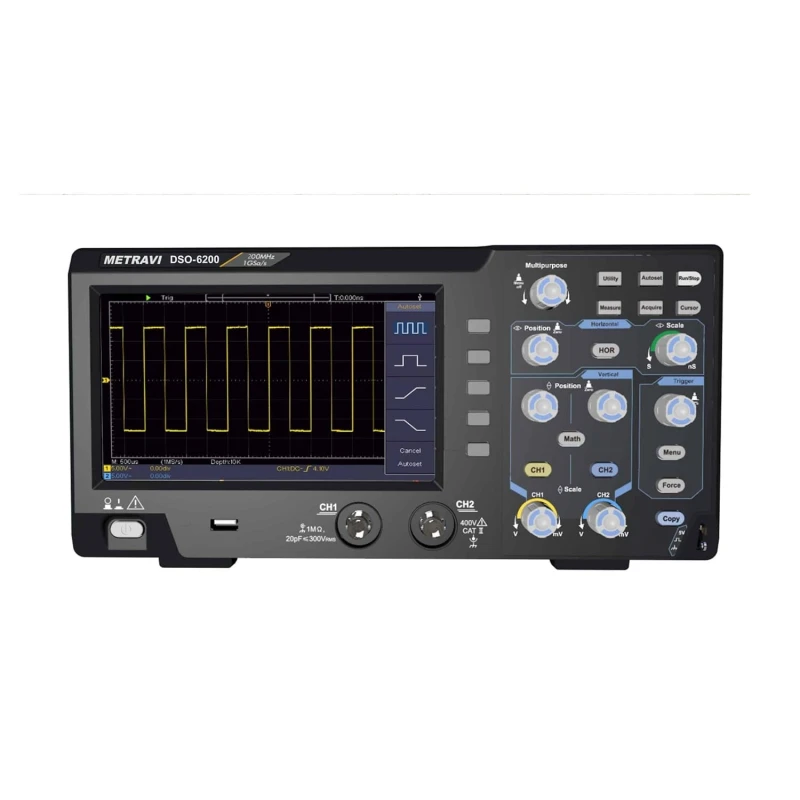

Metravi 200 MHz, Colour Display Digital Storage Oscilloscope DSO-6200
Specifications
| Country of Origin | India |
|---|---|
| Channel Isolation | 50Hz |
| Package Contents | Metravi DSO-6050 Digital Storage Oscilloscope |
| Interval Accuracy | ±(1interval+100ppm×reading+0.6ns) |
| Max Input Voltage | 400V(PK-PK DC+AC) |
| Power Consumption | Less than 15W |
| Display | 7" Colour LCD(800×480px) |
| Brand | Metravi |
| Power Supply | 100–240V AC 50/60Hz CAT II |
| Dimensions | 301×152×70mm |
| Model | DSO-6200 |
| Weight | 1.1Kg |
| Bandwidth | 200MHz |
| Communication | USB Host/Device |
| Input Impedance | 1MΩ±2%//20pF±5pF |
| Sample Rate | 1GS/s |
| Channels | 2 |
| Record Length | 10K |
| Fuse | 2A T-class 250V |
| Trigger Mode | Auto/Normal/Single |
| Input Coupling | DC/AC/GND |
| Vertical Resolution | 8 bits |
| DC Gain Accuracy | ±3% |
| Trigger Type | Edge/Video |
| Rise Time | ≤3.5ns |
| Frequency Counter | Yes |
| Trigger Level | ±5div |
| Horizontal Scale | 2ns/div–1000s/div(step1–2–5) |
| Vertical Sensitivity | 5mV/div–5V/div |
| Cursor Measurement | ΔV/ΔT |
| Probe Attenuation | 1X/10X/100X/1000X |
| Lf Response(Ac-3Db) | ≥10Hz |
| Sample Rate Accuracy | ±100ppm |
| Interpolation | sin(x)/x |
| Video Standards | NTSC/PAL/SECAM |
| Math Functions | +/−/×/÷/Invert/FFT |
| Waveform Storage | 16 waveforms |
Key Features
- Electronic circuits debugging
- Circuit testing
- Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
- Bandwidth : 50MHz - 200MHz
- 2-Channel
- Sample rate : 1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI and LabVIEW supported
Product Description
The Metravi DSO-6200 delivers high-speed performance with 200 MHz bandwidth and 1 GSa/s real-time sampling. With two independent channels, a large 7-inch color screen, and deep memory capacity, it provides accurate waveform capture and detailed signal diagnostics. It features advanced triggering, FFT analysis, X-Y plotting, and math operations. USB storage and PC connectivity allow for data export and analysis. Ideal for engineers and professionals working on RF circuits, embedded systems, or power electronics, the DSO-6200 is a dependable tool for any high-frequency application.
Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
