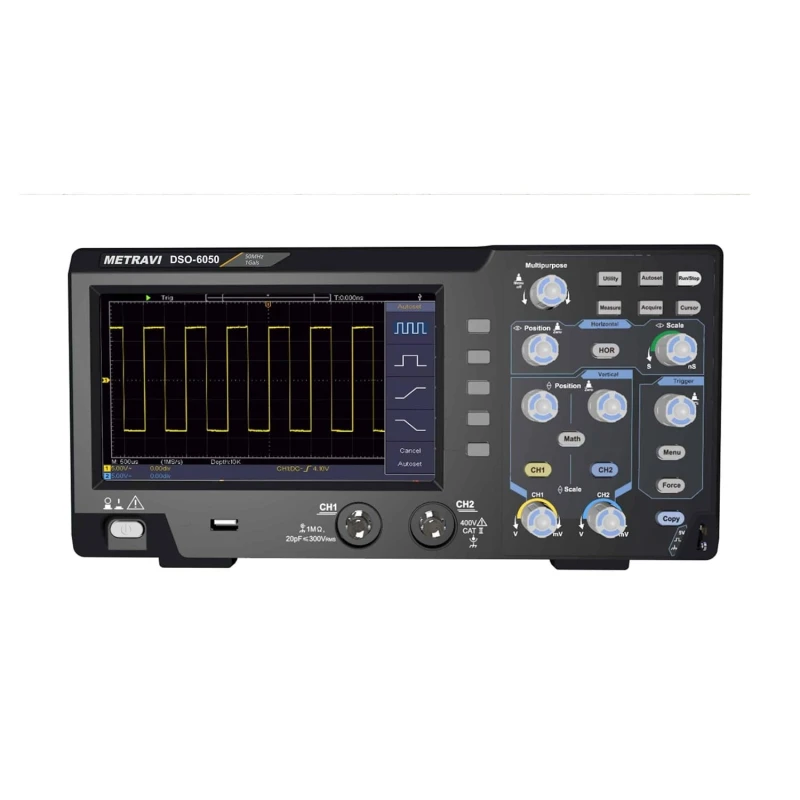

Metravi Digital Storage Oscilloscope DSO-6050
Specifications
| Country of Origin | India |
|---|---|
| Channel Isolation | 50Hz |
| Package Contents | Metravi DSO-6050 Digital Storage Oscilloscope |
| Interval Accuracy | ±(1interval+100ppm×reading+0.6ns) |
| Max Input Voltage | 400V(PK-PK DC+AC) |
| Power Consumption | Less than 15W |
| Display | 7" Colour LCD(800×480px) |
| Brand | Metravi |
| Power Supply | 100–240V AC 50/60Hz CAT II |
| Dimensions | 301×152×70mm |
| Model | DSO-6050 |
| Weight | 1.1Kg |
| Bandwidth | 50MHz |
| Communication | USB Host/Device |
| Input Impedance | 1MΩ±2%//20pF±5pF |
| Sample Rate | 1GS/s |
| Channels | 2 |
| Record Length | 10K |
| Fuse | 2A T-class 250V |
| Trigger Mode | Auto/Normal/Single |
| Input Coupling | DC/AC/GND |
| Vertical Resolution | 8 bits |
| DC Gain Accuracy | ±3% |
| Trigger Type | Edge/Video |
| Rise Time | ≤17.5ns |
| Frequency Counter | Yes |
| Trigger Level | ±5div |
| Horizontal Scale | 5ns/div–1000s/div(step1–2–5) |
| Vertical Sensitivity | 5mV/div–5V/div |
| Cursor Measurement | ΔV/ΔT |
| Probe Attenuation | 1X/10X/100X/1000X |
| Lf Response(Ac-3Db) | ≥10Hz |
| Sample Rate Accuracy | ±100ppm |
| Interpolation | sin(x)/x |
| Video Standards | NTSC/PAL/SECAM |
| Math Functions | +/−/×/÷/Invert/FFT |
| Waveform Storage | 16 waveforms |
| Lissajous Phase Difference | ±3° |
Key Features
- Electronic circuits debugging
- Circuit testing
- Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
- Bandwidth : 50MHz - 200MHz
- 2-Channel
- Sample rate : 1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI and LabVIEW supported
Product Description
The Metravi DSO-6050 Digital Storage Oscilloscope is a high-performance diagnostic instrument designed for accurate waveform analysis in electronics, R&D labs, and industrial troubleshooting. With a 50 MHz bandwidth and 1 GS/s real-time sampling rate, it delivers precise signal capture and detailed waveform visualization. The 7 inch high-resolution colour LCD ensures clear display of signals, making it easy to analyze voltage, frequency, and timing parameters. Equipped with dual channels, versatile trigger modes, and advanced waveform math functions including FFT, it supports comprehensive signal analysis. The oscilloscope offers wide vertical sensitivity and fast rise time, ensuring reliable measurements across various applications. With USB interface for data transfer and storage, along with multiple probe attenuation options, it enhances usability and flexibility. Ideal for engineers, technicians, and educators, the Metravi DSO-6050 is a dependable solution for circuit testing, signal debugging, and electronic diagnostics. Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Metravi DSO-6050 has a bandwidth of 50 MHz.
It features a sample rate of 1 GS/s, allowing for high-speed signal capture.
This model supports 2 channels for simultaneous signal analysis.
The maximum input voltage is 400V (PK-PK DC+AC).
It is equipped with a 7 inch colour LCD with a resolution of 800×480 pixels.
The power consumption is less than 15W.
The dimensions are 301 mm x 152 mm x 70 mm.
It offers Auto, Normal, and Single trigger modes for versatile signal capture.
The vertical sensitivity ranges from 5 mV/div to 5 V/div.
Yes, it features USB Host/Device communication for data transfer and storage.
It includes math functions such as addition, subtraction, multiplication, division, inversion, and FFT.
The weight of this oscilloscope is 1.1 kg.
