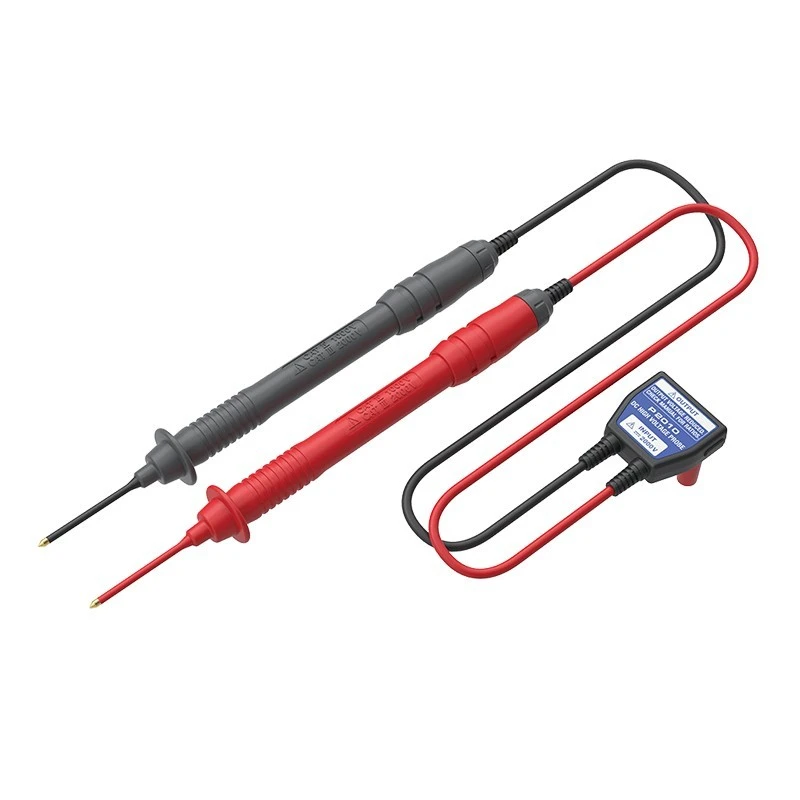

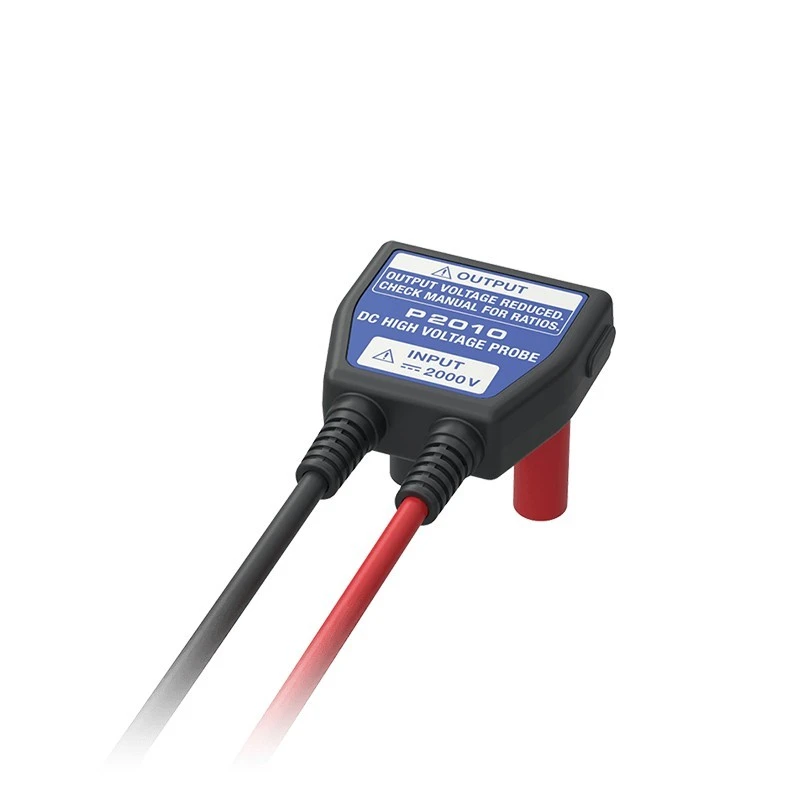

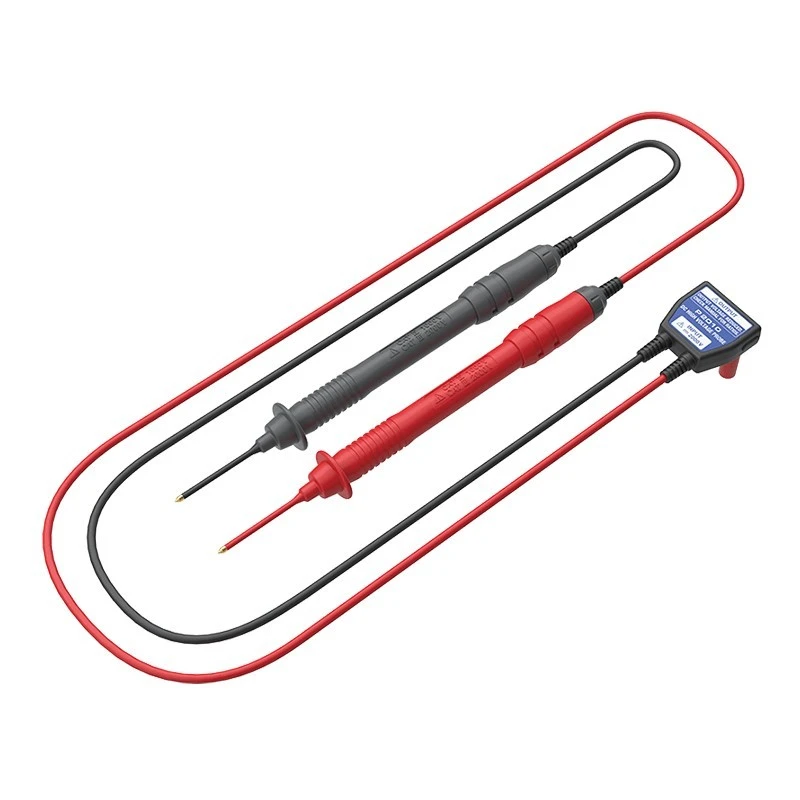

Hioki DC High Voltage Probe P2010
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | HIOKI |
| Output Terminal | 4 mm banana terminal |
| Model | P2010 |
| Operating Temp | -25°C to 65°C (-13°F to 149°F) |
| Accessories | Instruction Manual / Operating Precautions |
| Standards | EN 61010 |
| Humidity range | -25°C to 40°C - ≤80% RH / 40°C to 65°C - 80% to 25% RH (non-condensing) |
| Rated Voltage (V) | 1000 V CAT IV (12 kV transient) / 2000 V CAT III (15 kV transient) |
| Overload Protection | 2200 V DC/AC (INPUT H to L) / 600 V DC/AC (OUTPUT H to L) |
| Max Input Voltage (V) | 2000 V DC |
| Input Resistance | 20 MΩ ±5% (INPUT H to L / OUTPUT open) |
| Storage Temp & Humidity | -30°C to 70°C / ≤90% RH (non-condensing) |
Key Features
- Solar installations are categorized as CAT III environments, requiring measurement instruments with CAT III ratings for safety.
- The voltage in solar installations is increasing, necessitating instruments that can handle higher voltages (up to 2000V and beyond).
- The Hioki DC High Voltage Probe P2010 allows for safe measurement of voltages up to 2000 V when connected to compatible Hioki clamp meters or DMMs.
- Kits designed specifically for photovoltaic (PV) measurements are available.
Product Description
The voltage of the solar installations (also known as photovoltaic or PV installations) increases to reduce cost and improve the efficiency of solar equipment. As a result, it is important to select measuring instruments that support higher voltage measurement to protect the safety of inspection workers. The P2010 enables high voltage measurement up to CAT III 2000 V by simply connecting to a compatible Hioki clamp meter or digital multimeter (DMM).
Available on EnvMart, these Test Probes are designed for accurate and safe electrical testing. Hioki Test Probes offer high durability and precision, making them essential tools for electrical diagnostics and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki DC High Voltage Probe P2010 has a maximum input voltage of 2000 V DC.
The operating temperature range for the P2010 is -25°C to 65°C (-13°F to 149°F).
This model features a 4 mm banana terminal as its output terminal.
The humidity range for the Hioki P2010 is from -25°C to 40°C at ≤80% RH, and from 40°C to 65°C at 80% to 25% RH (non-condensing).
This probe complies with the EN 61010 standard.
The rated voltage for the Hioki P2010 is 1000 V CAT IV (12 kV transient) and 2000 V CAT III (15 kV transient).
The included accessory for the P2010 is an instruction manual along with operating precautions.
The input resistance of this model is 20 MΩ ±5% when measured from INPUT H to L with OUTPUT open.
The Hioki P2010 offers overload protection of 2200 V DC/AC (INPUT H to L) and 600 V DC/AC (OUTPUT H to L).
The storage temperature range for the P2010 is -30°C to 70°C with a humidity level of ≤90% RH (non-condensing).
The P2010 is designed for accurate and safe electrical testing, particularly in high voltage environments such as solar installations.
Yes, the P2010 can be connected to compatible Hioki clamp meters or digital multimeters (DMMs) for voltage measurements.
