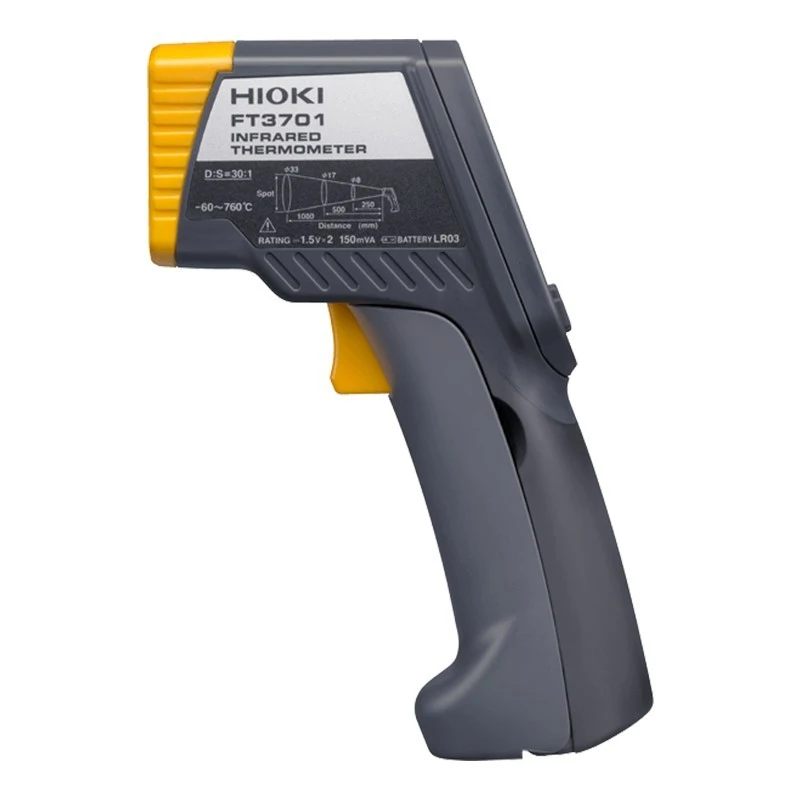

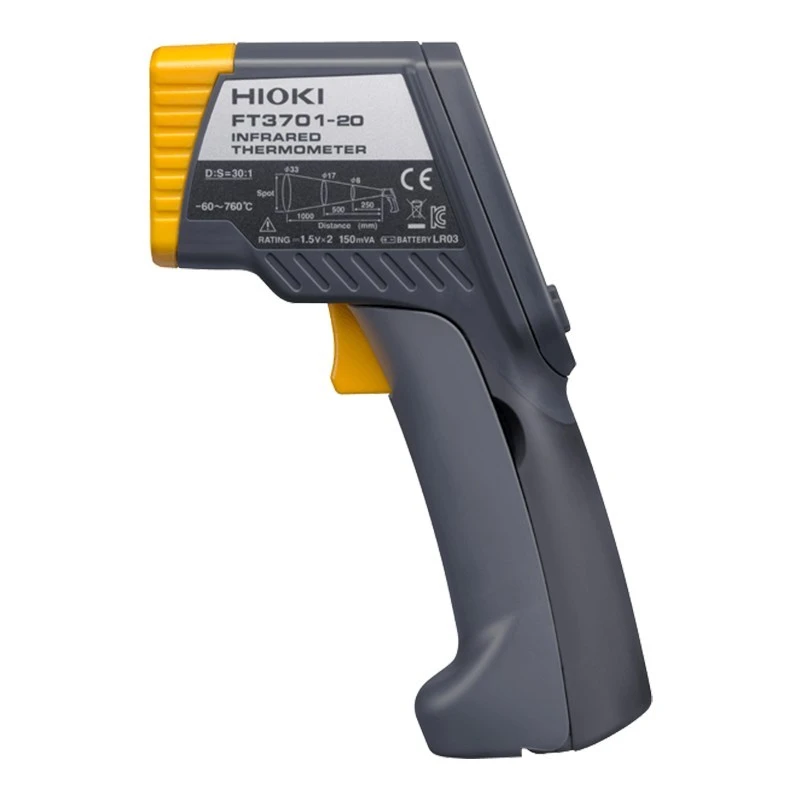

Hioki Infrared Thermometer FT3701-20
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | HIOKI |
| Power | 2× LR03 (AAA) alkaline batteries / 150 mVA / 140h use (laser / backlight / buzzer OFF) |
| Dimensions | 48 × 172 × 119 mm |
| Response time | 1 sec (90%) |
| Temperature range | -60.0˚C to 760.0˚C (-76˚F to 1400˚F) / 0.1˚C resolution |
| Wavelength | 8 to 14 µm |
| Model | FT3701-20 |
| Emissivity | ε equal to 0.10 to 1.00 (0.01 step) |
| Accessories | Instruction manual / 2× LR03 batteries / Carrying case |
| Weight | 256 g |
| Functions | Continuous mode / MAX/MIN/DIF/AVG / Alarm / Backlight / Auto power-off |
| Included Accessories | Instruction manual ×1 / LR03 alkaline battery ×2 / Carrying case ×1 |
| Sighting | Two-beam laser marker / Max 1 mW (class 2) / Red |
| Measurement Field | φ 100 mm at 3000 mm / Distance - Spot equal to 30 -1 |
Key Features
- Non-contact Infrared Thermometry: Measures temperature without physical contact, ideal for hazardous or inaccessible locations.
- Simple, One-Touch Measurement: Easy operation with a trigger mechanism.
- Data Hold Function: Holds the measured value after the trigger is released.
- Two-Point Laser Marker: Helps to reliably identify the measurement location.
Product Description
The Hioki FT3701 is a non-contact thermometer that utilizes infrared rays for temperature measurement, ensuring accurate targeting with a two-beam laser marker. This infrared temperature gun determines the surface temperature of an object by analyzing the emitted infrared energy, eliminating the need for direct physical contact.
Applications
- Measure the Temperature of a Motor Shaft
- Measuring Air Conditioner Outlet Temperature
Available on EnvMart, these IR Thermometers are designed for non-contact temperature measurement in various applications. Hioki IR Thermometers deliver high accuracy and reliability, making them ideal for temperature testing, maintenance, and quality control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki FT3701-20 has a temperature measurement range of -60.0˚C to 760.0˚C (-76˚F to 1400˚F) with a resolution of 0.1˚C.
The two-beam laser marker helps to reliably identify the measurement location, ensuring accurate targeting of the surface being measured.
It operates on 2× LR03 (AAA) alkaline batteries, providing approximately 140 hours of use with the laser, backlight, and buzzer turned off.
The dimensions of this model are 48 × 172 × 119 mm.
This infrared thermometer includes features such as continuous mode, MAX/MIN/DIF/AVG functions, an alarm, backlight, and auto power-off.
The response time for the Hioki FT3701-20 is 1 second to reach 90% of the final reading.
Included accessories are an instruction manual, 2 LR03 alkaline batteries, and a carrying case.
The wavelength range for the Hioki FT3701-20 is 8 to 14 µm.
The emissivity of this model can be set from 0.10 to 1.00 in 0.01 steps.
The weight of this infrared thermometer is 256 g.
This model is suitable for measuring the temperature of motor shafts and air conditioner outlet temperatures, among other applications.
The measurement field is φ 100 mm at a distance of 3000 mm, with a distance-to-spot ratio of 30:1.
