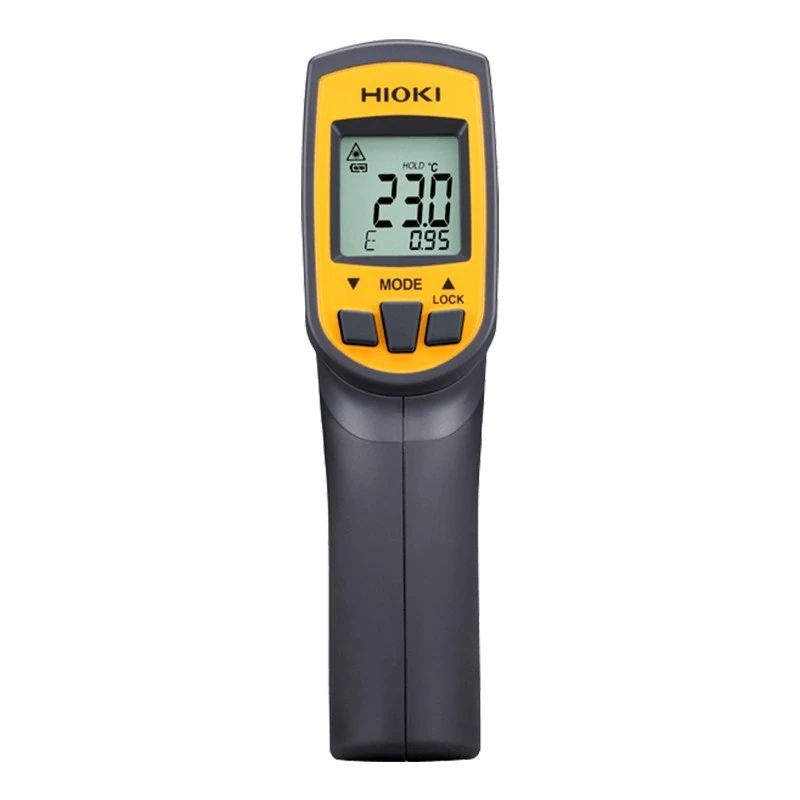

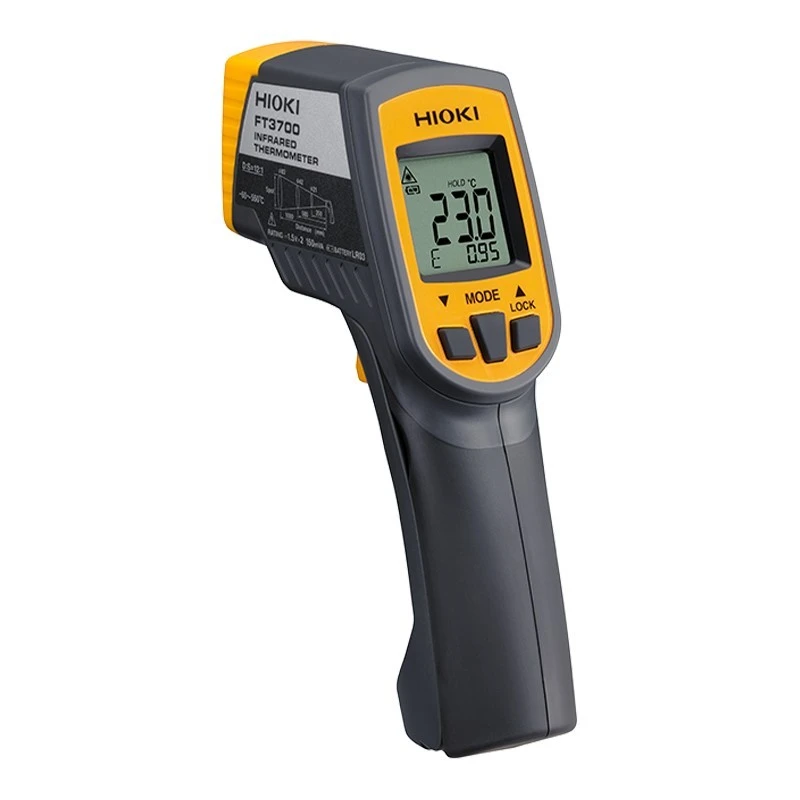

Hioki Infrared Thermometer FT3700-20
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | HIOKI |
| Power Supply | LR03 (AAA) alkaline battery ×2 / 150 mVA |
| Dimensions | 48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D |
| Response time | 1 sec (90%) |
| Model | FT3700-20 |
| Weight | 256 g |
| Functions | Continuous measurement mode / MAX/MIN/DIF (MAX - MIN)/AVG measurement / Alarm / Backlight / Auto power-off |
| Included Accessories | Instruction manual ×1 / LR03 alkaline battery ×2 / Carrying case ×1 |
| Measurement Temperature Range | -60.0˚C to 550.0˚C (-76˚F to 1022˚F) / 0.1˚C resolution |
| Measurement Wavelength | 8 to 14 µm |
| Thermal Emissivity Compensation | ε equal to 0.10 to 1.00 (0.01 step) |
| Measurement Field Diameter | ε equal to 0.10 to 1.00 (0.01 step) |
| Sighting | Two-beam laser marker / Max 1 mW (class 2) / Red |
Key Features
- Non-contact Infrared Thermometry: Measures temperature without physical contact, ideal for hazardous or inaccessible locations.
- Simple, One-Touch Measurement: Easy operation with a trigger mechanism.
- Data Hold Function: Holds the measured value after the trigger is released.
- Two-Point Laser Marker: Helps to reliably identify the measurement location.
Product Description
The Hioki FT3700 is a non-contact thermometer that utilizes infrared rays for temperature measurement, ensuring accurate targeting with a two-beam laser marker. This infrared temperature gun determines the surface temperature of an object by analyzing the emitted infrared energy, eliminating the need for direct physical contact.
Applications
- Measure the Temperature of a Motor Shaft
- Measuring Air Conditioner Outlet Temperature
- Industrial maintenance and troubleshooting
- HVAC diagnostics
- Electrical equipment temperature checks
- Automotive repair and maintenance
- Food processing and safety monitoring
- And various other applications requiring non-contact temperature measurement.
Available on EnvMart, these IR Thermometers are designed for non-contact temperature measurement in various applications. Hioki IR Thermometers deliver high accuracy and reliability, making them ideal for temperature testing, maintenance, and quality control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki FT3700-20 has a measurement temperature range of -60.0˚C to 550.0˚C (-76˚F to 1022˚F).
The two-beam laser marker helps reliably identify the measurement location, ensuring accurate targeting during non-contact temperature measurements.
It requires two LR03 (AAA) alkaline batteries, with a power consumption of 150 mVA.
The dimensions are 48 mm (W) x 172 mm (H) x 119 mm (D), and it weighs 256 g.
This model includes continuous measurement mode, MAX/MIN/DIF (MAX - MIN), AVG measurement, alarm, backlight, and auto power-off functions.
The response time is 1 second to reach 90% of the final value.
The thermal emissivity compensation is adjustable from ε equal to 0.10 to 1.00 in 0.01 steps.

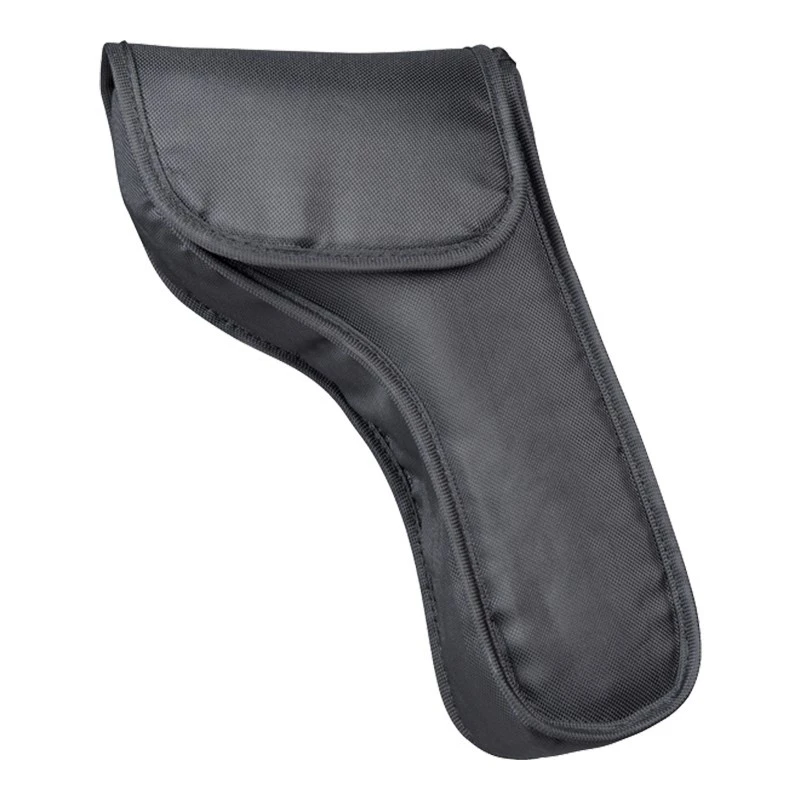

Included accessories are an instruction manual, two LR03 alkaline batteries, and a carrying case.
The measurement wavelength for the Hioki FT3700-20 is between 8 to 14 µm.
It is suitable for applications such as industrial maintenance, HVAC diagnostics, automotive repair, and food processing safety monitoring.
The data hold function retains the measured value even after the trigger is released, allowing for easier reading of the temperature.
The backlight feature allows for easy reading of the display in low-light conditions, enhancing usability in various environments.
