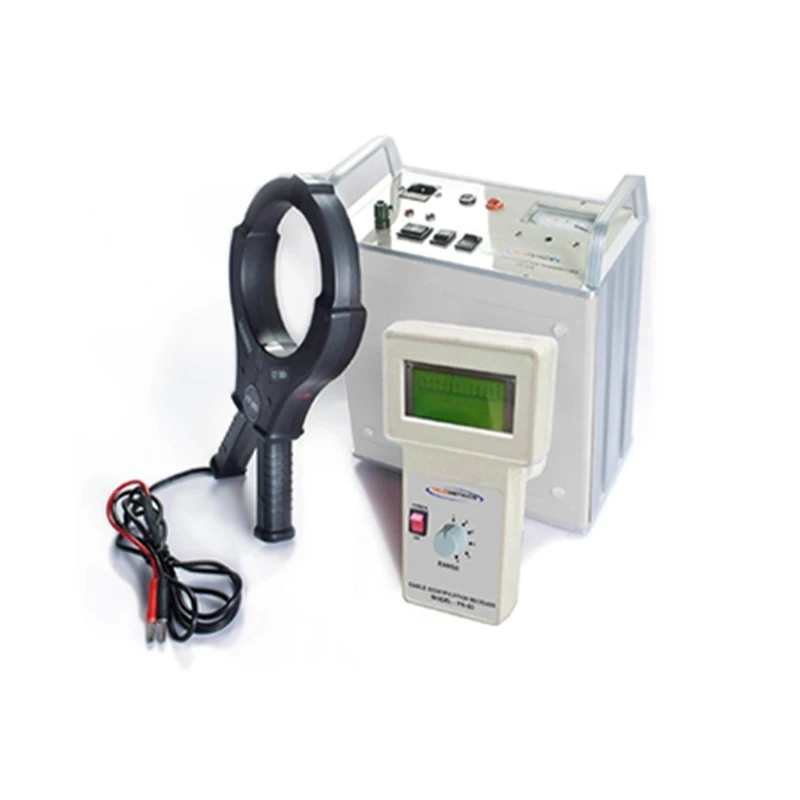

Motwane CI60S-D Digital Cable Identification system
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Model | CI60S-D |
| Transmitter Power Supply | 230V AC ± 10% / 50 Hz / Single phase or built-in Accumulator with internal charging supply |
| Transmitter Impulse Voltage (V) | 36 V |
| Transmitter Impulse Current | 60 Amp |
| Transmitter Impulse | 2.5s |
| Transmitter Impulse Sequence II | 2.5 and 1 s alternating |
| Transmitter Indication | Analog moving coil meter for output current / Charging Indication / Power on indication / Low battery Indication |
| Transmitter Operating Time | 6 Hrs. Continuous |
| Transmitter Working Temperature | 0°C ~ 55°C |
| Transmitter Storage Temperature | -55°C ~ 60°C |
| Transmitter Dimensions | 242(L) x 134(W) x 245(D) mm |
| Transmitter Weight | 5.3 kg Approx. |
| Receiver Sensitivity | 6 stages manually selectable from minimum to maximum. |
| Receiver Display | Digital graphical display 128x64 with back-lit sensing |
| Receiver Indication | Digital Arrow with Right & Wrong indication |
| Receiver Power supply | 9V battery (recommended Duracell) |
| Receiver Working Temperature | 0°C ~ 55°C |
| Receiver Storage Temperature | 5°C ~ 60°C |
| Receiver Dimensions | 235(L) x 130(W) x 50(D) mm |
| Receiver Weight | 0.5 kg Approx. |
| Tong Internal Diameter | 120 mm |
| Tong Dimensions | 268(L) x 160(W) x 35(D) mm |
| Tong Weight | 1.08 kg |
Key Features
- Non destructive, simple, and easy system to used and understand the operation.
- Identification of wanted cable from the bunch of cables in power network.
- Suitable for single and multi core armored or unarmored power cables.
- High Impulse current to offer reliable good result of identification.
- Cyclical pulse repetition for precise cable identification.
- Modulation control for better result.
- Operation on mains / internal battery supply.
- Manual selectable sensitivity control receiver from minimum to maximum.
- Rugged construction and easy to carry on site.
- Hand held, small, flexible receiver with Digital display 128x64
- High pulse DC current up to 60 Amp.
- Availability of special tongs as per customer's requirement.
- Complete system is offered in a robust molded carrying case.
Product Description
The Digital Cable Identification System is an essential tool for locating faults in underground power cable networks. It helps identify specific cables within a group, which is a common challenge for technicians and cable jointers. Using this system prevents the dangerous consequences of cutting the wrong cable. It is designed with safety features to ensure reliable and safe cable identification. The system can be used for various power cables, including low, medium, high, and extra-high voltage, single or multi-core cables in any power distribution network.
Application
Cable Identification System can be effectively used to identify any power cable low, medium, high or extra high voltage single or multi core cable of any grade, size and insulation in any power distribution networks companies.
Accessories
- Mains supply cord
- Output connecting cables
- Earthing cable
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
