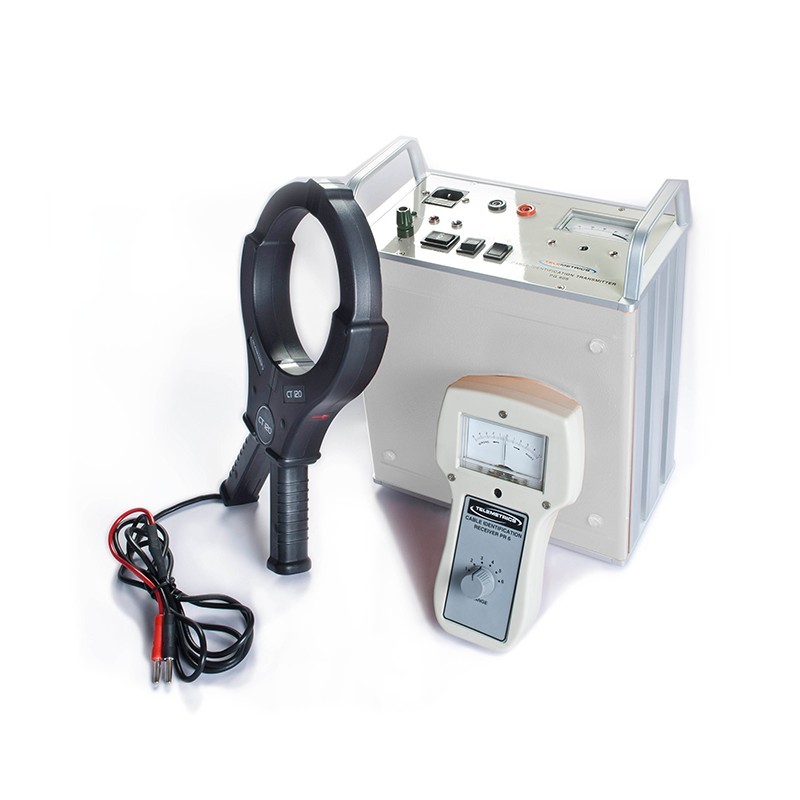

Motwane CI 60s Cable Identification System
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Model | CI 60s |
| Transmitter PG 60S Power Supply | 230V AC ±10% 50 Hz / Single phase or from built-in-Accumulator with internal charging supply |
| Transmitter PG 60S Impulse Voltage (V) | 36 V |
| Transmitter PG 60S Impulse Current | 60 Amp |
| Transmitter PG 60S Impulse Sequence I | 2.5s |
| Transmitter PG 60S Impulse Sequence II | 2.5 and 1 s alternating |
| Transmitter PG 60S Indication | Analog moving coil meter for output current Charging Indication Power on indication Low battery Indication |
| Transmitter PG 60S Operating Time | 6 Hrs. Continuous |
| Transmitter PG 60S Working Temperature | 0 Deg C~55 Deg C |
| Transmitter PG 60S Storage Temperature | -5 Deg C~60 Deg C |
| Transmitter PG 60S Dimensions | 242(L)×134(W)×245(D) mm |
| Transmitter PG 60S Weight | 5.3 kg Approx. |
| Receiver PR 6 Sensitivity | 6 stages manually selectable from minimum to maximum. |
| Receiver PR 6 Indication | Analog moving coil center zero Meter. |
| Receiver PR 6 Working Temperatue | Deg C~55 Deg C |
| Receiver PR 6 Storage Temperature | 5 Deg C~60 Deg C |
| Receiver PR 6 Dimensions | 197(L)×108(W)×68(D) mm |
| Receiver PR 6 Weight | 0.4 kg Approx. |
| Tongs CT120 Internal Diameter | 120 mm |
| Tongs CT120 Dimensions | 268(L)×160(W)×35(D) mm |
| Tongs CT120 Weight | 1.08 kg |
Key Features
- Identification of wanted cable from the bunch of cables in power network.
- Suitable for single and multi core armored or unarmored power cables.
- Impulse Voltage 36 V.
- Impulse current up to 60 Amp.
- Special tongs CT 120 & CT 150.
- Power Supply 230V AC + 10%, 50 Hz, Single phase or from built in-Accumulator with internal charging supply.
Product Description
The Cable Identification System is essential for fault location in underground power cable networks. It helps identify a specific cable within a bunch, which is a common challenge for technicians and cable jointers. The system is designed to be safe and reliable, preventing wrong cable identification and potential accidents. It can be used to identify any power cable (low, medium, high, or extra-high voltage, single or multi-core) in power distribution networks.
Application
Cable Identification System can be effectively used to identify any power cable low, medium, high or extra high voltage single or multi core cable of any grade, size and insulation in any power distribution networks companies.
Standard Accessories
- Mains supply cord
- Output connecting cables
- Earthing cable
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CI 60s Cable Identification System has an impulse voltage of 36 V and an impulse current of up to 60 Amp.
The transmitter requires a power supply of 230V AC ±10%, 50 Hz, single phase, or it can operate from a built-in accumulator with internal charging supply.
The transmitter measures 242 mm in length, 134 mm in width, and 245 mm in depth, with an approximate weight of 5.3 kg.
The receiver has 6 stages of sensitivity that are manually selectable from minimum to maximum.
The operating temperature range for the transmitter is from 0°C to 55°C, while the storage temperature range is from -5°C to 60°C.
The standard accessories include a mains supply cord, output connecting cables, and an earthing cable.
The receiver has dimensions of 197 mm in length, 108 mm in width, and 68 mm in depth, with an approximate weight of 0.4 kg.
This system can identify any power cable, including low, medium, high, or extra-high voltage cables, whether single or multi-core, armored or unarmored.
The tongs CT120 have an internal diameter of 120 mm, dimensions of 268 mm in length, 160 mm in width, and 35 mm in depth, with a weight of approximately 1.08 kg.
The transmitter features an analog moving coil meter for output current indication, along with charging, power on, and low battery indications.
The CI 60s Cable Identification System is manufactured in India.
