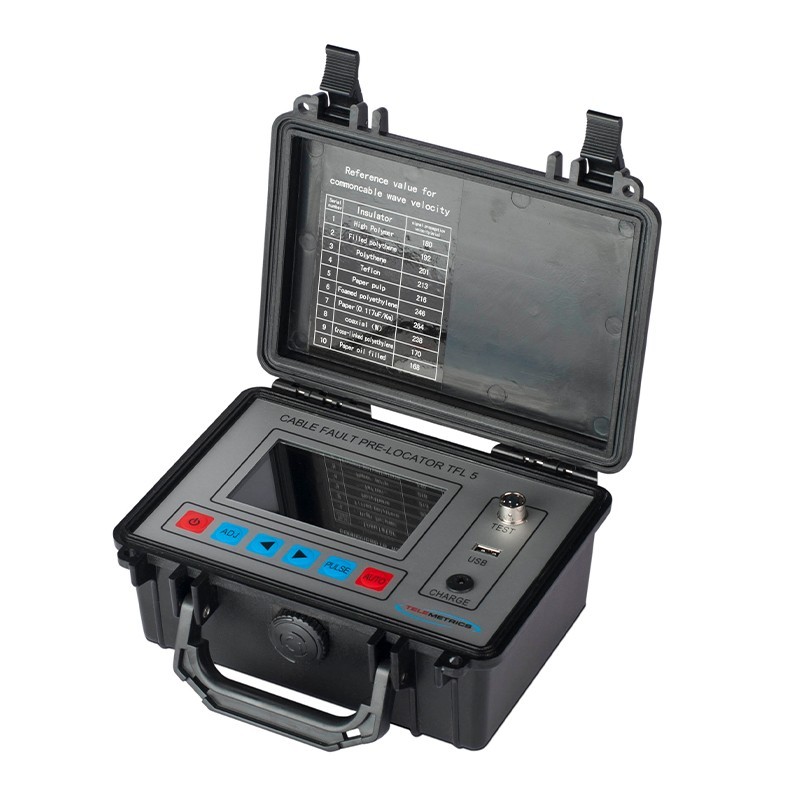

Motwane TFL 5 Cable Fault Pre locator

Name: Motwane TFL 5 Cable Fault Pre locator
Brand: Motwane
SKU: ADDYM
Price: 69.5 USD
Availability: InStock



SKU ADDYM Category Cable Tracker Brand Motwane Condition New

Specifications

Country of Origin	India
Resolution	1 Meter
Brand	Motwane
Power Supply	7.4 V Rechargeable Li-on battery
Dimension	212 (L) x 170 (W) x 90 (H) mm
Storage Temperature	-15~Deg~C~+55~Deg~C
Working Temperature	-15~Deg~C~+45~Deg~C
Model	TFL 5
Weight	1.27 Kg Approx
Operating Time	8 Hours
Charging Time	3 Hours
Charging Voltage (V)	230V AC ±10% / 50Hz / Single phase.
Measurement Mode	TDR (Time Domain Reflectometer)
PC Connectivity	USB
Impedance Matching	Automatic
Fault Distance Range	8 Km (240m / 480m / 1000m / 2000m / 4000m / 8000m)
Fault Accuracy	1 Meter
Pulse Width	40 ns-10 us
VOP Range	100-300
Sampling Speed	100 MHZ
Pulse Waveform	Two polarity pulse
Pulse Amplitude	0-30 V Adjustment adaptive
Gain Range	1-99
Display Readout	Color LCD and 480*280
Gain Adjustment	Automatic and Manual
Testing Accuracy	±1% x Cable length
Measurement Dead Zone	0 Meter
Auto Measurement Dead Zone	0 Meter

Key Features

TDR Mode.
Tests any type of telecom, coaxial, network or power cables.
Comparison facility of faulty cable with healthy.
Measuring range up to 8km. (Optional 16km & 32km).
TDR can test broken/open, short type of faults in all metallic cables.
Battery Operated.

Product Description

Cable Fault Pre-locator TFL 5 is a menu driven microprocessor based designed for easy use. It works on Time Domain Reflectometer principle (TDR/Pulse reflection) of measurement the exact fault location for open circuit and short circuit fault, cross fault, earth fault in any metallic power, telecom, signal and power plastic cables. It is compact, light weight and most suitable for field application. It uses state of the art digital technology for precise location of fault in underground metallic cables. The advanced circuitry utilizes high-speed sampling for better resolution of echo-grams.

Application

It is used to pre-locate short circuit, open circuit cable fault distance in power transmission, distribution, telecom and signal network cables.

Standard Accessories

Carrying case
Rechargeable battery charger / Adapter
Connecting test cables
Software CD
8GB Pen Drive
Instruction / User Manual

Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The resolution of the TFL 5 is 1 meter, allowing for precise fault location identification.

The dimensions of this model are 212 mm in length, 170 mm in width, and 90 mm in height, with an approximate weight of 1.27 kg.

It features USB connectivity for easy connection to a PC, facilitating data transfer and analysis.

The operating temperature range for this model is between -15°C and +45°C.

It can detect open circuit, short circuit, cross faults, and earth faults in metallic power, telecom, and signal cables.

The pulse width for this model ranges from 40 nanoseconds to 10 microseconds.

The fault accuracy is ±1% of the cable length, ensuring reliable fault location measurements.

Included accessories are a carrying case, rechargeable battery charger/adapter, connecting test cables, software CD, an 8GB pen drive, and an instruction/user manual.

The sampling speed of this model is 100 MHz, which aids in achieving better resolution of echo-grams.

It operates in Time Domain Reflectometer (TDR) mode, which is essential for measuring fault locations in cables.
